BB16051069 Solenoid Coil For Truck 24VDC 4422302221 4422312221 4422325221
BB16051069 Solenoid Coil For Truck 24VDC 4422302221 4422312221 4422325221
This solenoid coil is same with Wabco solenoid coil, which is popularly used in Mercedes Benz Truck. OEM number is 0025403997, 4422312221, 4724000012, 4422302221, 4422325221. Coil Voltage: 24VDC. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

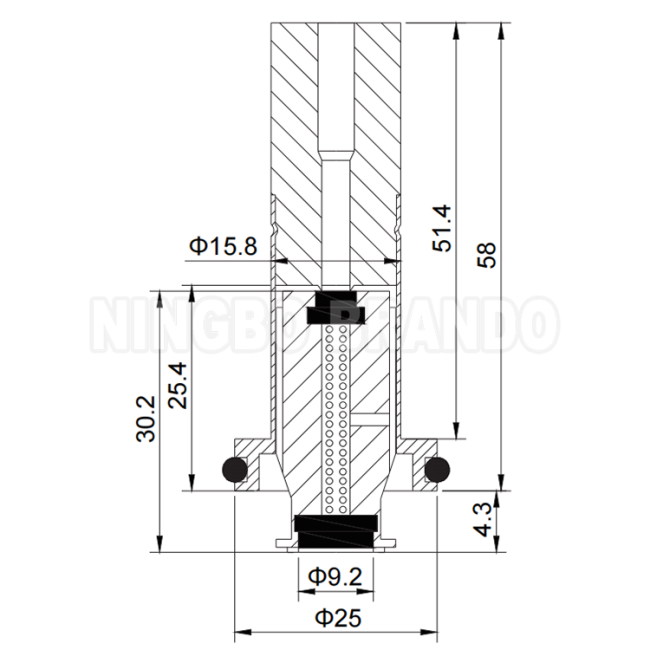

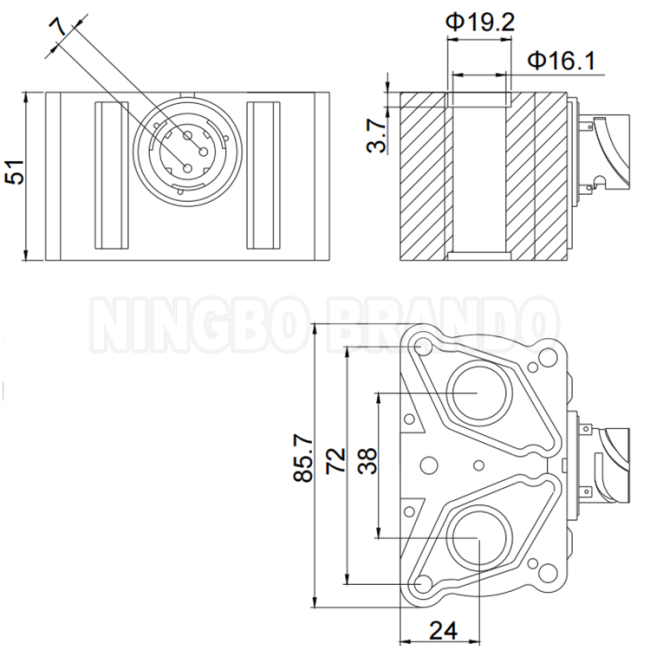

Dimension & Data of Truck Solenoid Coil, Armature:
|
BRANDO Model
|
BB16051069
|
|
Voltage
|
12VDC, 24VDC
|
|
Power
|
12W
|
|
Other voltage and power can be customized
|
|
|
Connector
|
3 PIN
|
|
BRANDO Model
|
BAPC315751414
|
|
Function
|
3 Way Normally Closed
|
|
Plunger Tube Material
|
Brass
|
|
Seal Material
|
NBR
|
Video of Solenoid Coil For Truck:
BRANDO Solenoid Valve Coils Production Video:
More Truck Solenoid Coils for you to choose:
 |
 |
 |
 |
 |
 |
 |
 |
