BB13040006 AMISCO Type Solenoid Coil EVI 5M/13 12V 24V 110V 220V
BB13040006 AMISCO Type Solenoid Coil EVI 5M/13 12V 24V 110V 220V
This solenoid coil is same with AMISCO solenoid coil EVI 5M/13. Solenoid Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Solenoid Coil Power: 10W, 13VA, 15VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

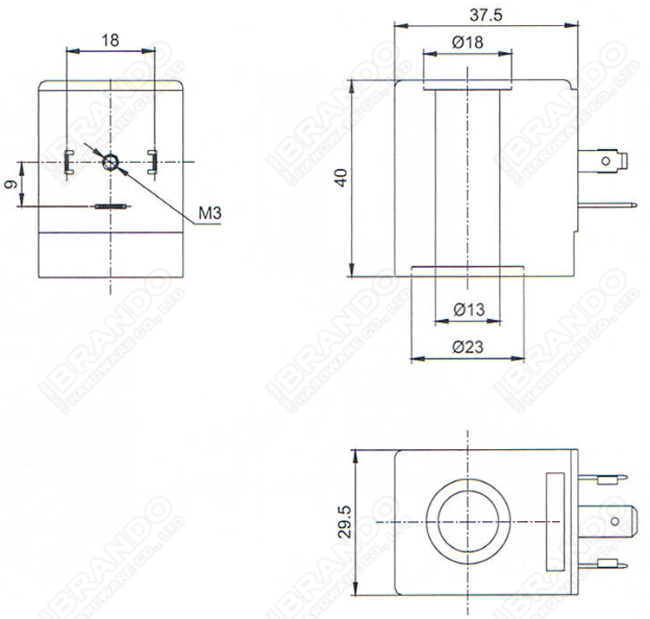

Dimension & Data of EVI 5M/13 Solenoid Coil, Armature:
|
BRANDO Model
|
BB13040006
|
|
Ordering Code
|
EVI 5M/13
|
|
Voltages
|
12VDC, 24VDC,
24VAC, 110VAC, 220VAC
|
|
Power
|
10W, 13VA, 15VA
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
BRANDO Model
|
BAPC313037505
|
|
Function
|
3 Way Normally Closed
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, EPDM, FKM
|
Video of EVI 5M/13 Solenoid Coil:
BRANDO Solenoid Valve Coils Production Video:

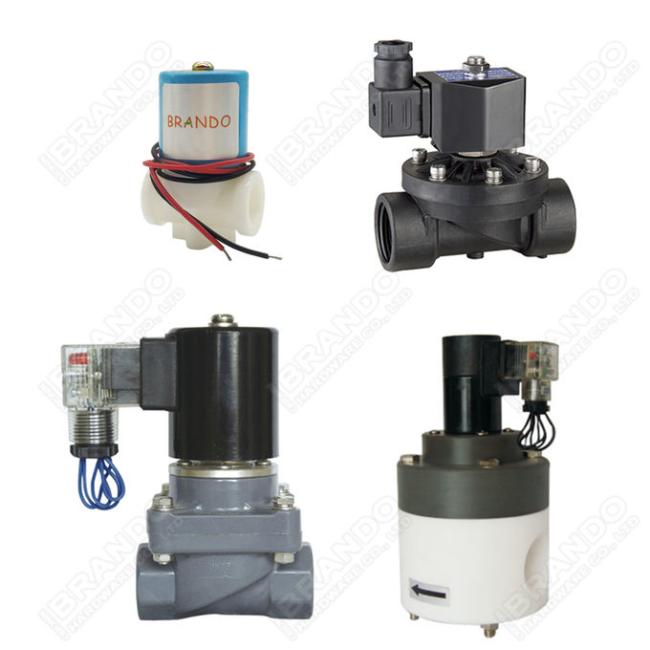

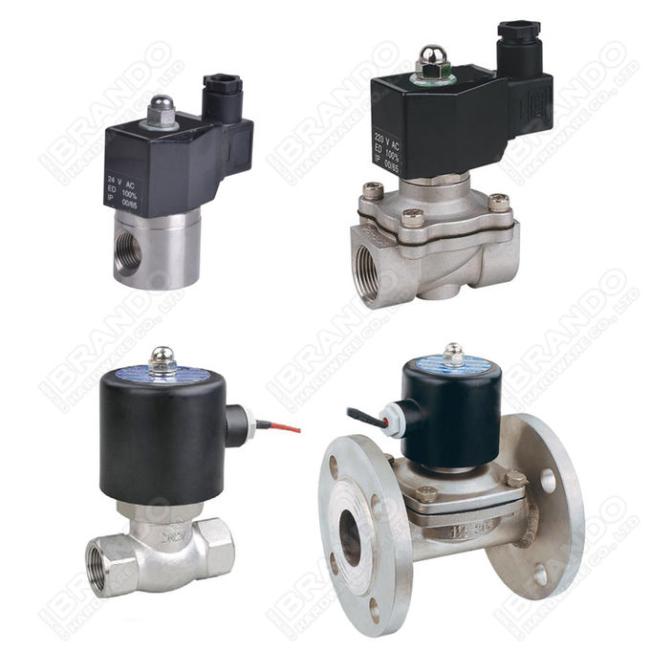

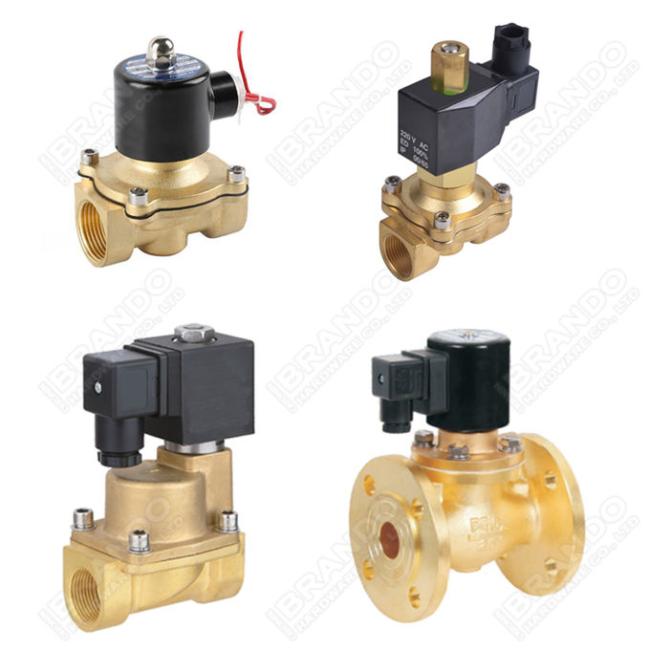

More Solenoid Valves for you to choose:
 |
 |
 |
