BB13241286 GC Type Solenoid Coil HS4GN16A24 HS4GN02A24 HS4GN04A24

Price Negotiable
Price: Negotiation
MOQ: 1000
Delivery Time: Negotiation
Brand: BRANDO
Product Description

BB13241286 GC Type Solenoid Coil HS4GN16A24 HS4GN02A24 HS4GN04A24



This HS4GN solenoid coil is popularly used in GC solenoid valves; the standard coil voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, and the standard coil power is 13VA, 10W, 14W, other voltage and power can be customized. The reference number of this coil is HS4GN01A24, HS4GN02A24, HS4GN03A24, HS4GN04A24, HS4GN07A24, HS4GN13A24, HS4GN14A24, HS4GN15A24, HS4GN16A24, HS4GN17A24, HS4GN18A24, HS4GN19A24, HS4GN24A24, HS4GN33A24.

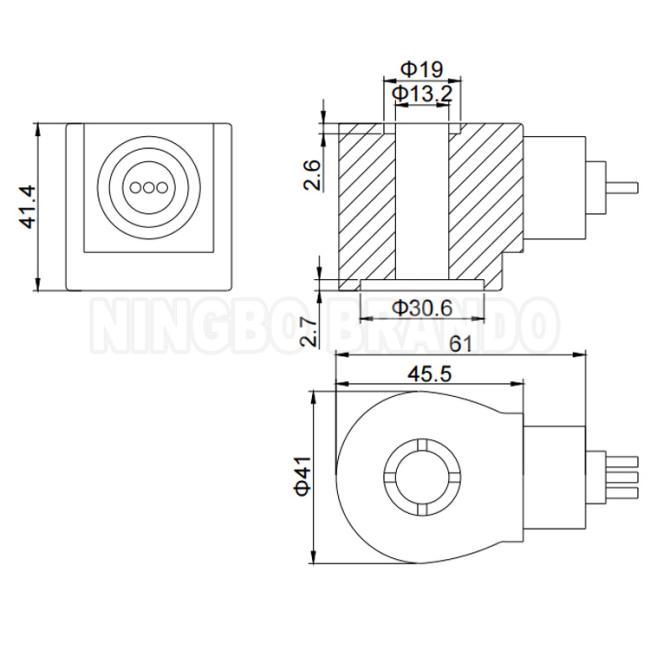

Technical Data:

BB13241286 BRANDO Model BB13241286
Voltage

12VDC, 24VDC,

24VAC, 110VAC, 220VAC

Power 13VA, 10W, 14W
Other voltage and power can be customized
Connection Type Flying Leads

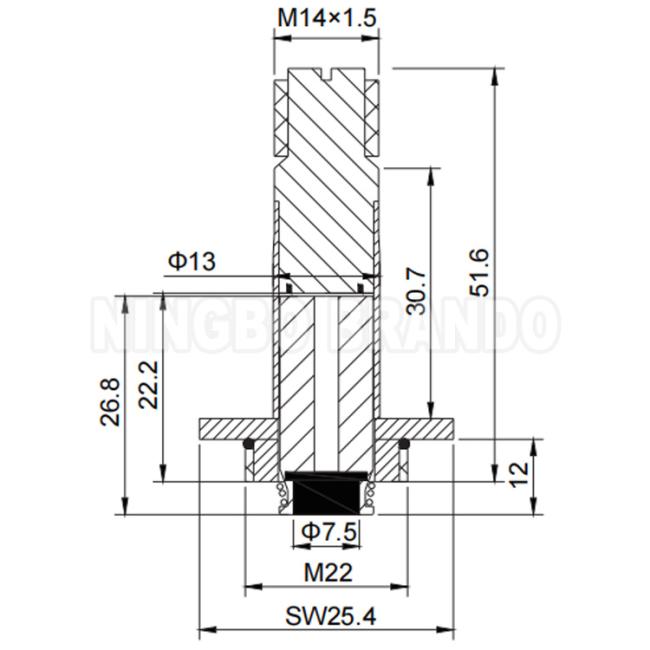

Fitted Armature:

BRANDO Model BAPC2130344103
Guide Tube Material SS304
Seal Material

NBR (standard)

EPDM, FKM (available)

Function 2 Way Normally Closed

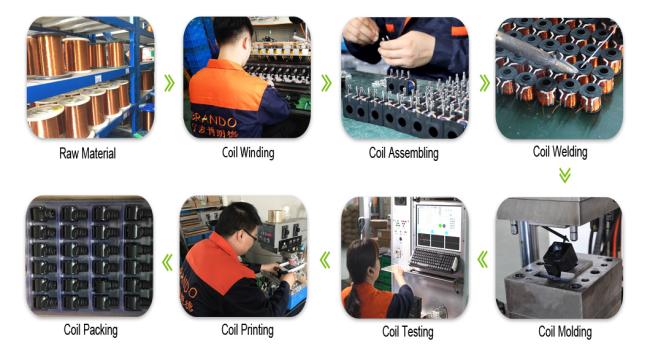

Our Production:

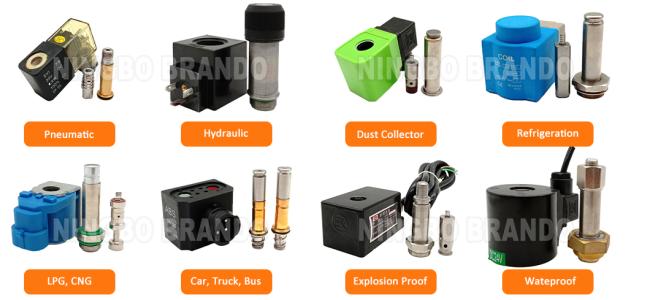

More Solenoid Coils and Armatures:



FAQ: How to choose a matching solenoid coil?



1. Voltage: The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
