120 bar High Pressure Normally Closed Brass Solenoid Valve 1/8'' 1/4'' 24V 220V

120 bar High Pressure Normally Closed Brass Solenoid Valve 1/8'' 1/4'' 24V 220V

This is a high pressure Solenoid Valve, 1/8'' or 1/4'' female threaded port size, 1 to 2.5mm orifice size, 0 to 120 bar working pressure, 2 way normally closed, direct acting, brass body, standard NBR seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

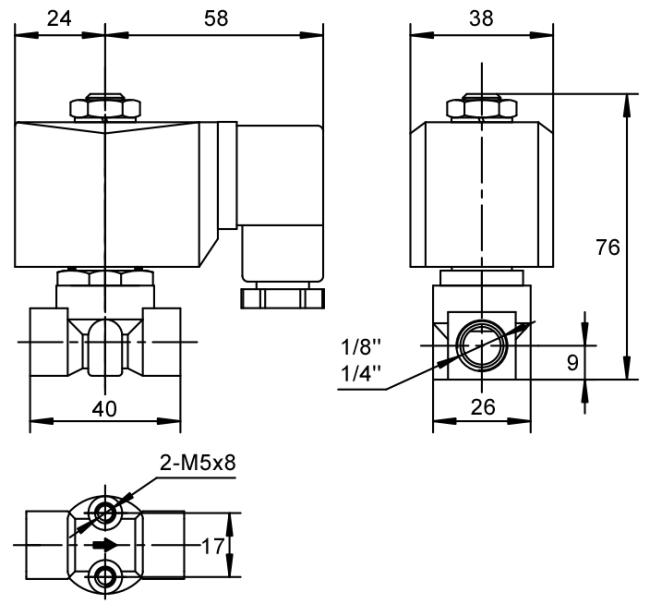

Main Dimension:

Technical Data:​

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
