BB14540548 Solenoid Valve Coil 12V 24V DC 110V 120V 220V 230V AC
BB14540548 Solenoid Valve Coil 12V 24V DC 110V 120V 220V 230V AC
This solenoid coil is popularly used for burkert solenoid valves. Solenoid Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Solenoid Coil Power: 9W, 16W, 22VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

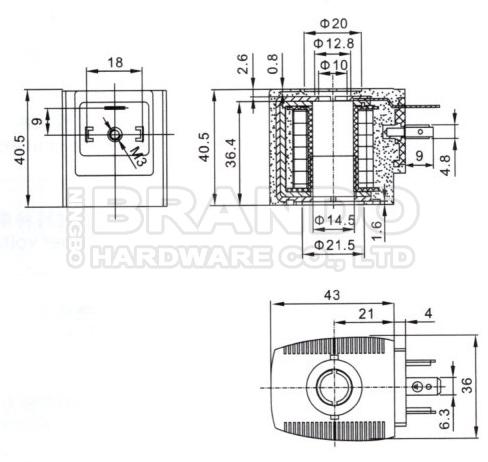

Dimension & Data of Solenoid Coil:
|
BRANDO Model
|
BB14540548
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|
Power
|
9W, 16W, 22VA
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Connector
|
DIN43650A
|
Video of Solenoid Valve Coil:
BRANDO Solenoid Valve Coils Production Video:

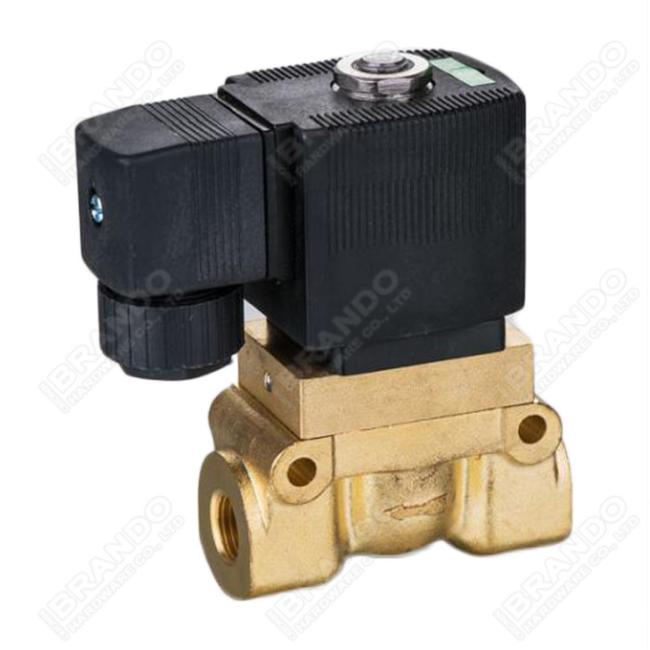

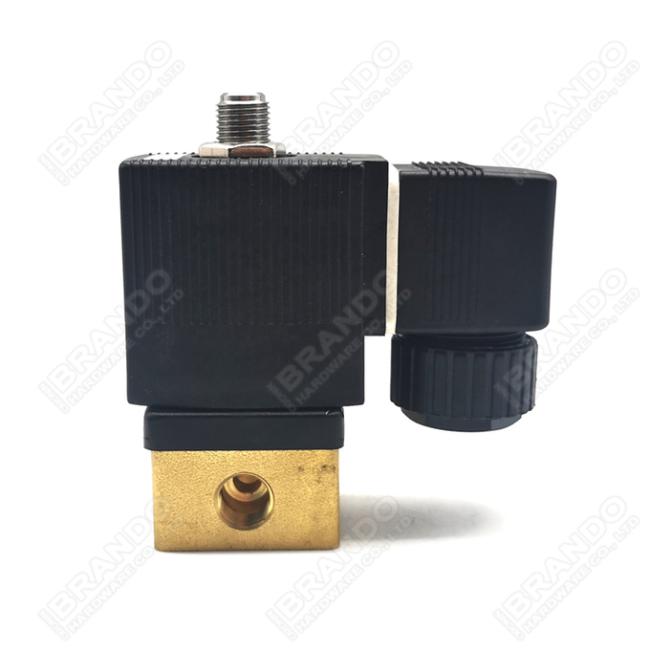

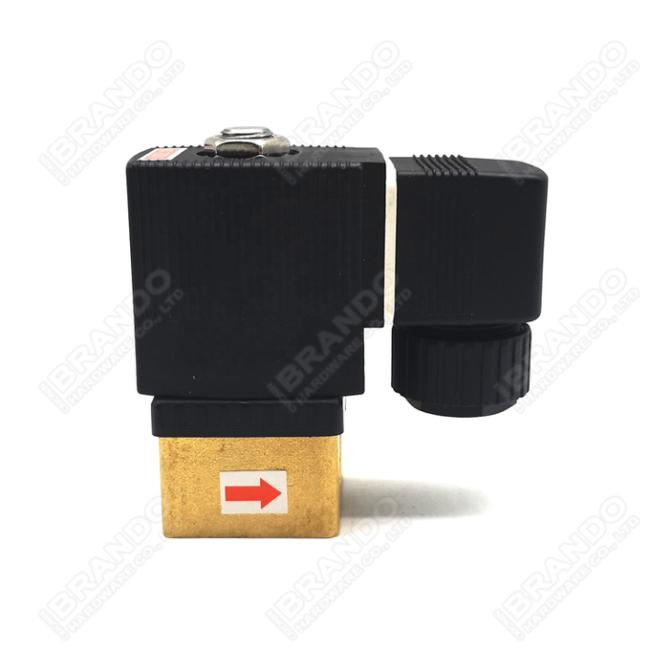

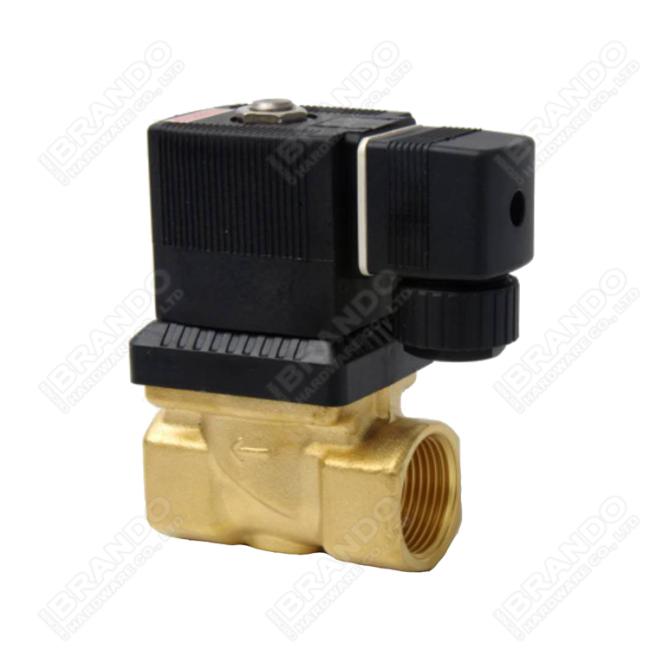

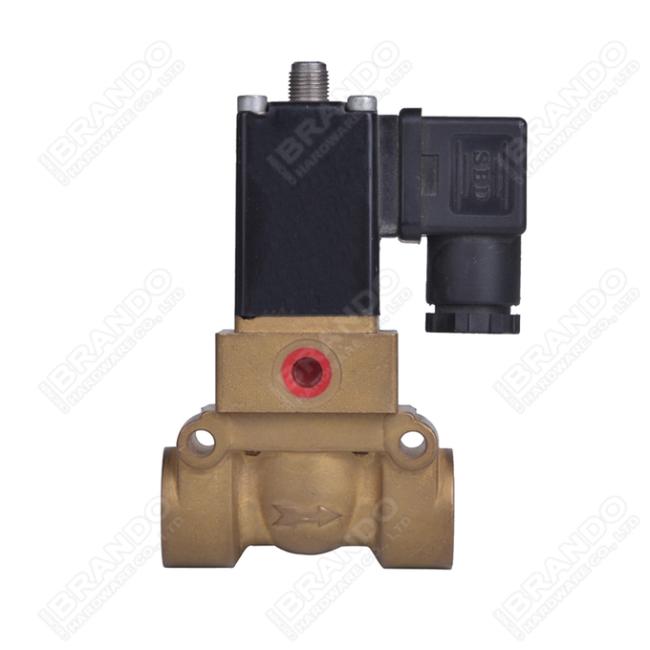

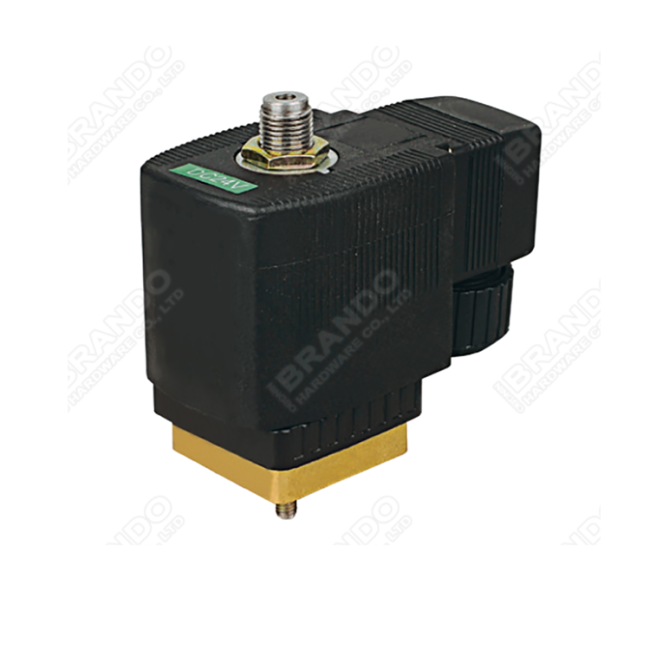

More Burkert Type Solenoid Valves for you to choose:
 |
 |
 |
| 6013 | 6014 | 6014 FLNSCH |
 |
 |
 |
| 0311 | 6213 | 0545 |
