15 bar 650cc/min Solenoid Pump For Espresso Coffee Machine 24V 120V 230V

A solenoid pump is a type of positive displacement pump that uses a solenoid to control the flow of liquids or gases. It operates on the principle of electromagnetism, where an electric current flowing through a wire coil generates a magnetic field that pulls or pushes a plunger or piston to regulate the flow of fluid. It is popularly used in coffee machine, steam iron, steam cleaning, medical equipments, etc.

Product Features:

1. Product Name: Solenoid Pump
2. Insulation Class: H
3. Inlet: Hose Barb (φ7.2mm)
4. Oultlet: G1/8''
5. Voltage: 110VAC, 220VAC
6. Fluid Temperature: 25℃
7. Ambient Temperature: 45℃
8. Flow Rate: 450cc to 1500cc/min
9. Max Pressure: 25 bar
10. On/OFF: 2/1min

Technical Data:

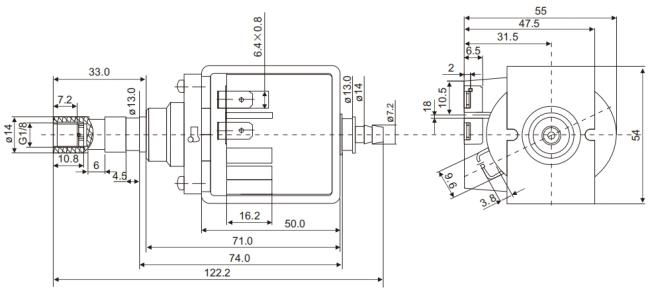

Main Dimension:

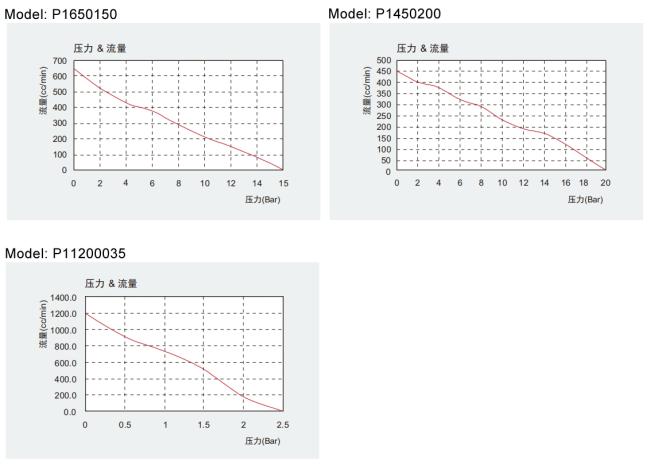

Flow Curve:

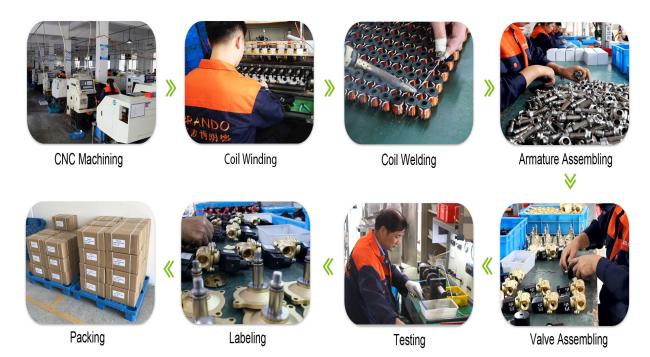

Our Production:

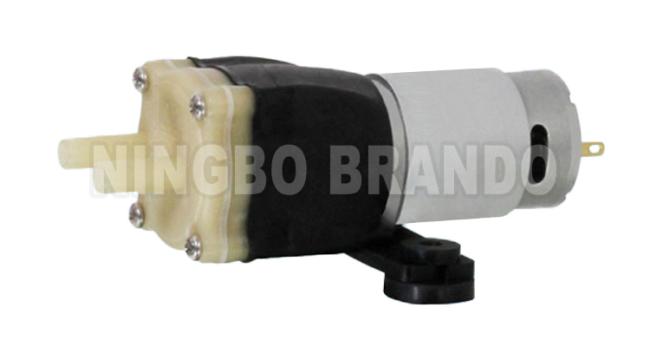

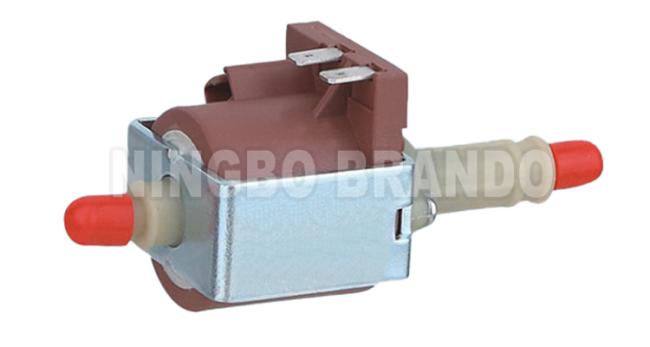

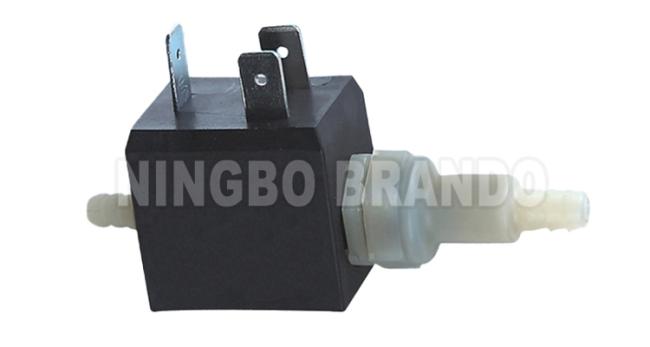

More Solenoid Pumps:

50 to 800cc/min	50 to 200cc/min	700 to 1200cc/min

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change

√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
