OLAB Type 3 Way Steam Solenoid Valve Armature For Coffee Maker Parts

A solenoid valve is an electrically controlled valve that shuts off or allows fluid flow from one point to the other. The valve consists of 3 main components: a solenoid coil, a solenoid armature and a valve body.

Solenoid coil consists of several turns of enameled wire, taking a cylindrical shape and hollow from the inside. When current flows through the coil, a corresponding magnetic field is produced.

Solenoid armature is the pressure-tight internal part of a solenoid valve. We produces its components from round material in brass, as well as from stainless steel using diverse alloys. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.

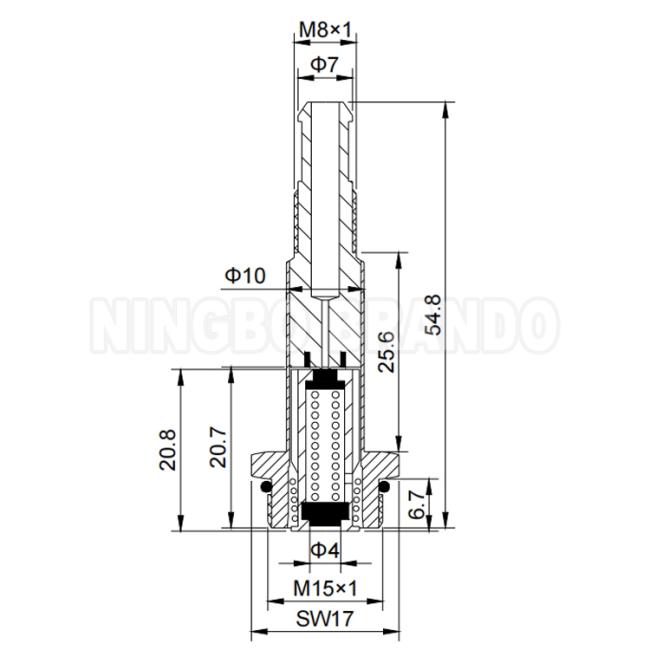

Technical Data:

	BRANDO Model	BAPC310029560
	Guide Tube Material	SS304
	Seal Material	FKM
	O-Ring Material	PTFE
	Function	3 Way Normally Closed

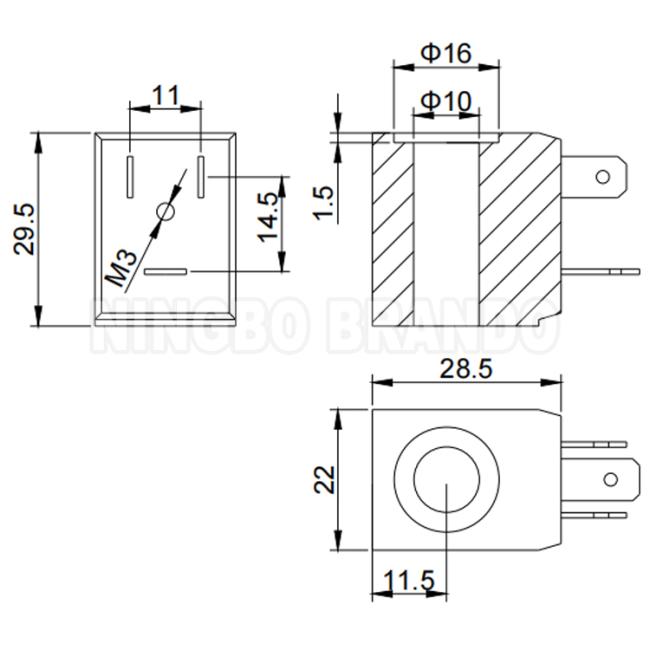

Fitted Coil:

	BRANDO Model	BB10029502
	Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
	Power	4-20VA, 3-6W
	Other voltage and power can be customized
	Connector	DIN43650B

Our Production:

More Solenoid Coils and Armatures:

FAQ: How to choose a right solenoid armature?

1. Working voltage: AC or DC
2. Function: 2/2 way or 3/2 way
3. De-energized state: Normal Closed, Normal Open or Divert
4. Stroke of the matched valve body
5. Valve’s orifice size
6. Working environment: working medium, temperature, pressure, etc
