170 bar High Pressure Normally Open Solenoid Valve 1/8'' 1/4'' 12V 24V 110V 220V

170 bar High Pressure Normally Open Solenoid Valve 1/8'' 1/4'' 12V 24V 110V 220V

Product Description:

1. Working Medium: Water, Air, Gas, Liquid, etc
2. Working Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
3. Working Pressure: 0 to 170 bar
4. Body Material: Stainless Steel 316
5. Seal Material: NBR, EPDM, FKM
6. Port Size: 1/8'', 1/4''
7. Orifice Size: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2mm
8. Function: 2 Way Normally Open
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Products:

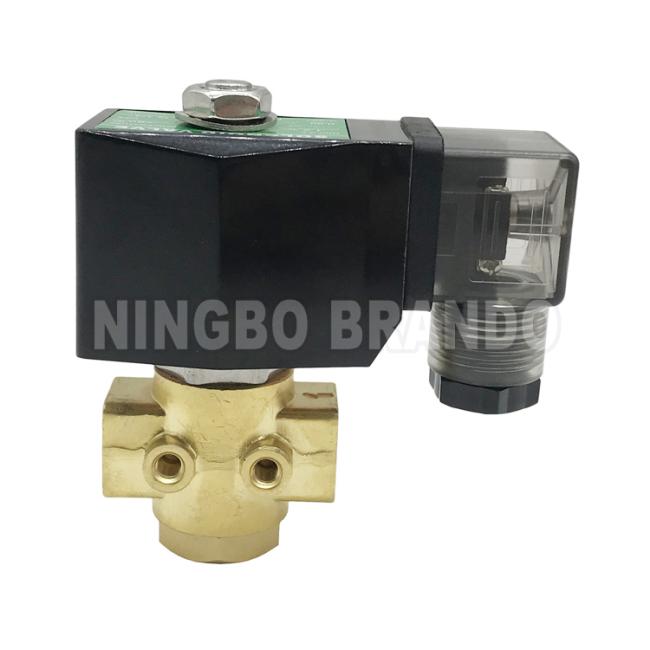

Max 40 bar (NO)	Max 40 bar (NO)	Max 40 bar (NO)	Max 90 bar (NO)
