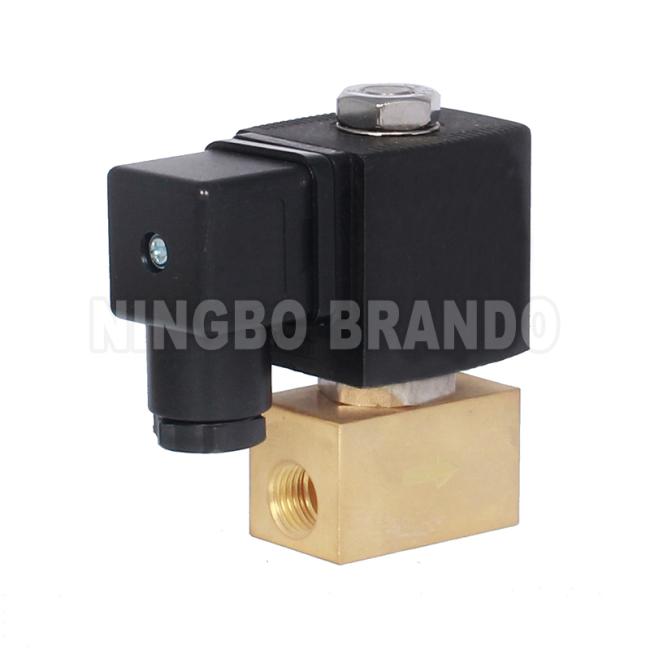

100 bar High Pressure Water Air Brass Solenoid Valve 3/8'' 1/2'' 3/4'' 1'' 220VAC 24VDC

100 bar High Pressure Water Air Brass Solenoid Valve 3/8'' 1/2'' 3/4'' 1'' 220VAC 24VDC

Product Features:

1. Working Medium: Water, Air, Gas, Oil, Liquid, etc
2. Working Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
3. Max Working Pressure: 100 bar
4. Body Material: Brass
5. Seal Material: NBR, EPDM, FKM
6. Port Size: 3/8'', 1/2'', 3/4'', 1''
7. Orifice Size: 15mm, 20mm, 25mm
8. Function: 2 Way Normally Closed
9. Operation: Pilot Piston Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

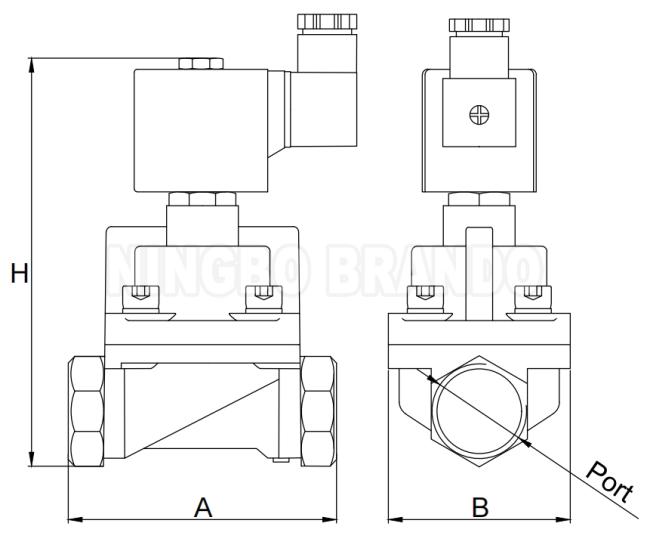

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Valves:

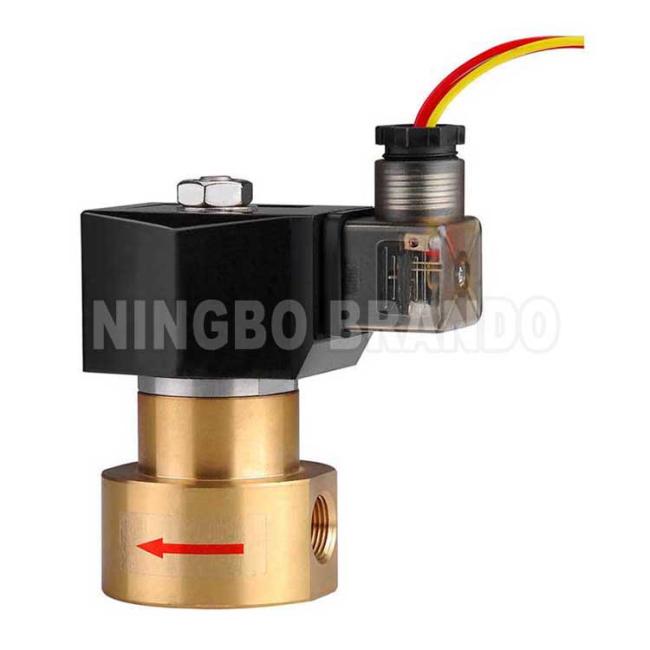

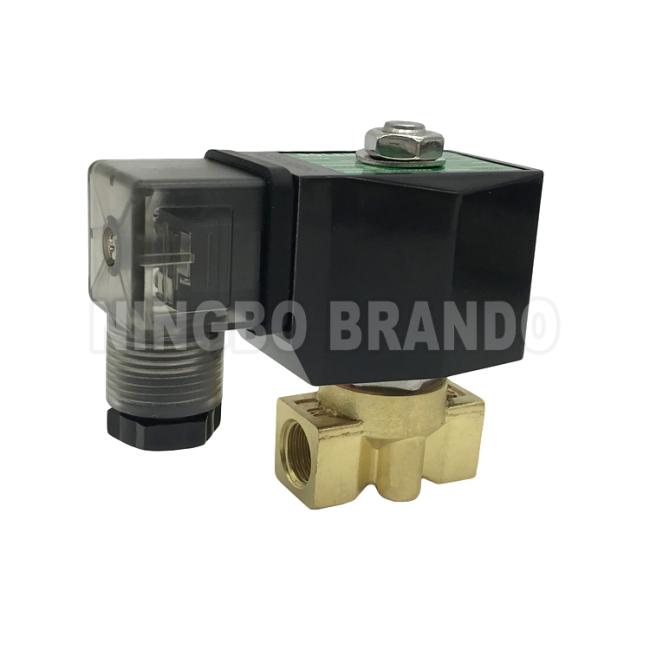

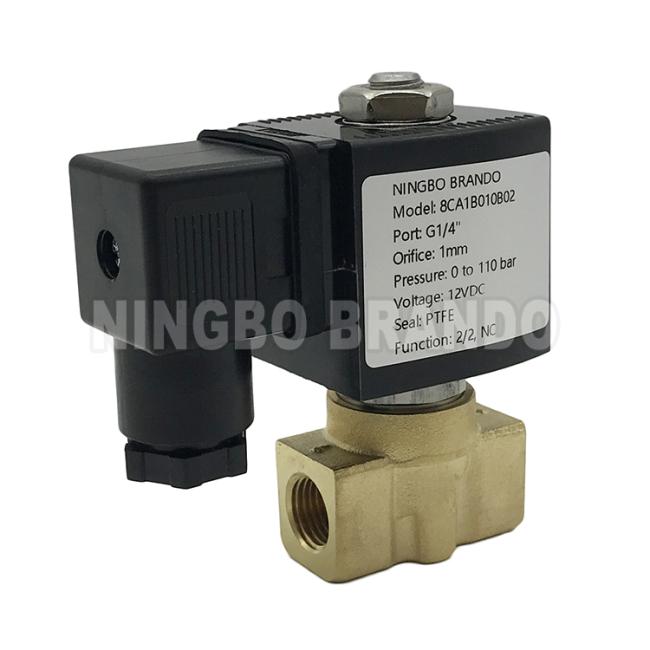

Max 90 bar	Max 120 bar	Max 140 bar	Max 150 bar
