26mm Hole SWH-G03 Hydraulic Directional Solenoid Valve Coil DC12V DC24V

1. Product Name: Northman Type Hydraulic Solenoid Valve Coil
2. Voltage: 12VDC, 24VDC, 110VAC 50Hz, 120VAC 60Hz, 220VAC 50Hz, 240VAC 60Hz.
3. Connector Type: DIN 43650, DEUTSCH, Flying Lead, 2 PINs.
4. Inuslation Class: Class H, Class F.
5. Protection Class: IP65, IP67, IP69K
6. Application: Northman Hydraulic Directional Valves SWH-G02-A120-10, SWH-G02-A220-10, SWH-G02-A240-10, SWH-G02-D12-10, SWH-G02-D24-10, SWH-G02-A120-20, SWH-G02-A220-20, SWH-G02-A240-20, SWH-G02-D24-20, SWH-G02-D12-20, SWH-G02-D24-31, SWH-G02-D12-31, SWH-G02-D24-51, SWH-G02-D12-51, SWH-G02-R240-31, SWH-G02-R120-31, SWH-G03-A110-10, SWH-G03-A120-10, SWH-G03-A220-10, SWH-G03-A240-20, SWH-G03-A110-20, SWH-G03-A120-20, SWH-G03-A220-20, SWH-G03-A240-20, SWH-G02-D24-20, SWH-G02-D12-20, SWH-G02-R240-20, SWH-G02-R120-20, SWH-G03-D24-10, SWH-G03-D12-10, SWH-G03-R240-10, SWH-G03-R120-10, SWH-G03-D24-31, SWH-G03-D12-31, SWH-G03-R240-31, SWH-G03-R120-31, SWH-G03-D24-51, SWH-G03-D12-51, SWH-G03-R240-51, SWH-G03-R120-51.

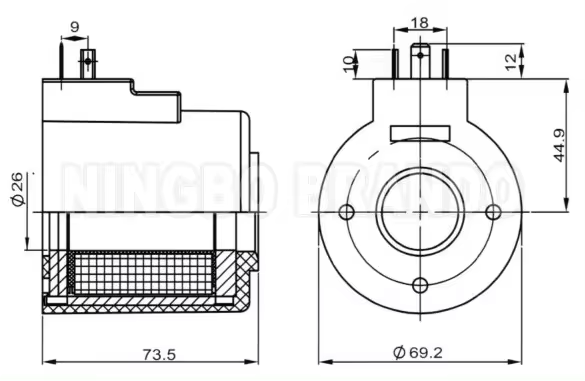

Main Dimension:

Technical Data:

Our Production:

More Hydraulic Coils:

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
