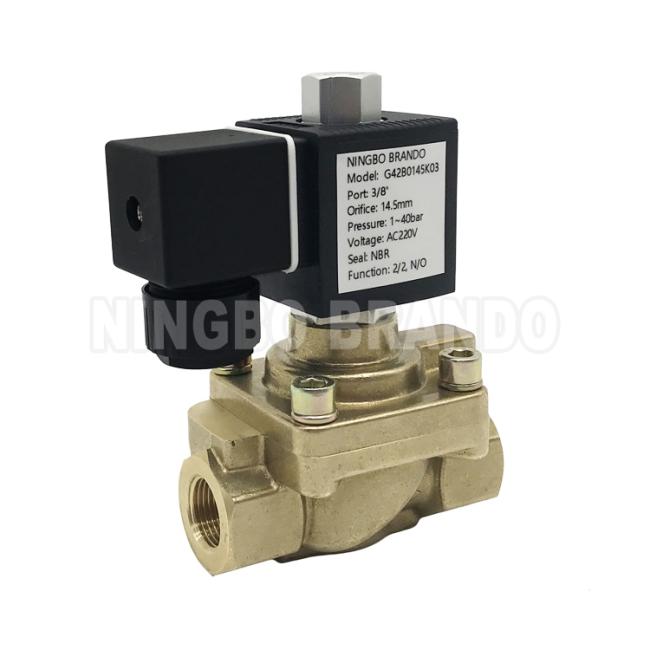

322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V
322H75 1/2'' 40 bar Parker Type Normally Open Solenoid Valve 24V 110V 220V
Product Features:
1. Working Media: Air, Water, Neutral Gases & Liquids, etc
2. Working Pressure: 0.3 to 40 bar
3. Media Temperature: -5 to +80℃
4. Port Size: 1/4'', 3/8'', 1/2''
5. Orifice Size: 15mm
6. Body Material: Brass
7. Diaphragm Material: NBR
8. Function: 2 Way Normally Open
9. Operation: Diaphragm Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
11. Application Examples: Bottle Blowing Machine, Laser Cutting Machine, Air Compressor, etc
Technical Data:
|
Model No
|
322H71
|
322H73
|
322H75
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
|
Orifice Size
|
15mm
|
||
|
Kv
|
3.6
|
||
|
Function
|
2 Way Normally Open
|
||
|
Operation
|
Diaphragm Pilot Operated
|
||
|
Working Medium
|
Air, Water, Neutral Gases & Liquids, etc
|
||
|
Working Pressure
|
0.3 to 40 bar
|
||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
|
||

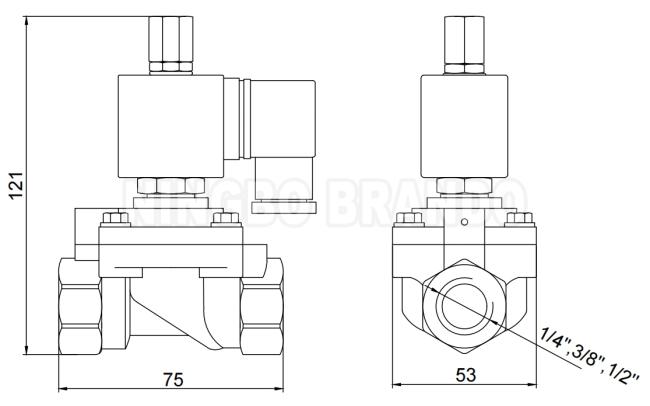

Main Dimension:

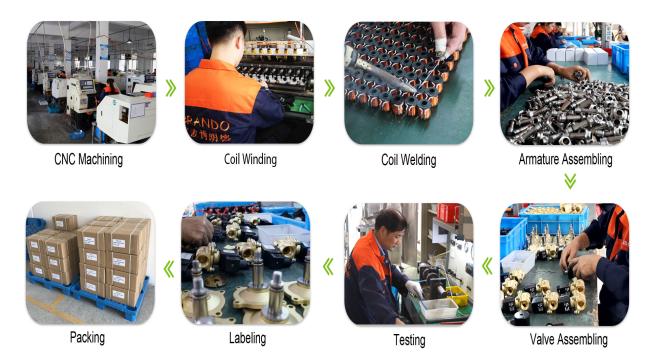

Our Production:

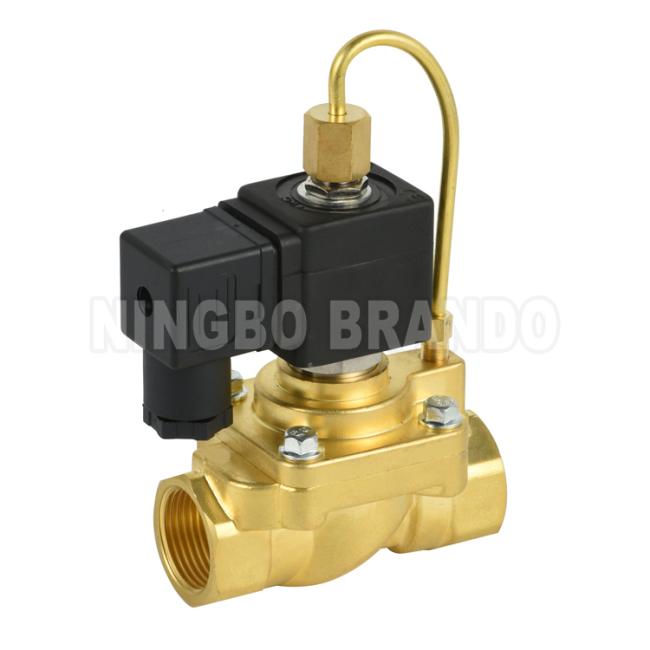

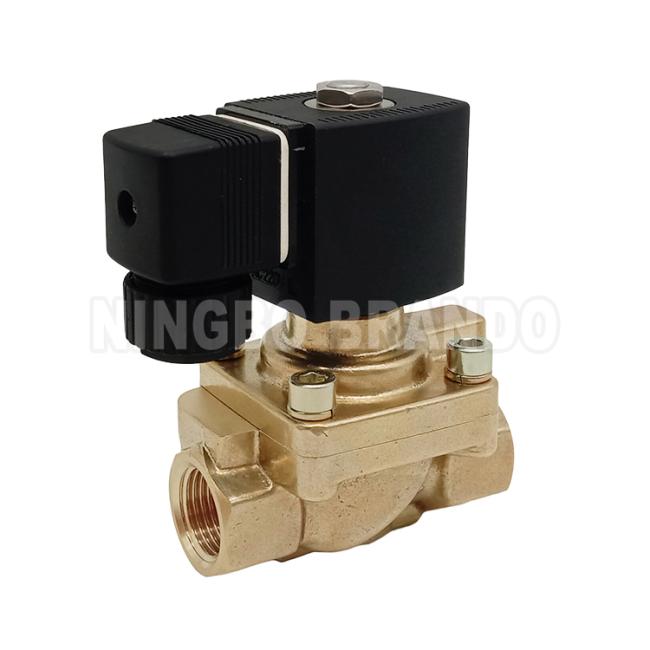

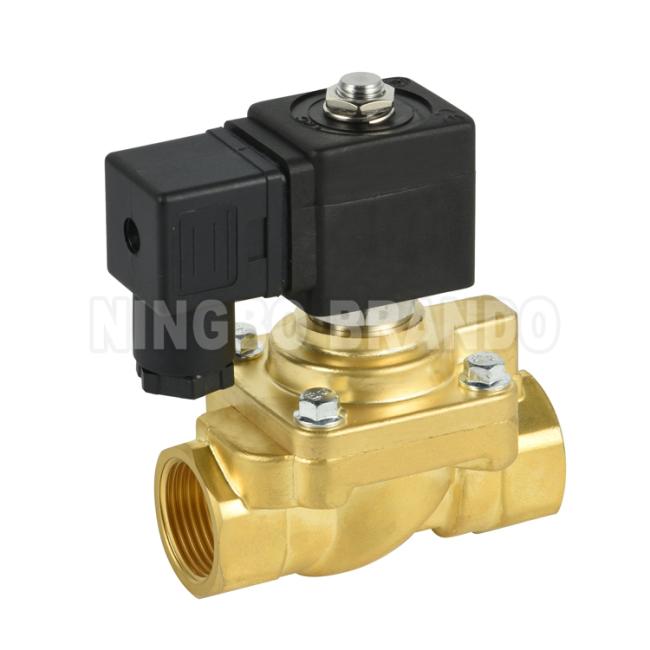

Similar Items:
 |
 |
 |
 |
|
1/2'' 40 bar 2 Way NC |
1/2'' 40 bar 2 Way NO |
1/2'' 40 bar 2 Way NC |
1/2'' 40 bar 2 Way NO |
