C113968968 C140746 Diaphragm Kits For Pulse Valve SCR353A230 SCR353G230
C113968968 C140746 Diaphragm Kits For Pulse Valve SCR353A230 SCR353G230
This C113968968 diaphragm is used for ASCO 3'' SCR353A230, SCR353G230, SCXR353A230, SCXR353G230 pulse valves. The standard diaphragm material is NBR, seat material is nylon. 1 set includes 1pc big diaphragm, 1pc small diaphragm and 2pcs springs. The diaphragm is the most important part of the pulse valve. If you have any demands, pls feel free to contact us.

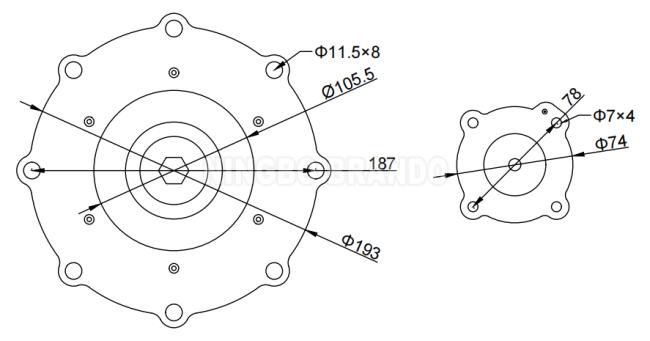

Overall Dimension of C113968968 Diaphragm:
Order Code of Diaphragms for ASCO Pulse Valves:
|
Pulse Valve
Port Size
|
Pulse Valve
Model No
|
Diaphragm
Model No
|
Diaphragm Material
|
|
3/4''
|
SCG353A043 SCG353G043 SGG353A043
|
C113444
|
TPE, NBR
|
|
1''
|
SCG353A044
SCG353G044
SGG353A044
|
||
|
3/4''
|
SCG353-052
SCG353G052
SGG353-052
|
||
|
1''
|
SCG353-053
SCG353G053
SGG353-053
|
||
|
1 1/2''
|
SCG353A047
SCG353G047
SGG353A047
|
C113827
|
NBR
|
|
SCG353A065
SCG353G065
SGG353A065
|
|||
|
2''
|
SCG353A050
SCG353G050
SGG353A050
|
C113685, C113686
|
|
|
2 1/2''
|
SCG353A051
SCG353G051
SGG353A051
|
||
|
3''
|
SCG353D060
SCG353G060
|
C123432, C123433
|
|
|
3''
|
SCXE353.060
SCR353G060
|
C113928
|
|
|
3''
|
SCR353A230
SCR353G230
|
C113968968, C140746
|
|
|
3 1/2''
|
SCR353A235
SCR353G235
|
C113968968, C140745
|
|
|
3/4''
|
G353A041
|
C113443
|
TPE, NBR
|
|
1''
|
G353A042
|
||
|
3/4''
|
G353-055
|
||
|
1''
|
G353-056
|
||
|
1 1/2''
|
G353A045
|
C113825
|
NBR
|
|
G353-066
|
|||
|
G353A046
|
C113826
|
||
|
G353A063
|
|||
|
2''
|
G353A048
|
C113684
|
|
|
2 1/2''
|
G353A049
|
Our Production:
Related Products:
 |
 |
 |

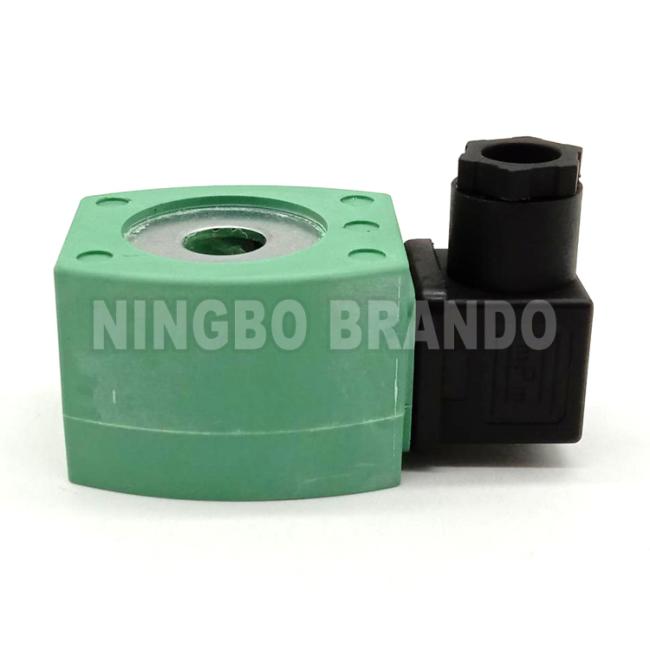

| Solenoid Coil | Pulse Valve | Pulse Controller |
