Ultra Low Temperature Cryogenic Solenoid Valve For Liquid Nitrogen -196℃ 24V 220V
Ultra Low Temperature Cryogenic Solenoid Valve For Liquid Nitrogen -196℃ 24V 220V
Product Features:
1. Working Medium: Cryogenic Liquids, Liquid Nitrogen, Liquid Carbon Dioxide, Liquid Oxygen, etc
2. Working Pressure: 0 to 80 bar
3. Medium Temperature: -196 to +110℃
4. Port Size: 1/4'', 3/8'', 1/2''
5. Orifice Size: 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm
6. Body Material: Stainless Steel 316
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
Model No
|
Port
|
Orifice
|
Cv
|
Min Working Pressure
(bar)
|
Max Working Pressure
(bar)
|
Body
|
Seal
|
Function
|
|
|
AC
|
DC
|
||||||||
|
DW2S020B02
|
1/4''
|
2mm
|
0.14
|
0
|
80
|
60
|
SS316
|
PTFE
|
2 Way NC
|
|
DW2S025B02
|
2.5mm
|
0.23
|
0
|
70
|
55
|
||||
|
DW2S030B02
|
3mm
|
0.3
|
0
|
60
|
50
|
||||
|
DW2S040B02
|
4mm
|
0.6
|
0
|
24
|
20
|
||||
|
DW2S050B02
|
5mm
|
0.65
|
0
|
12
|
8
|
||||
|
DW2S060B02
|
6mm
|
0.8
|
0
|
6
|
4
|
||||
|
DW2S020B03
|
3/8''
|
2mm
|
0.14
|
0
|
80
|
60
|
|||
|
DW2S025B03
|
2.5mm
|
0.23
|
0
|
70
|
55
|
||||
|
DW2S030B03
|
3mm
|
0.3
|
0
|
60
|
50
|
||||
|
DW2S040B03
|
4mm
|
0.6
|
0
|
24
|
20
|
||||
|
DW2S050B03
|
5mm
|
0.65
|
0
|
12
|
8
|
||||
|
DW2S060B03
|
6mm
|
0.8
|
0
|
6
|
4
|
||||
|
DW2S020B04
|
1/2''
|
2mm
|
0.14
|
0
|
80
|
60
|
|||
|
DW2S025B04
|
2.5mm
|
0.23
|
0
|
70
|
55
|
||||
|
DW2S030B04
|
3mm
|
0.3
|
0
|
60
|
50
|
||||
|
DW2S040B04
|
4mm
|
0.6
|
0
|
24
|
20
|
||||
|
DW2S050B04
|
5mm
|
0.65
|
0
|
12
|
8
|
||||
|
DW2S060B04
|
6mm
|
0.8
|
0
|
6
|
4
|
||||

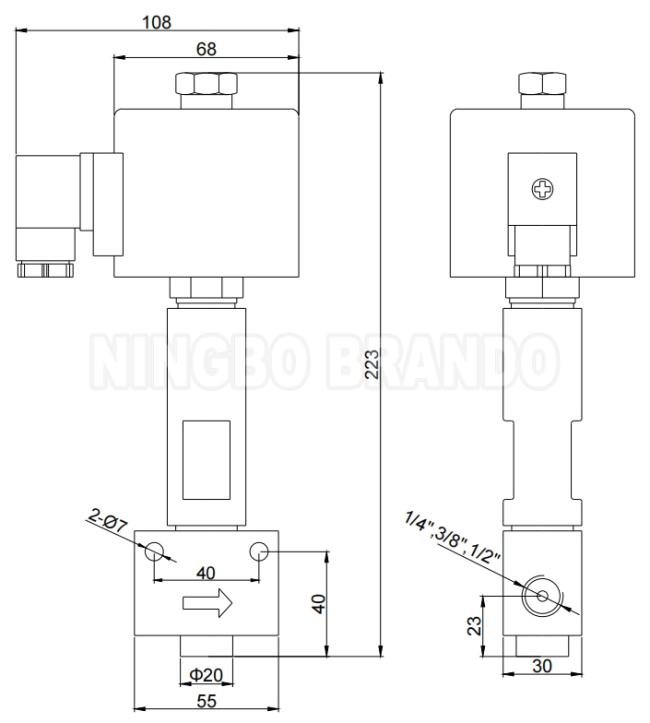

Main Dimension:
Our Production:
Similar Products:
 |
 |
 |
 |
| -196 to +110℃ | -80 to -10℃ | -100 to -10℃ | -80 to -10℃ |
