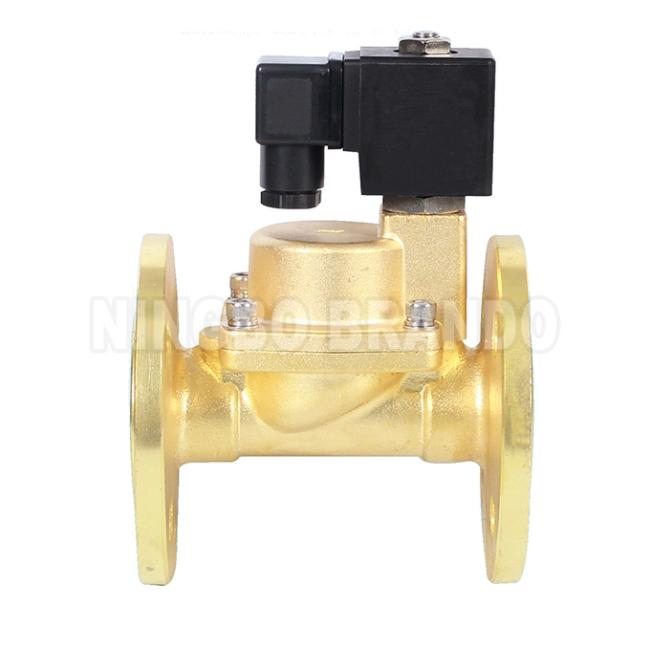

1'' DN25 Flanged Steam Hot Water Brass Solenoid Valve 220V 110V 24V
1'' DN25 Flanged Steam Hot Water Brass Solenoid Valve 220V 110V 24V
Product Features:
1. Working Medium: Steam, Hot Water, High Temperature Liquids, etc
2. Working Pressure: 0.5 to 15 bar
3. Medium Temperature: +5 to +180℃
4. Pipe Connection: Flanged
5. Port Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''
6. Orifice Size: 17mm, 22mm, 30mm, 38mm
7. Body Material: Brass
8. Seal Material: PTFE
9. Function: 2 Way Normally Closed
10. Operation: Piston Pilot Operated
11. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
Model No
|
US-15F
|
US-20F
|
US-25F
|
US-35F
|
US-40F
|
US-50F
|
|
Pipe Connection
|
Flange
|
|||||
|
Port Size
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Orifice Size
|
17mm
|
17mm
|
17mm
|
30mm
|
30mm
|
38mm
|
|
CV
|
4.8
|
4.8
|
4.8
|
25
|
25
|
48
|
|
Working Medium
|
Hot Water, Steam, High Temperature Liquids, etc
|
|||||
|
Operation
|
Piston Pilot Operated
|
|||||
|
Function
|
2 Way Normally Closed
|
|||||
|
Body Material
|
Brass
|
|||||
|
Seal Material
|
PTFE
|
|||||
|
Working Pressure
|
0.5 to 15 bar
|
|||||
|
Working
Temperature
|
-5 to +180℃
|
|||||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|||||
US-25F Dimension:
Our Production:
More Steam Solenoid Valves:
 |
 |
 |
 |
| 1/2'' to 2'', 16 bar | 1'' to 2'', 16 bar | 3/8'' to 2'', 16 bar | 3/8'' to 2'', 25 bar |
