SMC Type VX2360-03 3/8'' Brass Solenoid Valve 220V 110V 24V
SMC Type VX2360-03 3/8'' Brass Solenoid Valve 220V 110V 24V
Product Features:
1. Working Media: Air, Water, Gas, Liquid, Steam, etc
2. Working Pressure: 0 to 10 bar
3. Medium Temperature: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -10 to +150℃
4. Port Size: 3/8'', 1/2''
5. Orifice Size: 10mm, 13mm
6. Body Material: Brass
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
BRANDO Model
|
VX2260-03
|
VX2360-03
|
VX2360-04
|
|
Ref No
|
VX2120-10
|
VX2130-10
|
VX2130-15
|
|
Orifice Size
|
10mm
|
13mm
|
13mm
|
|
Port Size
|
3/8''
|
3/8''
|
1/2''
|
|
Medium
|
Water, Air, Gas, Liquid, Steam, etc
|
||
|
Operation
|
Direct Acting
|
||
|
Function
|
2 Way Normally Closed
|
||
|
Body Material
|
Brass
|
||
|
Seal Material
|
NBR, EPDM, FKM
|
||
|
Medium Temperature
|
NBR: -5 to +80℃
EPDM: -5 to +120℃ FKM: -10 to +150℃ |
||
|
Working Pressure
|
0 to 10 bar
|
||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC, other voltages can be customzied
|
||

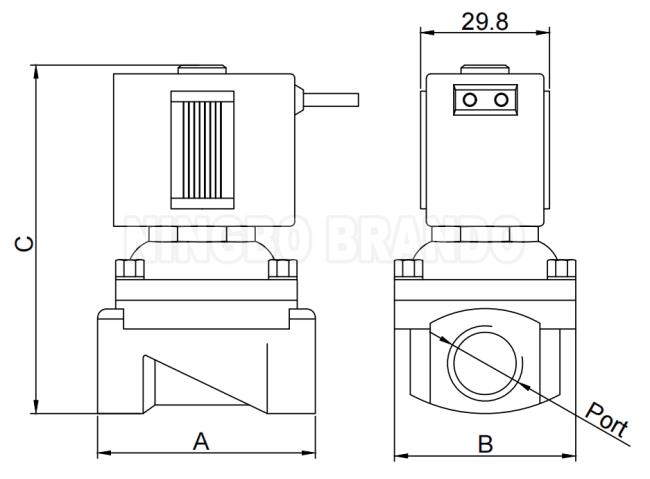

Main Dimension:
|
BRANDO Model
|
Port
|
A
|
B
|
C
|
|
VX2260-03
(VX2120-10)
|
3/8''
|
40
|
50
|
80
|
|
VX2360-03
(VX2130-10) |
3/8''
|
40
|
50
|
80
|
|
VX2360-04
(VX2130-15)
|
1/2''
|
48
|
66
|
110
|
