2061367 3002279 3008917 Solenoid Coil For RIELLO R.B.L. Oil Burner Pump
2061367 3002279 3008917 Solenoid Coil For RIELLO R.B.L. Oil Burner Pump
This solenoid coil is popularly used in oil burner pump like RIELLO. The reference number is 2061367, 3002279, 3008917. The standard voltage is 220VAC or 24VDC, other voltages can be customized as your request. If you have any demands or questions, pls contact us!
Technical Data:
|
BRANDO Model
|
2061367
|
|
Voltage
|
12VDC, 24VDC, 24VAC,
110VAC, 220VAC
|
|
Other voltage and power can be customized
|
|
|
Connector
|
Three Wires
|

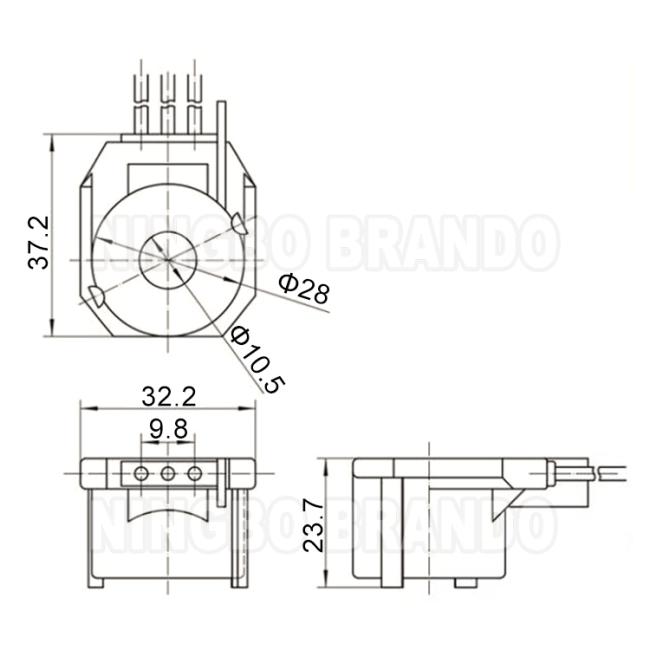

Main Dimension:
Our Production:
FAQ: How to choose a matching solenoid coil?
1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
