Parker Type Solenoid Valve Coil KT09 KT10 KP07 KH09 220V 110V 24V 9W 10W 7W
Parker Type Solenoid Valve Coil KT09 KT10 KP07 KH09 220V 110V 24V 9W 10W 7W
This solenoid coil is popularly used in various solenoid valves. The reference number is KT09, KT10, KP07, KH09. The voltage is 12VDC, 24VDC, 24VAC, 110VAC or 220VAC, the standard power is 7W, 9W or 10W, other voltages and powers can be customized as your request. If you have any demands or questions, pls contact us!
Technical Data:
|
BRANDO Model
|
KP07, KT09, KT10, KH09
|
|
Voltage
|
12VDC, 24VDC, 24VAC,
110VAC, 220VAC
|
|
Power
|
7W, 9W, 10W
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
Protection Class
|
IP65
|

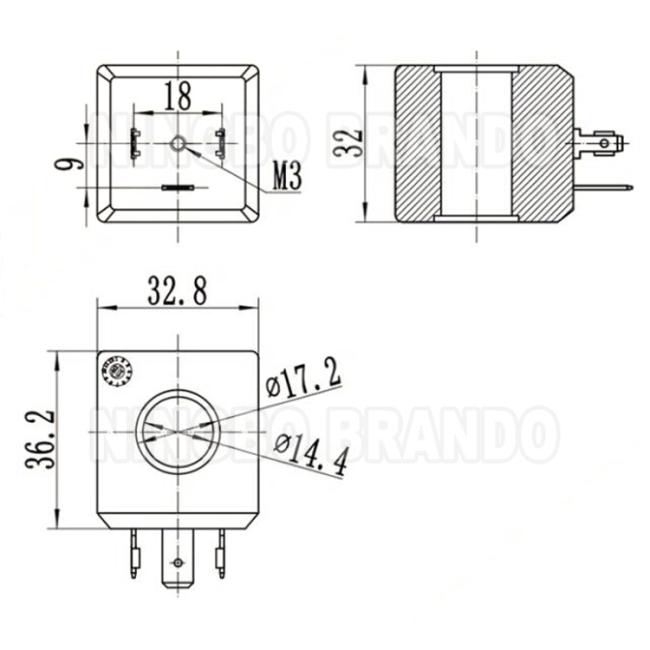

Main Dimension:
Our Production:
FAQ: How to choose a matching solenoid coil?
1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
Similar Products:
 |
 |
 |
 |
| XT09 | ZB09 | DZ06 | 482828S9 |
