AIRTAC Type Solenoid Valve Coil CDA116A CDA116B CDA116C CDA116E CDA116F

This solenoid coil is popularly used in various solenoid valves. The reference number is CDA116A, CDA116B, CDA116C, CDA116E, CDA116F. The voltage can be AC220V, AC110V, AC24V, DC24V or DC12V, the standard power is 6.5W or 10VA, other voltages and powers can be customized as your request. If you have any demands or questions, pls contact us!

Technical Data:

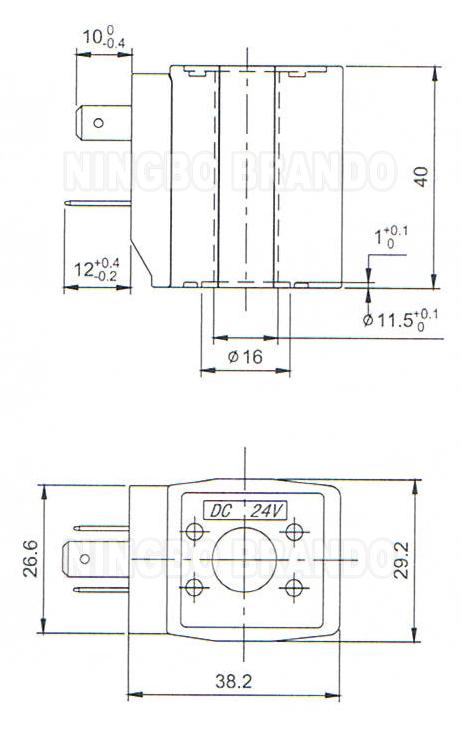

Main Dimension:

Our Production:

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
