150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V

150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
3. Max Working Pressure: 150 bar
4. Body Material: SS314, SS316
5. Seal Material: NBR, EPDM, FKM
6. Port Size: G1/4'', G3/8'', G1/2''
7. Orifice Size: 6mm, 8mm, 10mm
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

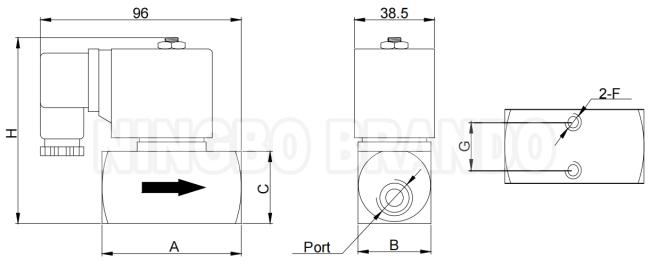

Main Dimension:

Our Production:

More High Pressure Valves:

Max 200 bar	Max 200 bar	Max 300 bar	Max 360 bar
