2W150-15 1/2'' Airtac Type Brass Solenoid Valve for Water Air Gas Liquid
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
Negotiation
Brand:
BRANDO
Product Description
2W150-15 Airtac Type Brass Solenoid Valve
Product Features:
1. Working Medium: Water, Air, Gas, Liquid, etc
2. Max Working Pressure: 10 bar
3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''
5. Orifice Size: 3mm, 5mm, 15mm, 20mm, 25mm
6. Body Material: Brass
7. Seal Material: NBR (Standard), EPDM, FKM
8. Operation: Direct Acting (DN3 to DN5), Pilot Operated (DN15 to DN25)
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
| Model No | 2W030-06 | 2W030-08 | 2W050-10 | 2W050-15 | 2W150-10 | 2W150-15 | 2W200-20 | 2W250-25 |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/8'' | 1/2'' | 3/4'' | 1'' |
| Orifice Size | 3mm | 3mm | 5mm | 5mm | 15mm | 15mm | 20mm | 25mm |
| CV | 0.33 | 0.33 | 0.83 | 0.83 | 5.5 | 5.5 | 9.5 | 12.5 |
| Body Material | Brass | |||||||
| Seal Material | NBR (Standard), EPDM, FKM | |||||||
| Working Medium | Water, Air, Gas, Liquid, etc | |||||||
| Working Temperature |
NBR: -5 to +80℃
EPDM: -5 to +120℃
FKM: -10 to +150℃
|
|||||||
| Working Pressure | 0 to 10 bar | 0.5 to 10 bar | ||||||
| Operation | Direct Acting | Pilot Operated | ||||||
| Function | 2 Way Normally Closed | |||||||
| Supply Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||||

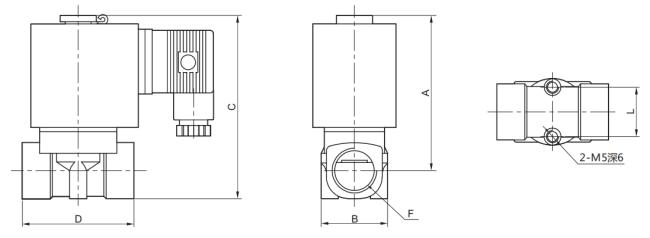

Main Dimension:
| Model No | Port | A | B | C | D | L |
| 2W030-06 | 1/8'' | 60 | 25 | 70 | 41 | 16 |
| 2W030-08 | 1/4'' | 60 | 25 | 70 | 41 | 16 |
| 2W050-10 | 3/8'' | 72 | 31 | 85 | 52 | 23 |
| 2W050-15 | 1/2'' | 72 | 31 | 85 | 52 | 23 |
| 2W150-10 | 3/8'' | 92 | 46 | 105 | 70 | / |
| 2W150-15 | 1/2'' | 92 | 46 | 105 | 70 | / |
| 2W200-20 | 3/4'' | 96 | 53 | 113 | 82 | / |
| 2W250-25 | 1'' | 102 | 59 | 122 | 92 | / |
