MD01-25M Diaphragm For TH-5825-M TAEHA Pulse Valve Membrane Repair Kit

Price Negotiable

Price: Negotiation

MOQ: 50sets

Delivery Time: 4 to 7 working days

Brand: BRANDO

Product Description

MD01-25M Diaphragm For TAEHA Pulse Jet Valve

This MD01-25M diaphragm is used in TH-5825-M pulse valve. The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

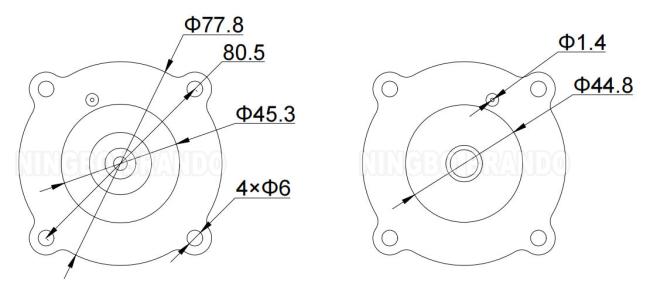

MD01-25M Dimension:

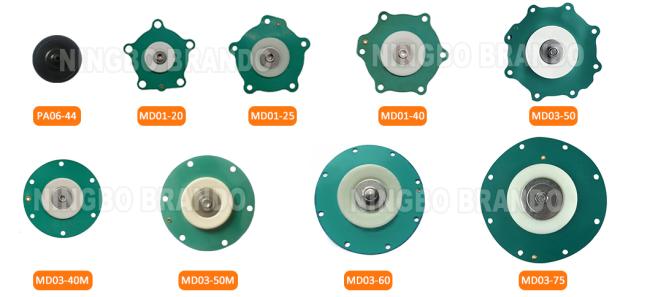

Ordering Codes:

BRANDO Model	Diaphragm Model No	Pulse Valve Port Size	Pulse Valve Model No	Diaphragm Color	Diaphragm Material

DH20	MD01-20 MD02-20	3/4''	TH-5820-B	Red & Green	NBR
			TH-4820-B
			TH-5825-B
			TH-5820-C
			TH-4820-C
DH25	MD01-25 MD02-25	1''	TH-4825-B
			TH-5825-C
			TH-4825-C
			TH-5840-F
			TH-4840-F
DH25M	MD01-25M	1''	TH-5825-M
DH30	MD01-30 MD02-30 MD03-30	1-1/4''	TH-5830-B
			TH-5430-B
			TH-4830-B
			TH-4430-B
DH30M	MD03-30M		TH-5430-M
			TH-4430-M
DH40	MD01-40 MD02-40 MD03-40	1-1/2''	TH-5840-B
			TH-5440-B
			TH-4840-B
			TH-4440-B
			TH-5840-C
			TH-5440-C
			TH-4840-C
			TH-4440-C
			TH-5850-F
			TH-5450-F
			TH-4850-F
			TH-4450-F
DH40M	MD03-40M	1-1/2''	TH-5440-M
			TH-4440-M
DH50	MD03-50	2''	TH-5450-B
			TH-4450-B
DH50M	MD03-50M	2''	TH-5450-M
			TH-4450-M
DH60	MD03-60 MD04-60	2-1/2''	TH-5460-B
			TH-4460-B
			TH-5460-S
			TH-4460-S
DH75	MD03-75	3''	TH-5475-B
			TH-4475-B
	MD03-75M	3''	TH-5475-M
			TH-4475-M
DH90M	MD03-90M	3-1/2''	TH-5490-M
			TH-4490-M
DH100M	MD03-00M	4''	TH-5400-M
			TH-4400-M
