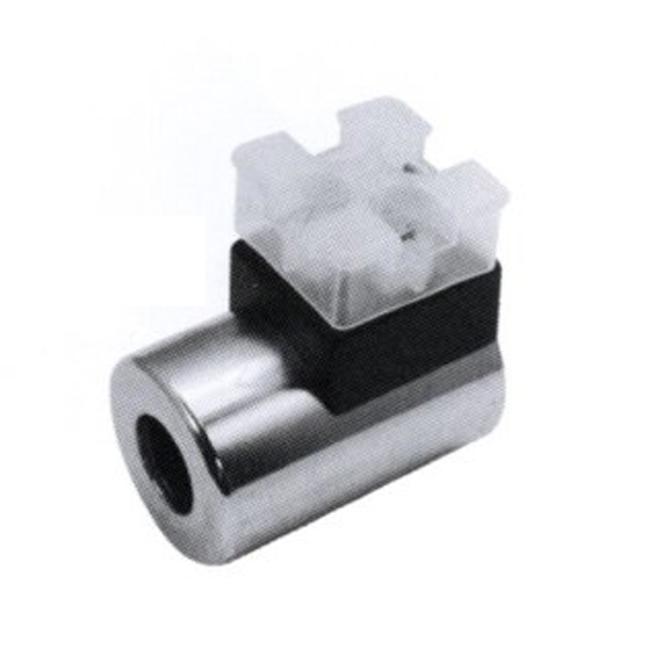

16mm Hole 52mm Height Hydraulic Solenoid Valve Coil 33W 12V 24V

Brando supplies on-off solenoid and proportional solenoid for directional control valve, matching Rexroth type, YUKEN, Vickers hydraulic system and Taiwan brands. Our factory has an annual productivity of 6,000,000 pieces. The products are sold in more than 20 countries: UK, Italy, Germany, Russia, etc. The main products are AC & DC hydraulic solenoids with voltage of 12v, 24v, 110v, and 220v. Customization service is available. Factory direct sale. An ISO, UL and CE certified supplier.

Specifications of Customized Hydraulic Solenoid Coils
1. Standard Voltage: DC:12V / 24V, AC:24V / 220V / 380V
2. Coil Insulation: Class F/ H/ N, others on request.
3. Connector type: DIN43650, Deutsch, Amp, Flying Leads, Plug In Type, etc.
4. Application: Can be installed in various types of hydraulic valves

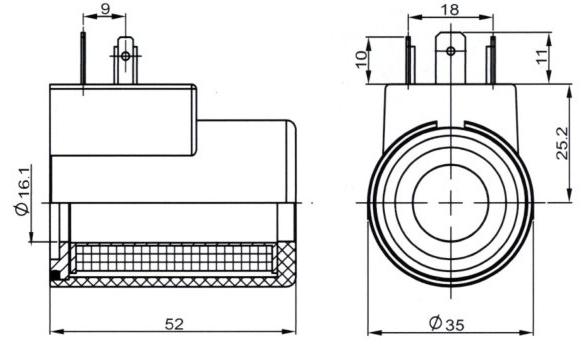

Dimension & Data of Hydraulic Solenoid Valve Coil:

Picture	Dimension	Model	BB16152070
		Voltage	12VDC, 24VDC, 110VAC, 220VAC
		Power	33W
		Connector Type	DIN 43650A
		Insulation Class	F
		Protection Class	IP65

Brando Factory Production of Solenoid Valve Coil:

Other hydraulic solenoid valve coil fo you to choose:

Vickers Type Hydraulic Solenoid Valve Coil:

Yuken Type Hydraulic Solenoid Valve Coil:
