1/8'' 1/4'' 2 Way Normally Open Stainless Steel Solenoid Valve 30bar

Name: 1/8'' 1/4'' 2 Way Normally Open Stainless Steel Solenoid Valve 30bar
Brand: Ningbo Brando Hardware Co., Ltd

Price Negotiable

Price: Negotiation

MOQ: 50pcs

Delivery Time: 7 working days

Brand: BRANDO

Product Description

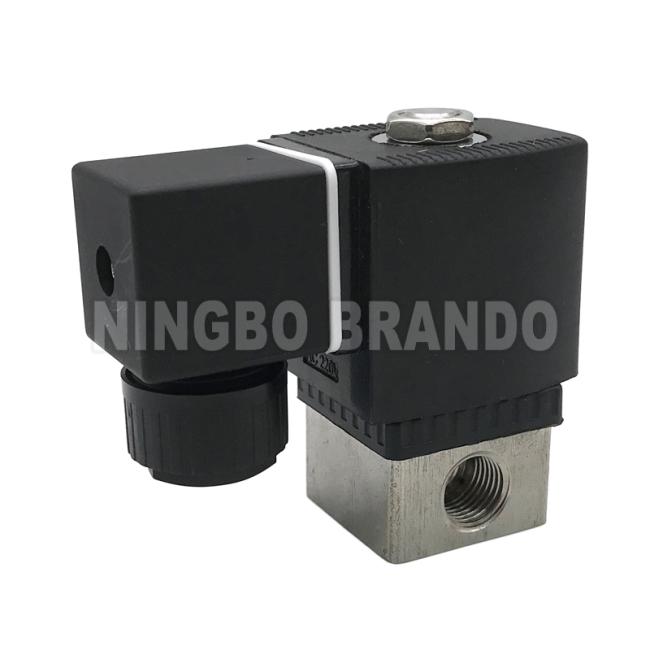

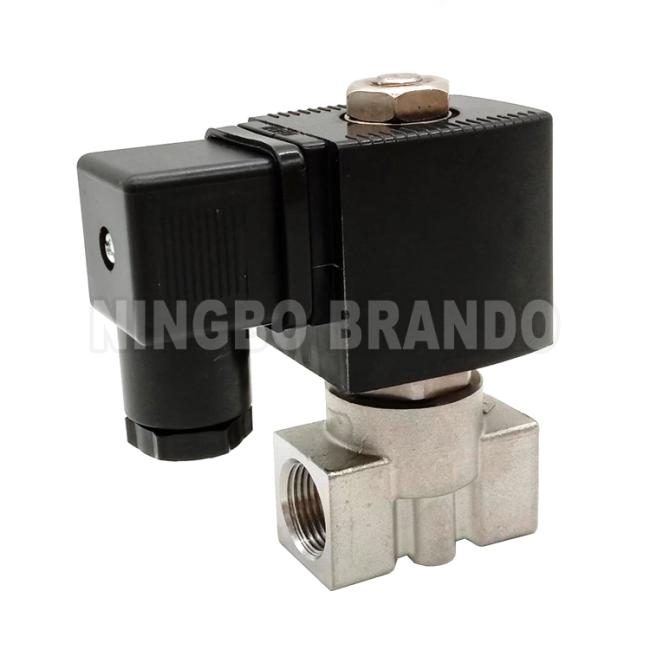

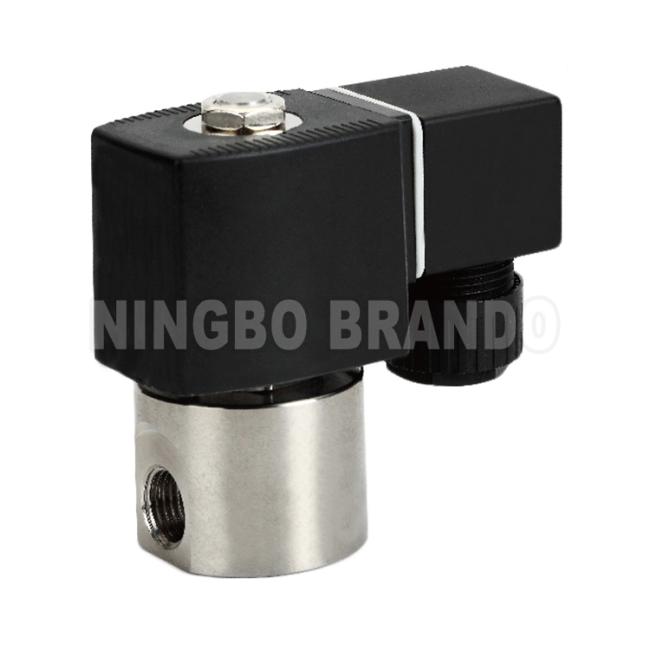

1/8'' 1/4'' 2 Way Normally Open Stainless Steel Solenoid Valve 30bar

This is a small and compact solenoid valve, 1/8'' or 1/4'' port, 1.2 to 2.8mm orifice, 0 to 30 bar, plunger direct acting, 2 way normally open, stainless steel 304 body, NBR standard seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

Model No	Port Size (inch)	Orifice Size (mm)	Cv	Working Pressure (bar)		Body	Seal	Voltage
Model No	Port Size (inch)	Orifice Size (mm)	Cv	DC	AC	Body	Seal	Voltage
2 Way Normally Closed, Direct Acting
19.13BAX012BXX	1/8'' 1/4''	1.2	0.09	0 to 30	0 to 30	Brass SS304	NBR EPDM FKM	12VDC 24VDC 24VAC 110VAC 220VAC
19.13BAX015BXX		1.5	0.11	0 to 30	0 to 30
19.13BAX020BXX		2.0	0.15	0 to 20	0 to 15
19.13BAX025BXX		2.5	0.18	0 to 14	0 to 10
19.13BAX028BXX		2.8	0.25	0 to 10	0 to 8
2 Way Normally Open, Direct Acting
19.13BBX012KXX	1/8'' 1/4''	1.2	0.09	0 to 10	0 to 10	Brass SS304	NBR EPDM FKM	12VDC 24VDC 24VAC 110VAC 220VAC
19.13BBX015KXX		1.5	0.11	0 to 9	0 to 9
19.13BBX020KXX		2.0	0.15	0 to 6	0 to 6
19.13BBX025KXX		2.5	0.18	0 to 4	0 to 4
19.13BBX028KXX		2.8	0.25	0 to 3	0 to 3

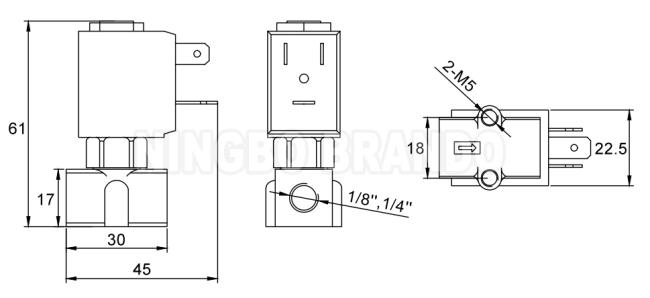

Main Dimension:

Our Production:

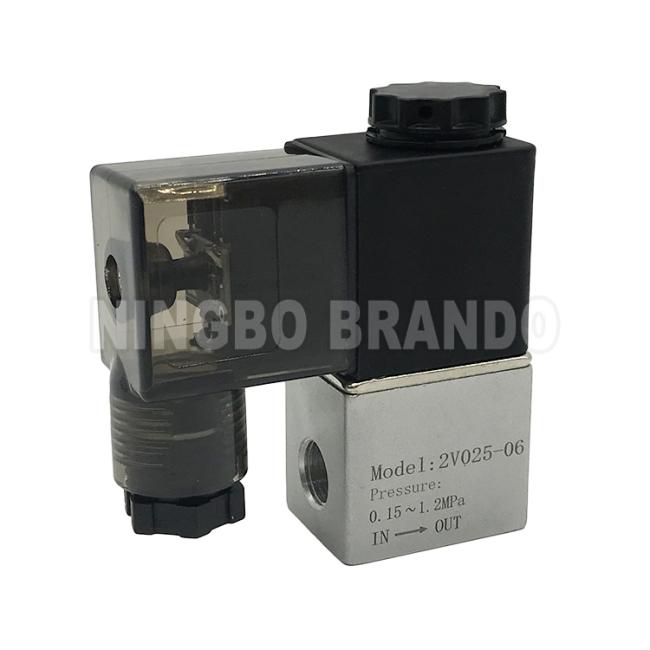

Similar Valves:
