3 Way Flange Brass Solenoid Valve For Coffee Machine 12V 24V 110V 220V

Product Features:

1. Working Medium: Air, Water, Steam, Gas, Oil, etc
2. Working Pressure Range: 0 to 1.5 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), VITON (-30 to +150℃)
4. Connection: Sub Base
5. Body Orifice Size: 1.6mm, 2.5mm, 3mm, 4mm
6. Top Orifice Size: 1.5mm
7. Body Material: Brass, Stainless Steel
8. Seal Material: NBR, EPDM, VITON
9. Function: 3 Way Normally Closed, 3 Way Normally Open
10. Operation: Direct Acting
11. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Product Video:

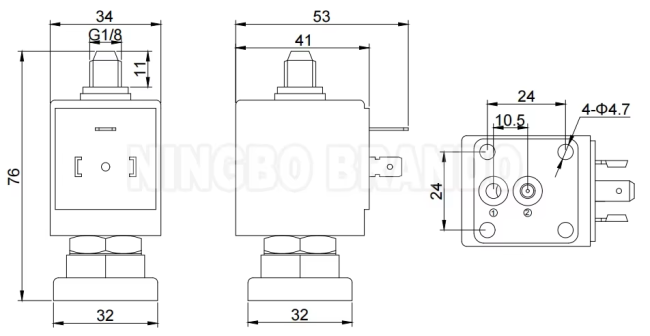

Technical Data:

BRANDO Solenoid Valves Production Video:

More Coffee Machine Solenoid Valves for you to choose:

Brass Solenoid Valve

Plastic Solenoid Valve

Manifold Solenoid Valve
