100 bar 1'' Flange Stainless Steel High Pressure Solenoid Valve 24V 220V
100bar Water Air Stainless Steel High Pressure Solenoid Valve 24V 220V
Product Features of high pressure solenoid valve:
Working medium:water,liquid,air,light oil(viscosity≤20cst)
Matierial: Stainless steel SS304
Working Temperature:-5 ~ 80ºC
Temperature must be≤80ºC
Working Presure:6-100bar
Voltage: AC220~240V AC110V 50/60Hz 28VA DC24 20W I P65
Seals: PTFE
Technical Data of High Pressure Solenoid Valve:
| Model No. | Orifice Size (mm) |
Port Size | Cv | Working Pressure (bar) | |||
| Normally Closed | Normally Open | ||||||
| Normally Close | Normally Open | AC220V | DC24V | AC220V DC24V | |||
| H10S15B04 | H10S15K04 | 15 | 1/2'' | 4.8 | 6~100 | 6~100 | 6~40 |
| H10S20B06 | H10S20K06 | 20 | 3/4'' | 7.6 | 6~100 | 6~100 | 6~40 |
| H10S25B25 | H10S25K25 | 25 | 1'' | 12 | 6~100 | 6~100 | 6~40 |
| H10S32B32 | H10S32K32 | 32 | 1-1/4'' | 20 | 6~80 | 6~80 | 6~30 |
| H10S40B40 | H10S40K40 | 40 | 1-1/2'' | 30 | 6~80 | 6~80 | 6~30 |
| H10S50B50 | H10S50K50 | 50 | 2'' | 48 | 6~80 | 6~80 | 6~30 |
| H10S15BF15 | H10S15KF15 | 15 | F1/2'' | 4.8 | 6~100 | 6~100 | 6~40 |
| H10S20BF20 | H10S20KF20 | 20 | F3/4'' | 7.6 | 6~100 | 6~100 | 6~40 |
| H10S25BF25 | H10S25KF25 | 25 | F1'' | 12 | 6~100 | 6~100 | 6~40 |
| H10S32BF32 | H10S32KF32 | 32 | F1-1/4'' | 20 | 6~80 | 6~80 | 6~30 |
| H10S40BF40 | H10S40KF40 | 40 | F1-1/2'' | 30 | 6~80 | 6~80 | 6~30 |
| H10S50BF50 | H10S50KF50 | 50 | F2'' | 48 | 6~80 | 6~80 | 6~30 |

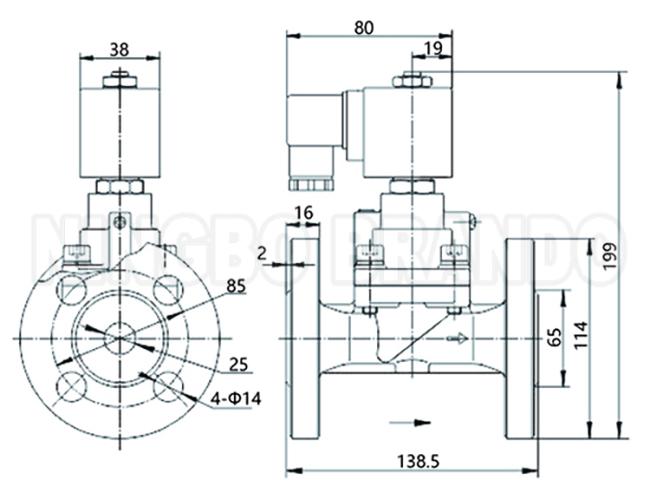

Dimension of High Pressure Solenoid Valve:
Brando Solenoid Valve Factory Production Video:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
 |
 |
 |
 |
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
 |
 |
 |
 |
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves | |||
 |
 |
 |
 |
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
 |
 |
 |
 |
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
