DMF-Z-62S DMF-Y-62S DMF-T-62S Pulse Valve BFEC Diaphragm Repair Kit
DMF-Z-62S DMF-Y-62S DMF-T-62S Pulse Valve BFEC Diaphragm Repair Kit
The operating temperature and pressure range of the diaphragm itself depends on the type, fabric and structure. Diaphragm can work at -50~100 ℃, 0.4~0.8MPa; Fluorine rubber and silicone rubber diaphragm can operate at -80~232 degrees Celsius. Chloroprene rubber diaphragm can work under 0.4~0.8MPa pressure, good air tightness, aging resistance, life and engine overhaul life.
Ordering Number of Diaphragm For SBFEC Solenoid Pulse Valve:
|
Diaphragm For New Version BFEC Pulse Valves
|
||
|
Diaphragm Order Code
|
Fitted Pulse Valve Model
|
Valve Port Size
|
|
DTY
(Secondary Diaphragm)
|
All Double Diaphragm Pulse Valves
|
/
|
|
D20A
|
DMF-Z20
|
3/4''
|
|
DMF-ZM-20
|
||
|
D20B
|
DMF-ZL-B
|
3/4''
|
|
D25
|
DMF-Z-25
|
1''
|
|
DMF-ZM-25
|
||
|
DMF-Y-25
|
||
|
DMF-T-20
|
3/4''
|
|
|
D40
|
DMF-Z-40S
|
1-1/2''
|
|
DMF-Y-40S
|
||
|
DMF-ZF-40S
|
||
|
DMF-ZM-40S
|
||
|
DMF-T-25S
|
1''
|
|
|
D50
|
DMF-Z-50S
|
2''
|
|
DMF-Y-50S
|
||
|
DMF-T-50S
|
||
|
D62
|
DMF-Z-62S
|
2-1/2''
|
|
DMF-Y-62S
|
||
|
DMF-T-62S
|
||
|
D76
|
DMF-Z-76S
|
3''
|
|
DMF-Y-76S
|
||
|
D102
|
DMF-Z-102S
|
4''
|
|
DMF-Y-102S
|
||
|
D102A
|
DMF-Y-102SA
|
4''
|
|
D300
|
DMF-N-300
|
12''
|
|
Diaphragm For Old Version BFEC Pulse Valves
|
||
|
LD50
|
DMF-Z-50S (Old)
|
2''
|
|
DMF-Y-50S (Old)
|
||
|
DMF-T-50S (Old)
|
||
|
LD62
|
DMF-Z-62S (Old)
|
2-1/2''
|
|
DMF-Y-62S (Old)
|
||
|
DMF-T-62S (Old)
|
||
|
LD76
|
DMF-Z-76S (Old)
|
3''
|
|
DMF-Y-76S (Old)
|
||

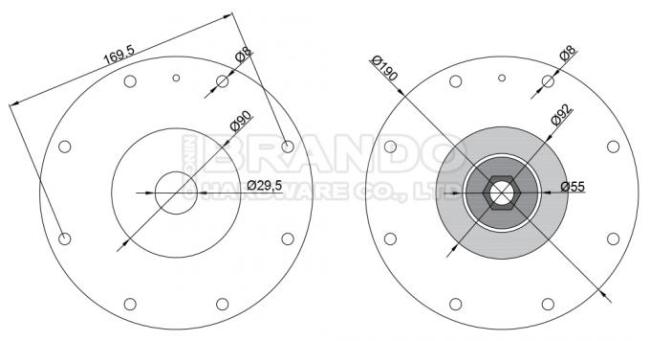

Main Dimension of D62 Diaphragm For BFEC Pulse Valve:
Video of D62 Membrane For SBFEC Pulse Solenoid Valve:
Pictures of Pulse Valve Diaphragm Production:
