M100 Diaphragm TKITM100N04 For SQP100 SQM100 3.5'' 4'' TURBO Pulse Valve
M100 Diaphragm TKITM100N04 For SQP100 SQM100 3.5'' 4'' TURBO Pulse Valve
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Ordering Code of Diaphragm For Turbo Pulse Valve:

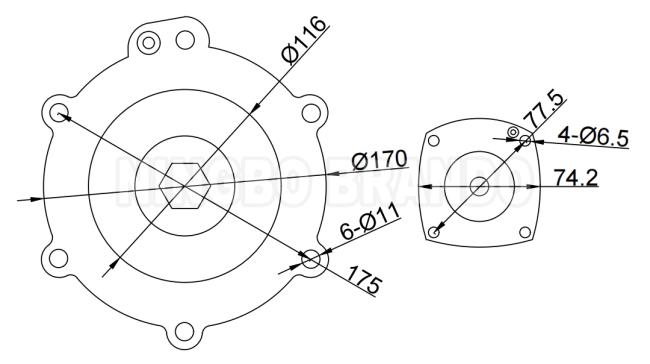

M100 Dimension:
Pictures of Pulse Valve Membrane Production:
More Turbo Type Pulse Jet Valve for you to choose:
 |
 |
 |
| Threaded Type | Submerged Type | Valve Diaphragm |
 |
 |
 |
| Solenoid Coil | Solenoid Armature | Pulse Controller |
