4M320-10 3/8'' Airtac Type Namur Pneumatic Valve 5/2 Way

Price Negotiable

Price: Negotiation

MOQ: 50 pcs

Delivery Time: Negotiation

Brand: Brando

Product Description

4M320-10 3/8'' Airtac Type Namur Pneumatic Valve 5/2 Way

NAMUR valves can be used in a variety of pneumatic and hydraulic systems to control actuators, larger industrial valves or fluid power motors. They come in a range of sizes, including compact in-line versions which can be used individually or in a manifold. These provide high flow rates for their small size. The standard interfaces of NAMUR valves and direct mounting make them simpler and faster to install than integrated pneumatic solenoids, and therefore help to reduce installation costs. There is also less damage to pipelines, and more room for installers to refit the other components.

Technical Data of 4M Series Namur Solenoid Valve:

Model No	4M110-M5 4M120-M5	4M110-06 4M120-06	4M210-06 4M220-06	4M210-08 4M220-08	4M310-08 4M320-08	4M310-10 4M320-10
Fluid	Air (to be filtered by 40 μm filter element)
Port Size	In=Out=M5	In=Out=1/8''	In=Out=1/8''	In=1/4'', Out=1/8''	In=Out=1/4''	In=3/8'', Out=1/4''
Orifice Size	5.5mm² (Cv=0.31)	12.0mm² (Cv=0.67)	14.0mm² (Cv=0.78)	16.0mm² (Cv=0.89)	25.0mm² (Cv=1.40)	30.0mm² (Cv=1.67)
Valve Type	5 Way 2 Position
Operating Pressure	0.15 to 0.8MPa (21 to 114 PSI)
Proof Pressure	1.5MPa (215PSI)
Temperature (℃)	-20 to +70
Body Material	Aluminum Alloy
Max. Frequency	5 Cycle / Second				4 Cycle / Second
Coil Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Protection Class	IP65
Activating Time	0.05 second and below

Dimension of 4A320-10 Namur Solenoid Valve:

Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

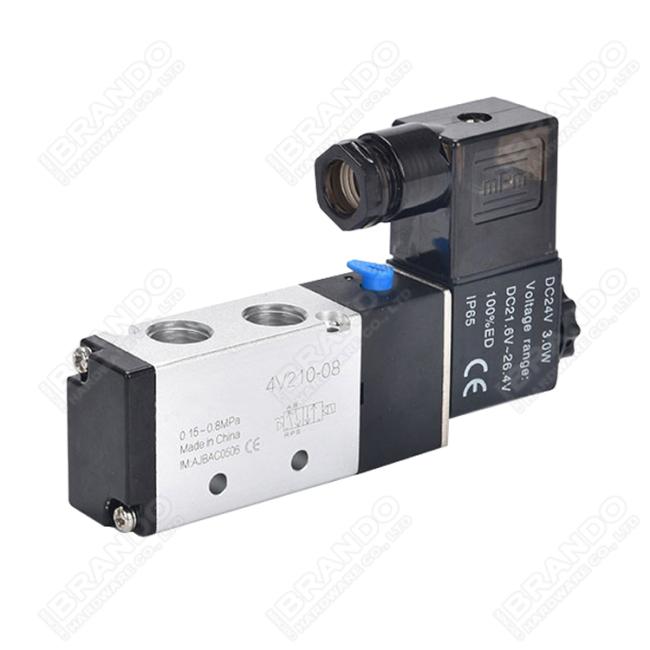

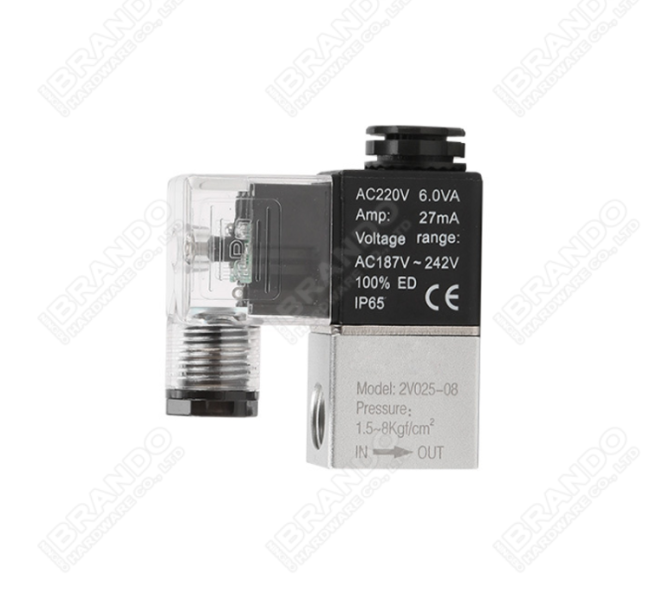

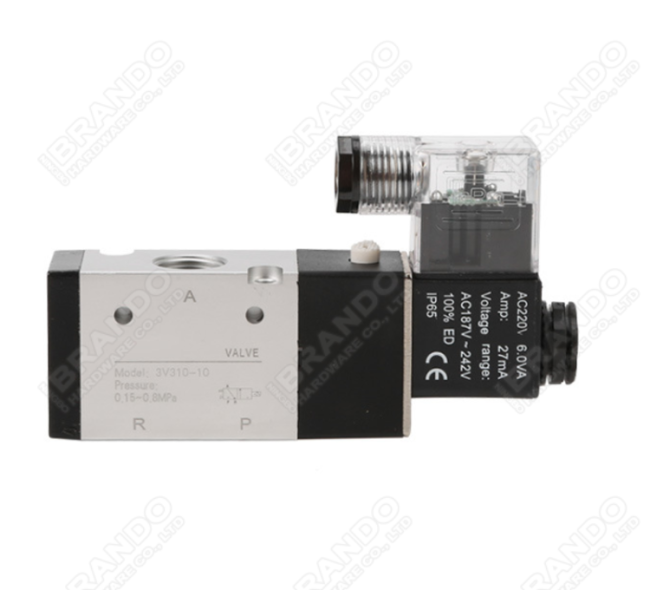

2/2 Way Pneumatic Valves	3/2 Way Pneumatic Valves	5/2 Way Pneumatic Valves	5/3 Way Pneumatic Valves
