NBR Diaphragm For 2W400-40 2S400-40 1.5'' Water Solenoid Valves
NBR Diaphragm For 2W400-40 2S400-40 1.5'' Water Solenoid Valves
Diaphragm ( Membrane ) for 1 1/2'' solenoid valve 2W400-40, 2S400-40. Principle of operation combines direct acting and pilot. Valve diaphragm is attached to the solenoid core and no pressure difference is required. This principle allows high flow rate at pressure near 0 bar. The choice of diaphragm material depends on mechanical, thermal and chemical requirements. NBR is the standard material for use with neutral chemically fluids at temperatures up to 90°C. At higher temperatures, EPDM, FPM and PTFE can be used.
Ordering Code of Diaphragm For Water Solenoid Valve:
|
Ordering Code
|
Fitted Valve Code
|
Valve Port Size
|
Material
|
|
2W160
|
2W160-10
|
3/8''
|
NBR
|
|
2S160-10
|
|||
|
2W160-15
|
1/2''
|
||
|
2S160-15
|
|||
|
2W200
|
2W200-20
|
3/4''
|
|
|
2S200-20
|
|||
|
2W250
|
2W250-25
|
1''
|
|
|
2S250-25
|
|||
|
2W350
|
2W350-35
|
1-1/4''
|
|
|
2S350-35
|
|||
|
2W400
|
2W400-40
|
1-1/2''
|
|
|
2S400-40
|
|||
|
2W500
|
2W500-50
|
2''
|
|
|
2S500-50
|
|||
|
Tips: EPDM, FKM all available.
|
|||

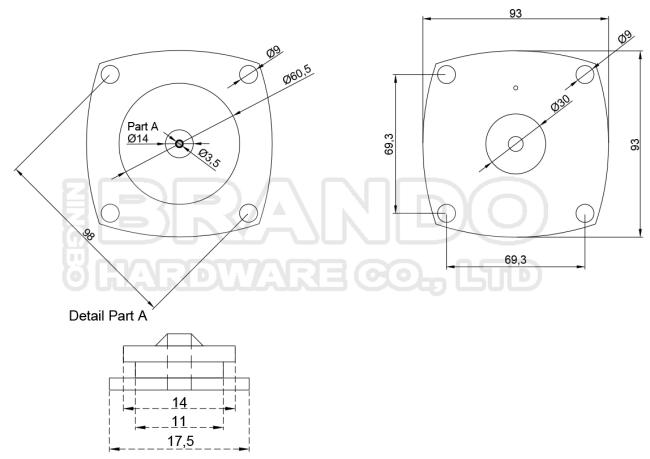

Dimension of 1.5'' Water Solenoid Valve Diaphragm:
Video of 1.5'' Water Solenoid Valve Diaphragm:
Pictures of Solenoid Valve Membrane Production:
