1/2'' SPU225A-04 Shako Type 2/2 Way Solenoid Valve SPU225A Series 220V
1/2'' SPU225A-04 Shako Type 2/2 Way Solenoid Valve SPU225A Series 220V
1. SPU225A Stainless Steel pilot / servo General purpose 2/2 Way normally closed solenoid valve.
2. Port sizes: 3/8" SPU225A-03, 1/2" SPU225A-04, 3/4" SPU225A-06, 1" SPU225A-08, 1 1/4" SPU225A-12, 1 1/2" SPU225A-14, 2" SPU225A-20.
3. Port Options: G, BSP, NPT.
4. Construction: Body die cast stainless steel, stainless steel internals one piece core tube, AISI430F armature and AISI302 springs that extend valve life.
5. Seal options: NBR, EPDM or FKM all metal disc reinforced for longer life.
6. Pressure Range: 0.5 to 10 Bar differential, Max working 15 Bar
7. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC
8. SPU225A solenoid valves are all 15 Bar pressure, function and leak tested prior to despatch.
9. Includes SPU225A-03, SPU225A-04, SPU225A-06, SPU225A-08, SPU225A-12, SPU225A-14 and SPU225A-20.

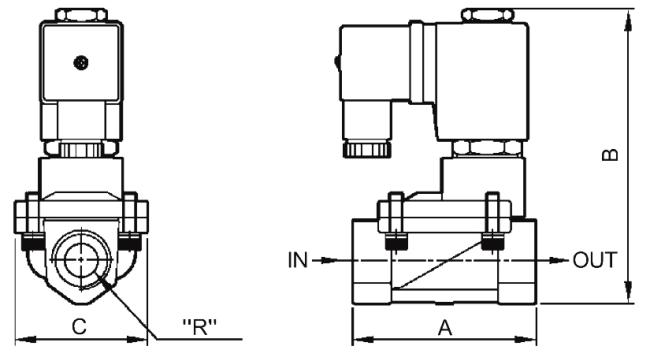

Main Dimension of SPU225A Series Stainless Steel Solenoid Valve:
Technical Data of SPU225A Series Stainless Steel Solenoid Valve:
| Model | PU225A-03 | PU225A-04 | PU225A-06 | PU225A-08 | PU225A-12 | PU225A-14 | PU225A-20 |
| SPU225A-03 | SPU225A-04 | SPU225A-06 | SPU225A-08 | SPU225A-12 | SPU225A-14 | SPU225A-20 | |
| Working Medium | Compressed Air, Water, Light Oil | ||||||
| Operation | Pilot Acting | ||||||
| Function | 2 Way, Normally Closed | ||||||
| Orifice Size (mm) | 13 | 13 | 25 | 25 | 38 | 38 | 50 |
| Port Size | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Body Material | Brass, Stainless Steel | ||||||
| Diaphragm Material | NBR, VITON, EPDM | ||||||
| Working Pressure | 0.5 to 10bar | ||||||
| Max. Pressure Resistance | 15bar | ||||||
| Wokring Temperature | -5 to +80℃ | ||||||
| Voltages | 220VAC, 110VAC, 24VDC, the other voltage is optional | ||||||
Brando Factory Production of Solenoid Valves:
As a solenoid valve supplier, BRANDO supplys general purpose solenoid valve for general mediums control. Such as water, air, gas, oil. Offering the cost-effective solution for your projects. Available in brass, stainless steel and PVC material for your projects.
● Size Range: 1/4" to 2" (1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4")
● Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
● Pressure: 0-10 bar / 0.3-16 bar
● Temperature: -10℃~180℃
● Material: Brass, Stainless Steel and PVC
● Structure: Direct Acting / Diaphragm / Pilot Operated
● Function: Normally Closed / Normally Open
● Connection Type: Threaded, Flanged, Tri Clamp
● Tolerance: ±10%
