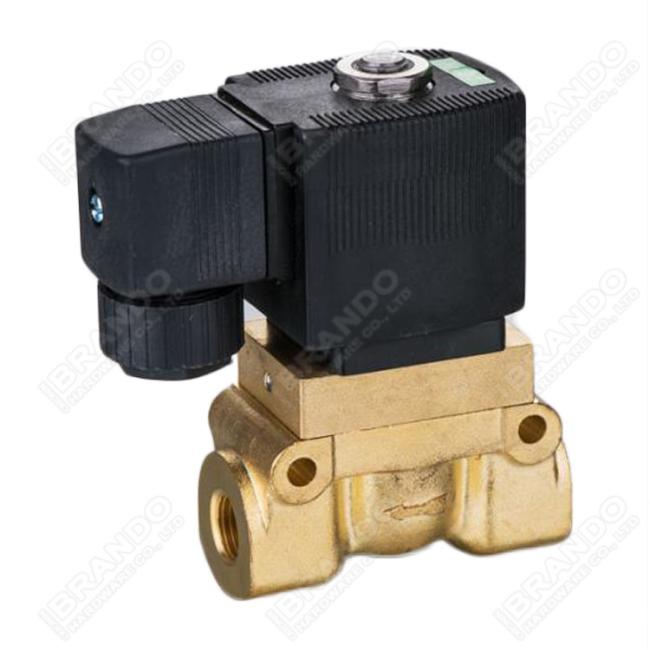

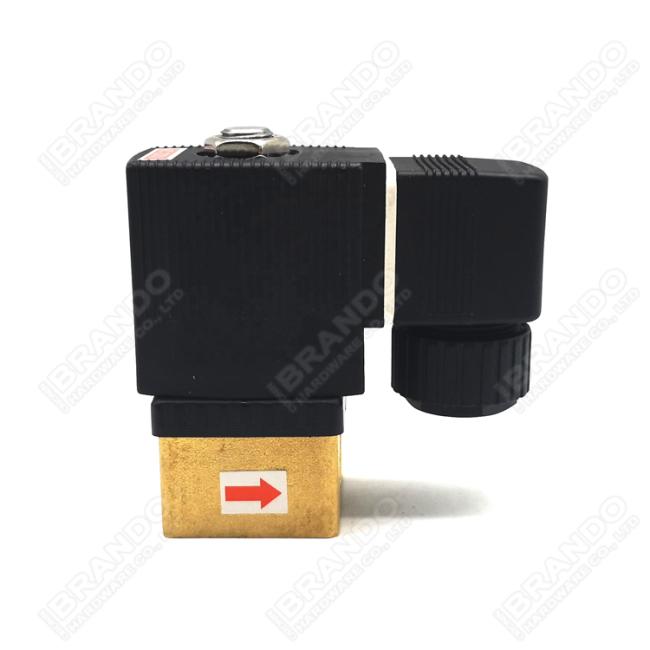

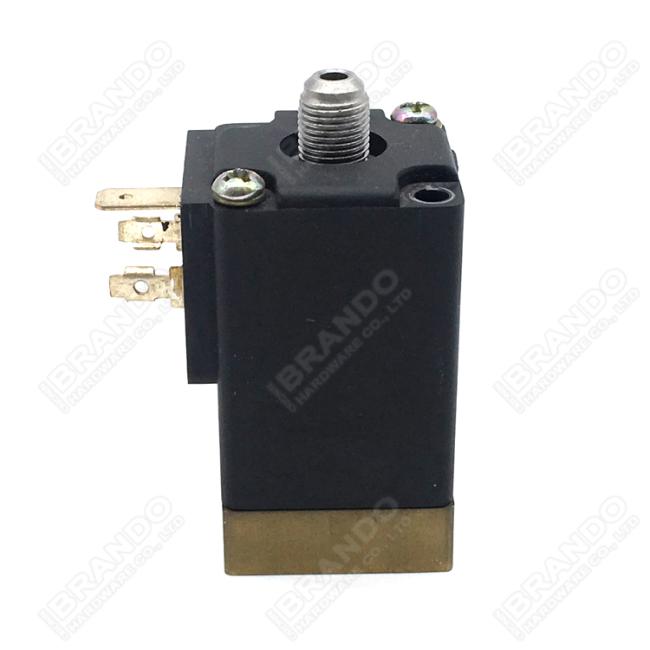

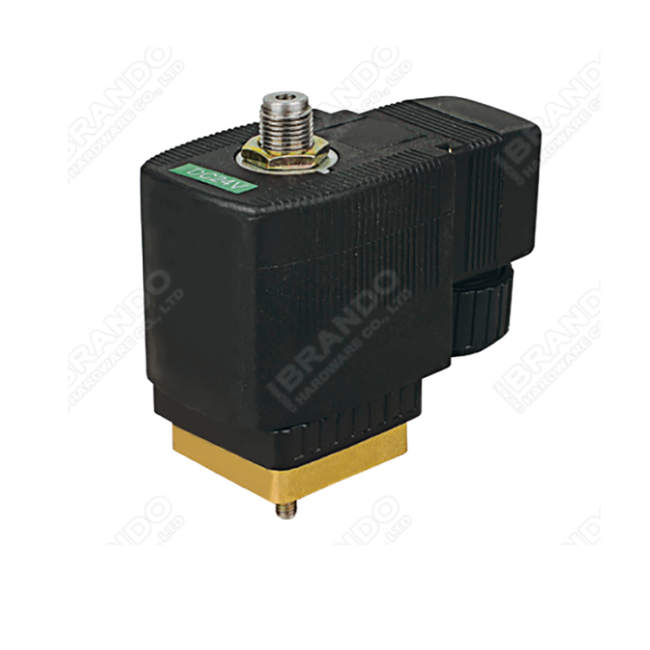

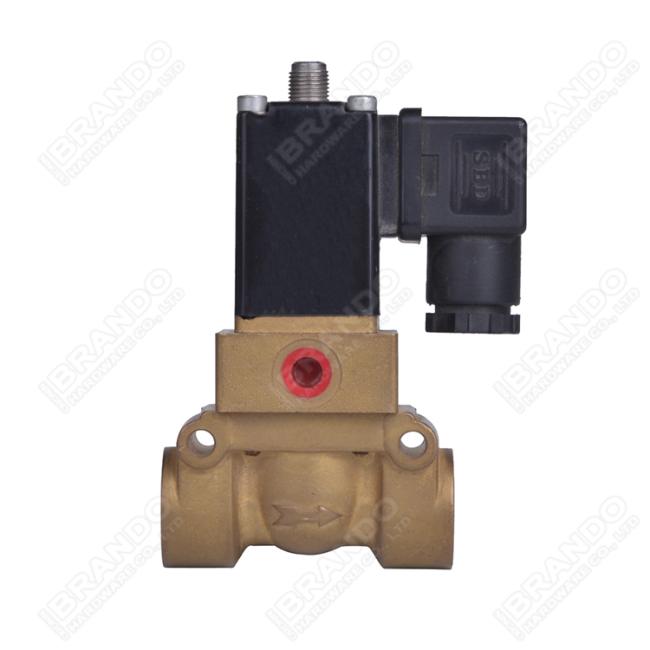

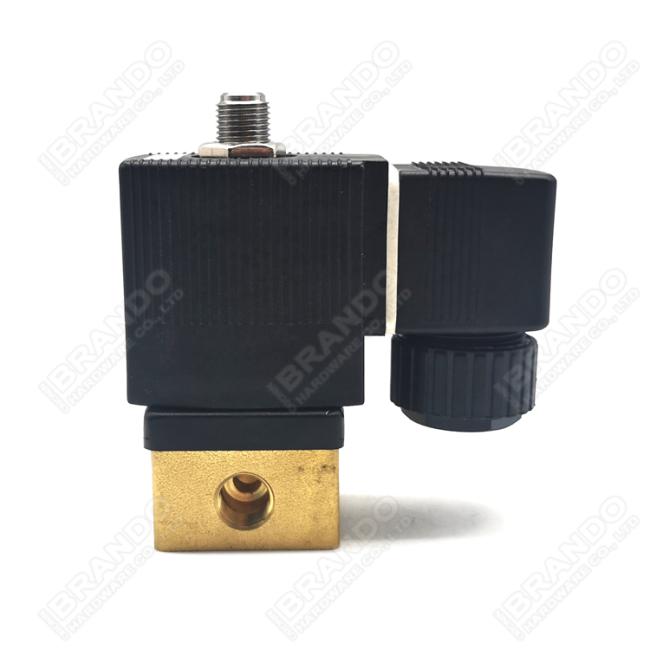

Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
The 6213 solenoid is a 2/2- way servo-assisted (semi-direct) solenoid valve. It is mainly used for liquid or gaseous media with little or no differential pressure. The operating process is supported by a spring coupled diaphragm and a plunger pilot control, which allows the valve to partially open without differential pressure. 6213 solenoid valve features a wide range of body materials, seal material, and voltages to meet the needs of your application. 6213 solenoid valve is similar to other servo-assisted valves like the 0290, 6281, 5282, and 0141 despite the differences in their opening/closing mechanism.
Technical Data of 6213 Solenoid Valve:
|
Model
|
Orifice Size
(mm)
|
Port Size
(Inch)
|
Working Pressure
(bar)
|
Medium Temperature
(℃)
|
Body Material
|

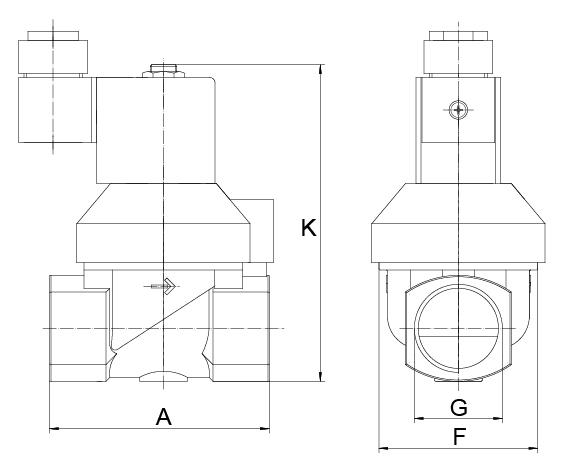

Dimension
|
||
|
A
|
F
|
K
|
||||||
|
6213
|
10
|
1/4''
|
0.3 to 10
|
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
|
Brass
Stainless Steel
|
50
|
32
|
90/85
|
|
10
|
3/8''
|
50
|
32
|
90/85
|
||||
|
13
|
3/8''
|
65
|
41
|
91
|
||||
|
10
|
1/2''
|
50/55
|
32
|
90
|
||||
|
13
|
1/2''
|
58/65
|
41
|
91
|
||||
|
13
|
3/4''
|
58/69
|
41
|
94
|
||||
|
20
|
3/4''
|
83
|
60
|
115
|
||||
|
20
|
1''
|
83
|
60
|
115
|
||||
|
25
|
1''
|
83
|
60
|
115
|
||||
