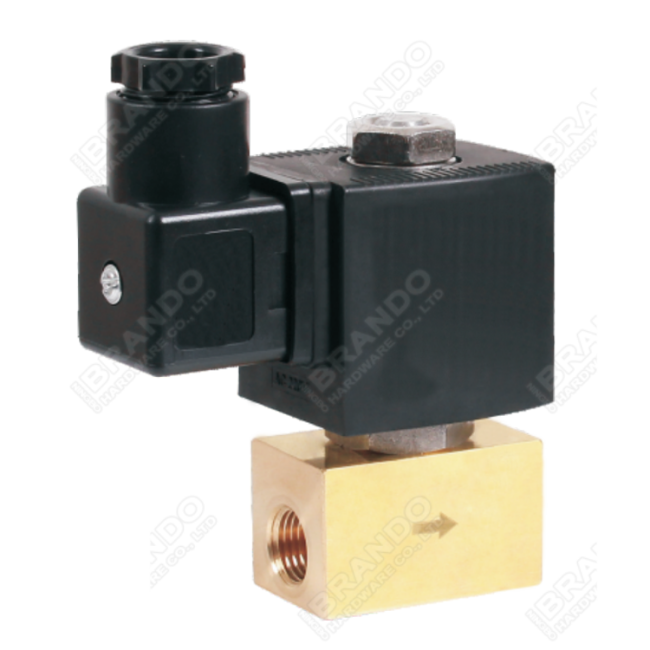

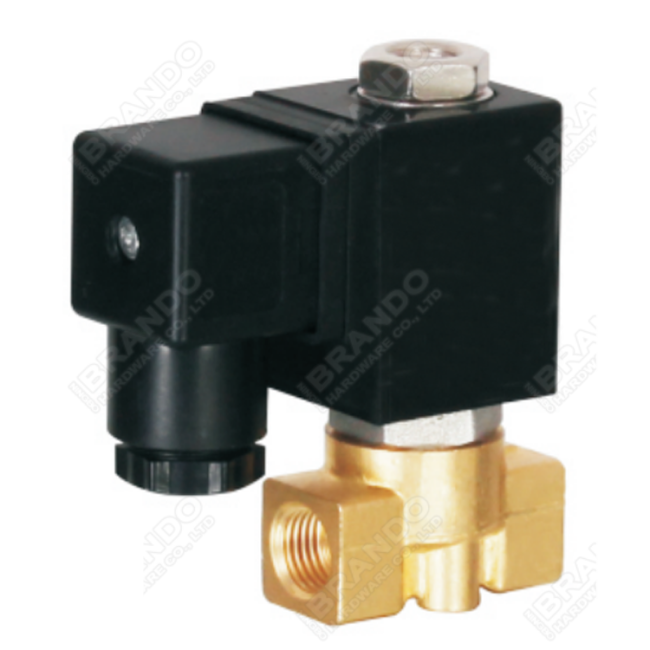

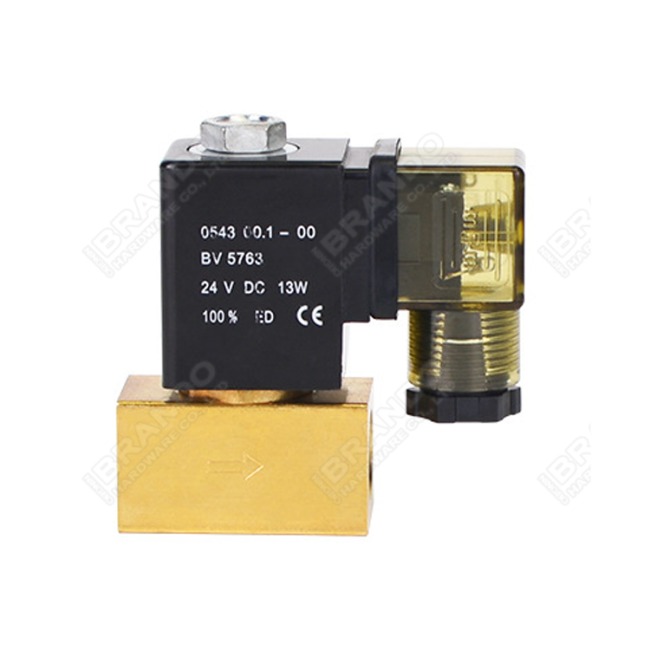

1/8'' Inch High Pressure Brass Solenoid Valve 100 bar 120 bar
1/8'' Inch High Pressure Brass Solenoid Valve 100 bar 120 bar
Product Features:
1. Working Medium: Air, Water, Gas, Liquid, etc
2. Max Working Pressure: 120 bar
3. Seal Material: PTFE
4. Body Material: brass
5. Port Size: 1/8''
6. Orifice Size: 1.0mm, 1.5mm, 2.0mm, 2.5mm
7.Function: 2 Way Normally Closed
8. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

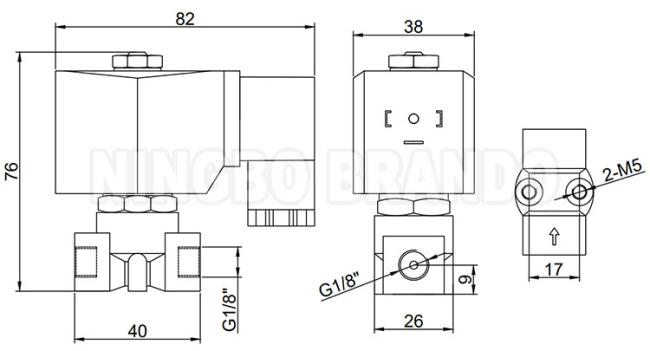

Main Dimension:
Technical Data:
|
Model No
|
Orifice
Size
(mm)
|
Port
Size
(Inch)
|
CV
|
Working Pressure
(bar)
|
Body Material
|
Seal Material
|
Function
|
|
H2S010B01
|
1.0
|
1/8''
|
0.04
|
0 to 120
|
Brass
|
PTFE
|
2 Way NC
|
|
H2S015B01
|
1.5
|
1/8''
|
0.1
|
0 to 90
|
|||
|
H2S020B01
|
2.0
|
1/8''
|
0.15
|
0 to 50
|
|||
|
H2S025B01
|
2.5
|
1/8''
|
2.5
|
0 to 35
|
Product Video:
More High Pressure Solenoid Valves:

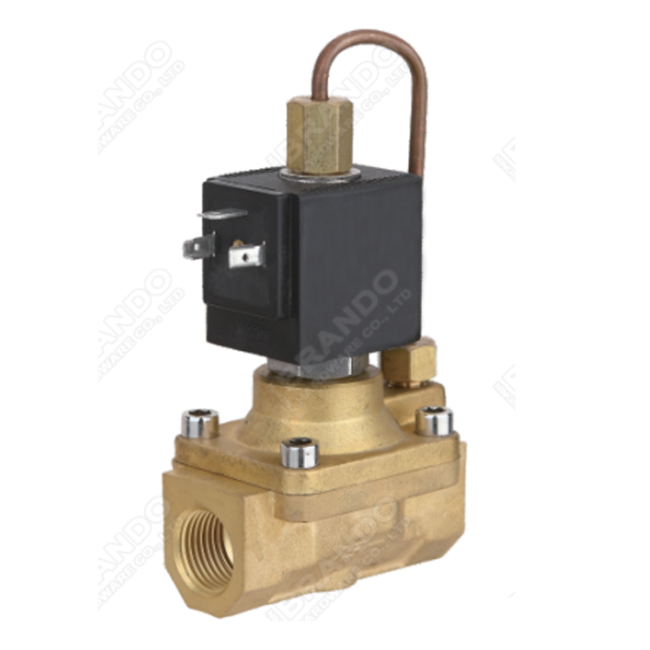

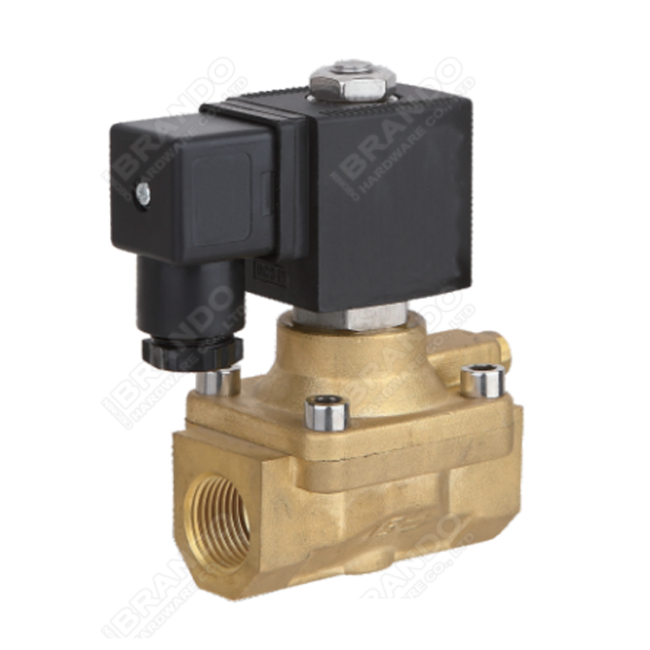

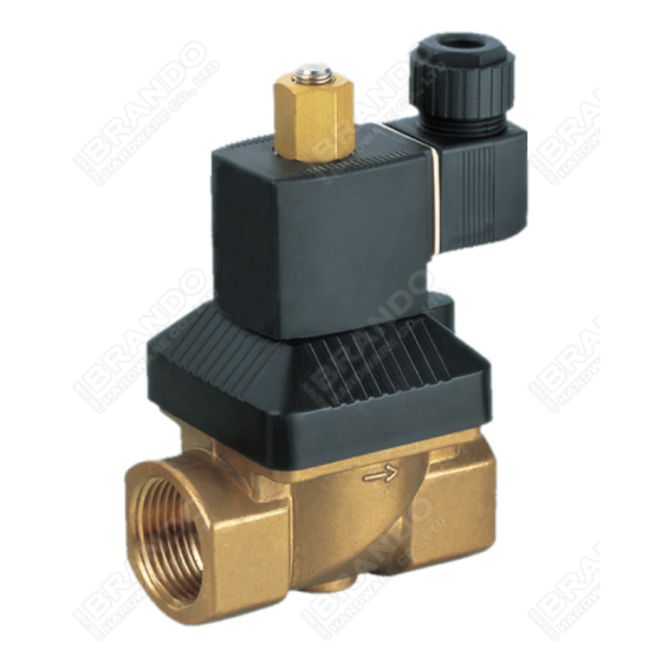

| Brass Solenoid Valves | |||
 |
 |
 |
 |
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
 |
 |
 |
 |
| MAX 50 bar | MAX 90 bar | MAX 120 bar | MAX 200 bar |

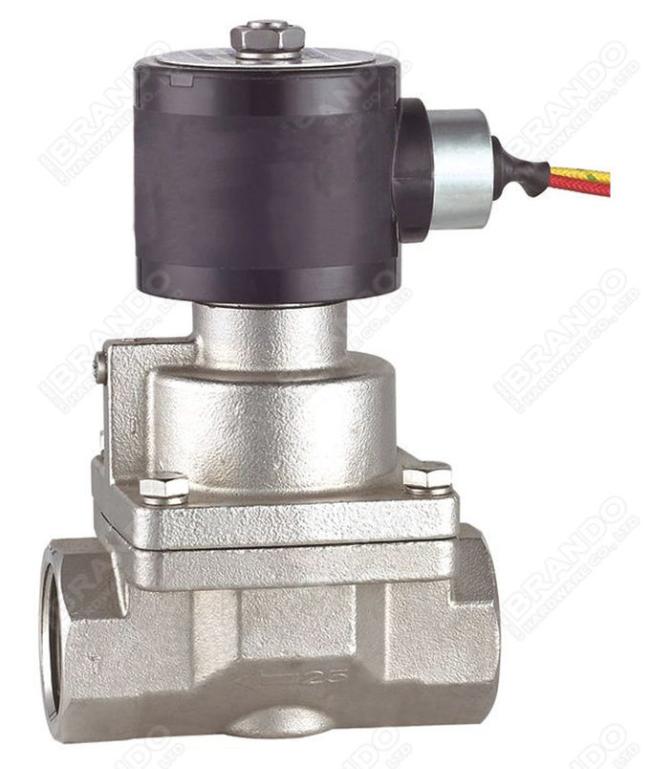

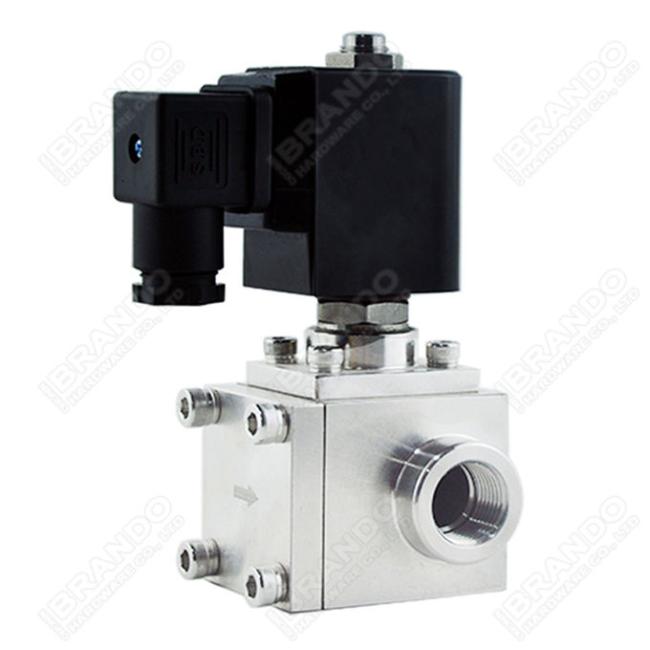

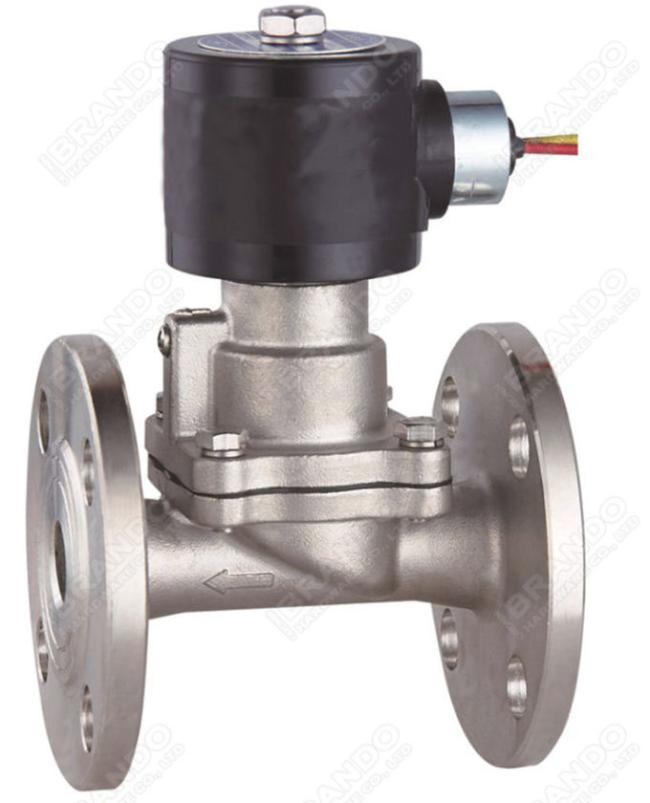

| Stainless Steel Solenoid Valves | |||
 |
 |
 |
 |
