1/2'' Tri Clamp Pneumatic Steam Angle Seat Valve DN15 PN16 Stainless Steel
1/2'' Tri Clamp Pneumatic Steam Angle Seat Valve DN15 PN16 Stainless Steel
Pneumatic angle seat valve is a 2/2 way pneumatically actuated valve that moves a piston actuator off its seat based on the pilot signal it receives. A separate pneumatic pilot valve controls the actuator that moves the valve piston up and down, opening or closing the valve. As the seat is positioned at an angle, it does not impede flow when the valve is fully open. It is widely used in various inductries to control air, water, steam, gas and liquids.
Technical Data:
|
Product Name
|
Pneumatic Angle Seat Valve
|
|
Port Size
|
1/2'' to 4''
|
|
Orifice Size
|
DN10 to DN100
|
|
Port Connection
|
Threaded, Flanged, Welded, Tri Clamp
|
|
Body Material
|
Stainless Steel 304, Stainless Steel 316
|
|
Seal Material
|
PTFE
|
|
Actuator Material
|
Plastic, Stainless Steel
|
|
Function
|
Single Acting Normally Closed
Double Acting Normally Closed
Double Acting Normally Open
|
|
Working Medium
|
Water, Air, Steam, Gas, Liquid, etc
|
|
Medium Temperature
|
-10 to +180℃
|
|
Ambient Temperature
|
-10 to +60℃
|
|
Working Pressure
|
0 to 1.6 MPa
|

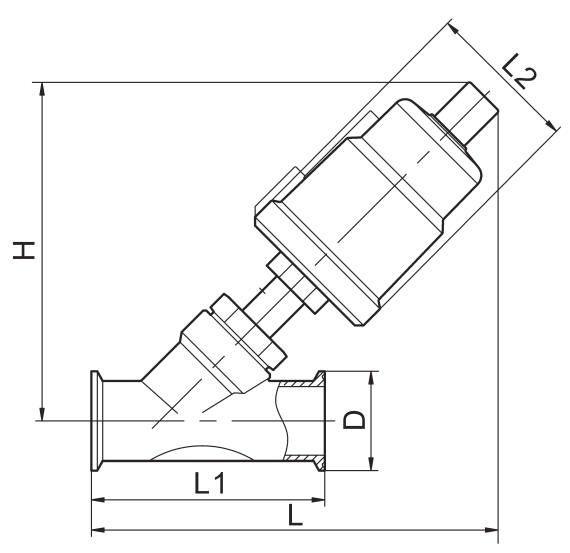

Main Dimension:
Our Production:
Related Products:
 |
 |
 |
 |
| Limit Switch Box | Pneumatic Valve | Pneumatic FRL | Electro Pneumatic Positioner |

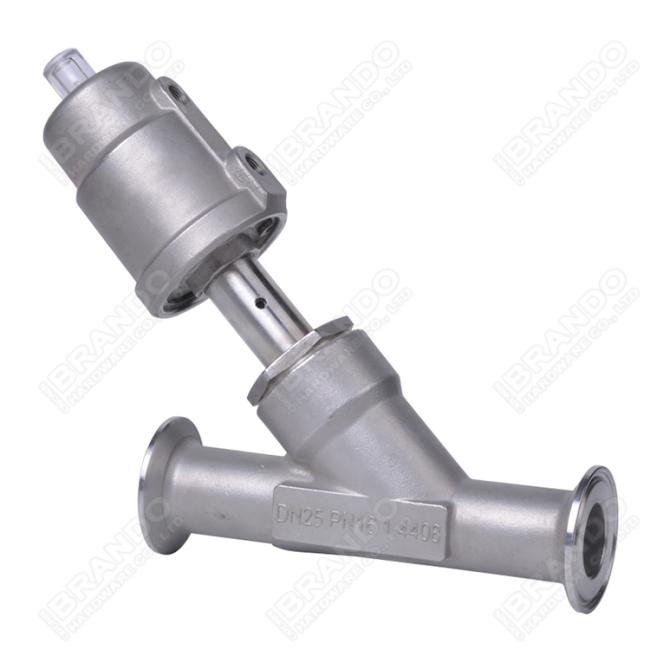

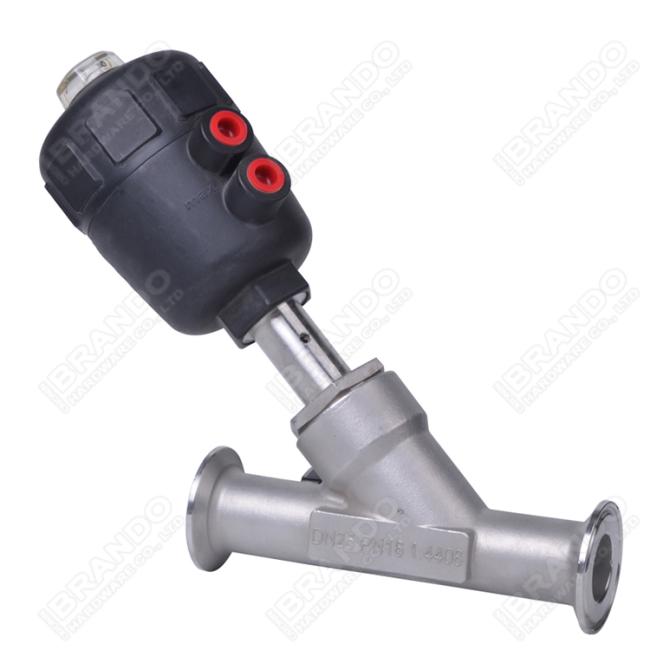

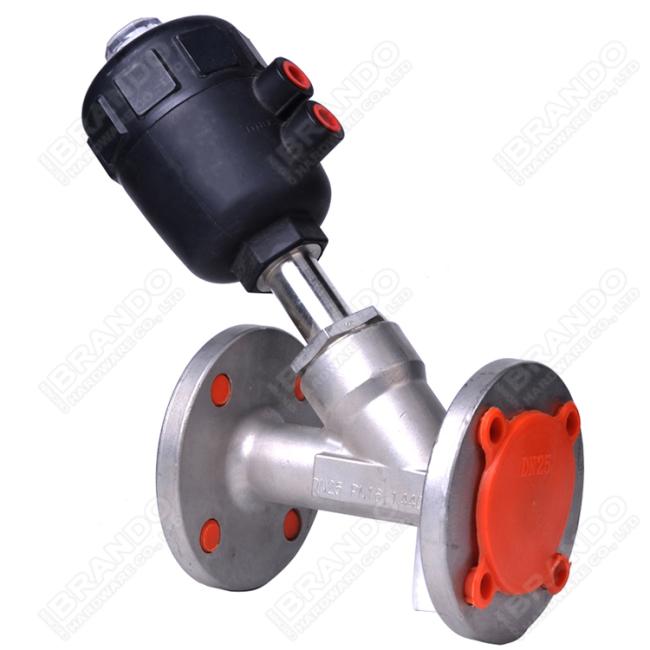

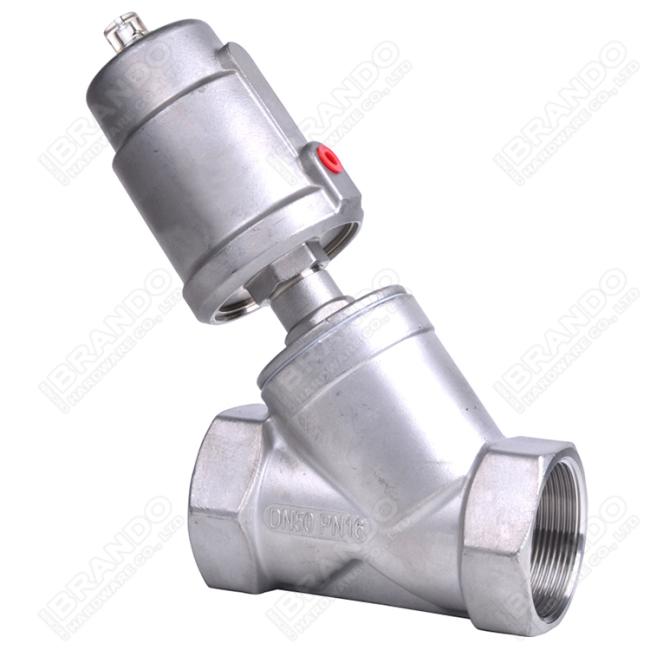

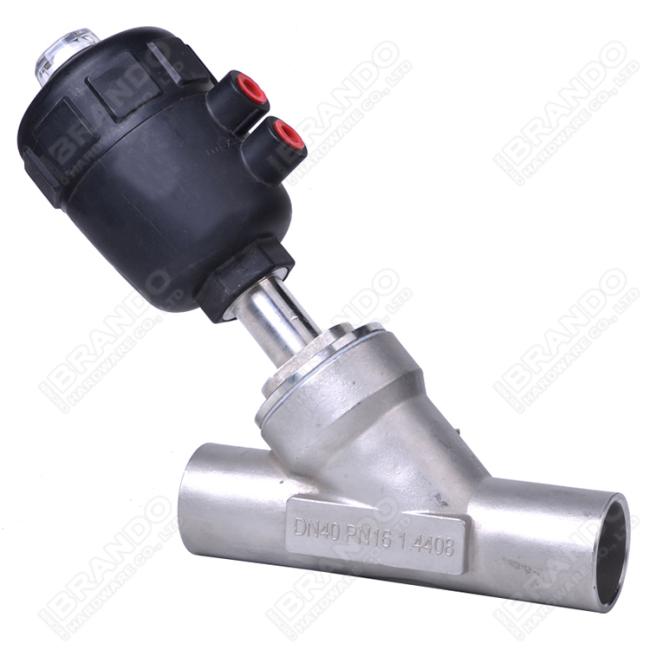

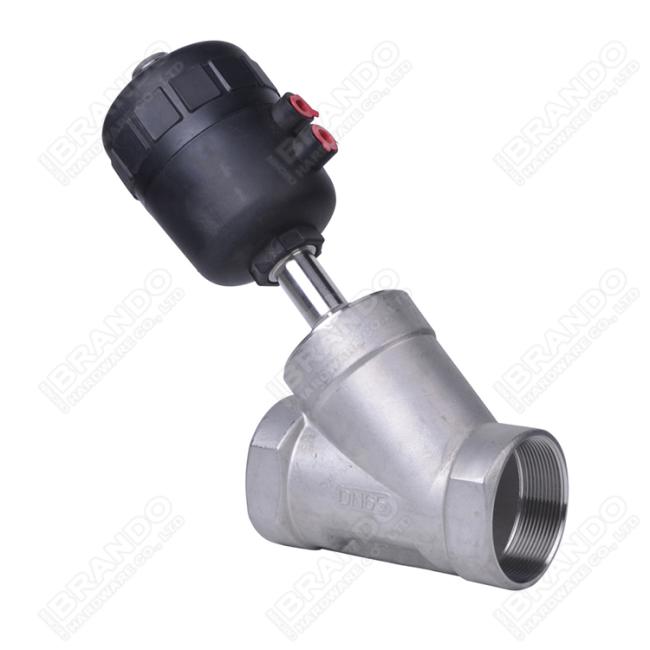

More Angle Seat Valves for you to choose:
 |
 |
 |
 |
 |
 |
