EVI 7/9 AMISCO Type Pneumatic Solenoid Valve Coil 12V 24V 110V 220V 22VA 20W
EVI 7/9 AMISCO Type Pneumatic Solenoid Valve Coil 12V 24V 110V 220V 22VA 20W
This solenoid coil is popularly used in pneumatic solenoid valves. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Power: 4VA, 5.5VA, 6VA, 8.5VA, 3W, 4.8W, 6W, 8W. A pneumatic solenoid valve is used to direct or stop the flow of compressed air in a pneumatic system. Sometimes called a pneumatic directional control solenoid valve, they are used in automation and control applications to actuate tools, cylinders and larger indu
Technical parameter of AMISCO type EVI 7/9 AMP 6.3x0.8 solenoid coil:
| Model number | BB09029516 |
| Reference number | EVI 7/9 AMP 6.3 x 0.8 |
| Normal voltage | DC12V/DC24V/AC220V (Other color can be customized) |
| Normal power | DC: 3-8W 6W AC: 4-8VA |
| Insulation class | H, F |
| Connection type | DIN43650B; 6.3mm x 0.8mm |
| Application | 4V series Pneumatic Solenoid Valve Coil Automatic Control |
| Weight | 71.5 g |
| Hole size | 9 mm |
| Height | 29.5 mm |

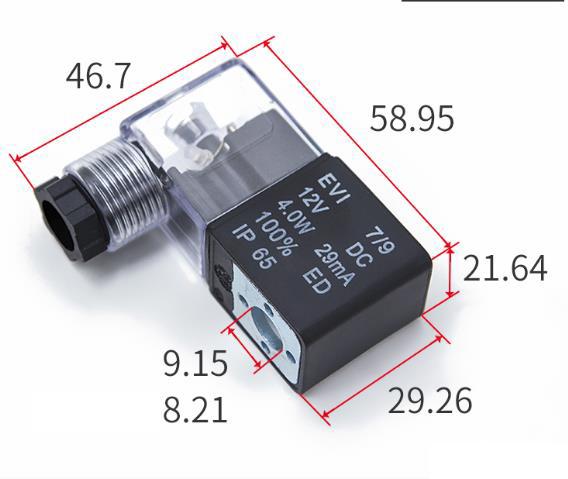

Main dimension of EVI 7/9 4V series pneumatic solenoid valve coils:

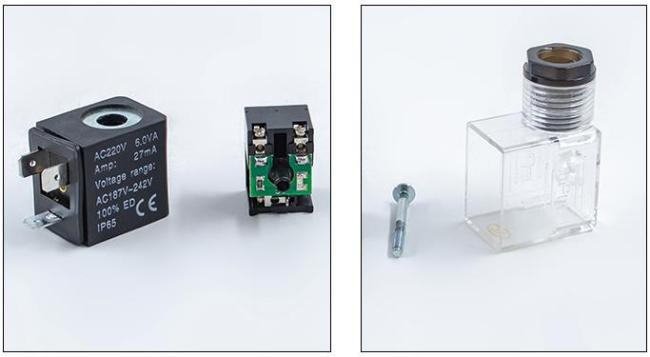

Deconstruction diagram of EVI 7/9 9 diameter electric magnetic coils:

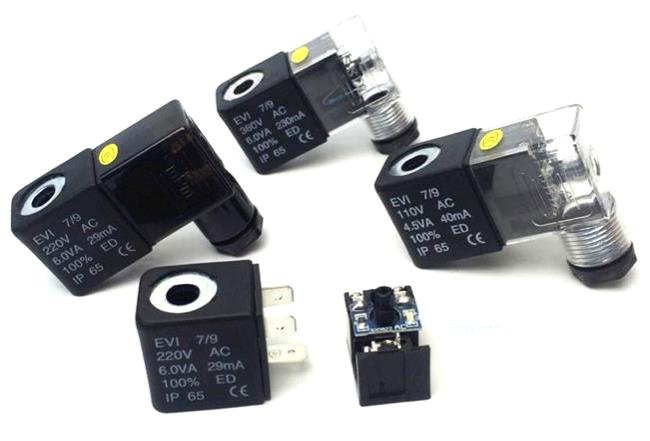

Providing different junction boxes of EVI 7/9 electromagnetic coils:
More Solenoid Valves for you to choose:
 |
 |
 |

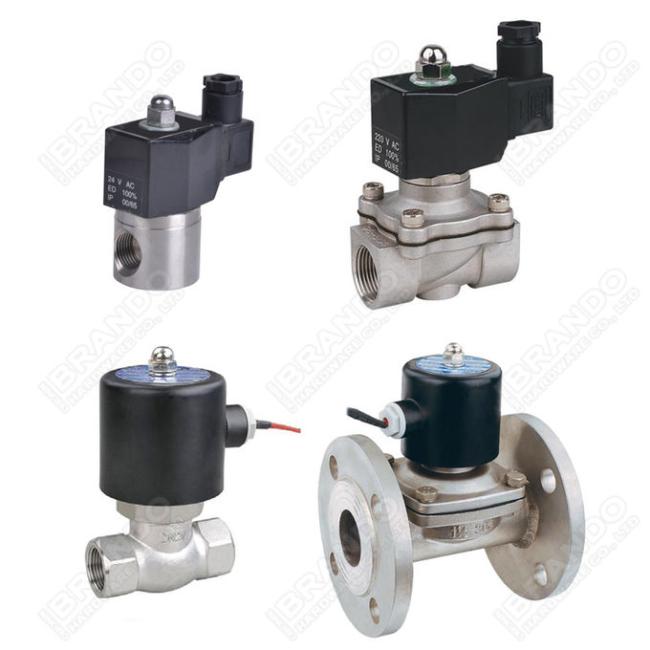

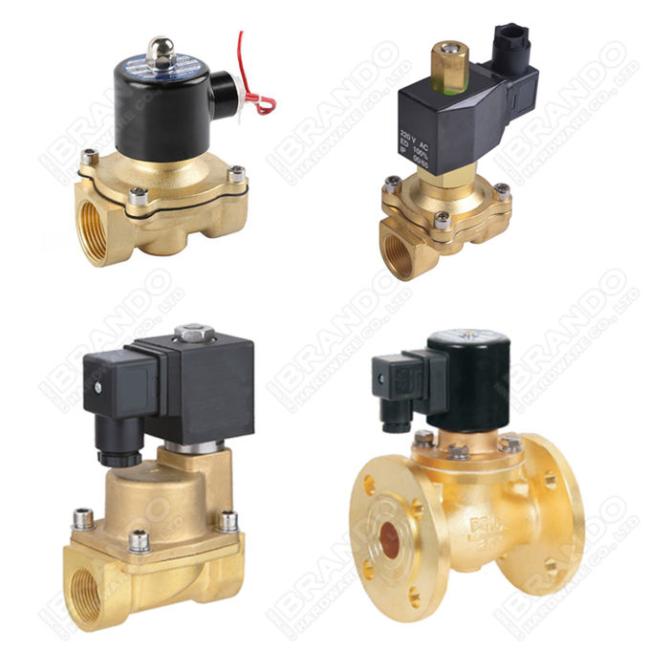

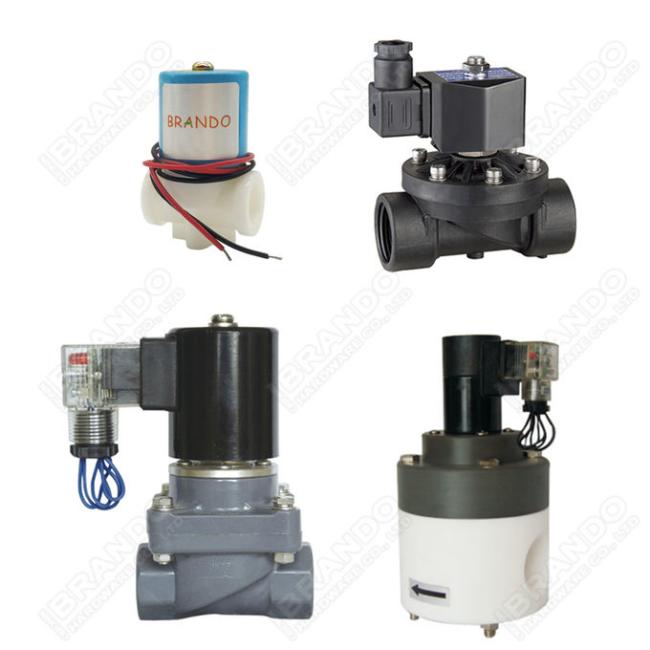

| Brass Solenoid Valve | Stainless Steel Solenoid Valve | Plastic Solenoid Valve |
