1/2'' Inch Steam Solenoid Valve 24VDC Normally Opened Stainless Steel

Product Features of Steam Solenoid Valve:

1. Working Medium: Steam, High Temperature Liquid, etc.
2. Working Meidum Temperature Range: 0 to +180℃
3. Working Pressure Range: 0.1 to 16 bar
4. Function, 2 Way Normally Closed, 2 Way Normally Open
5. Operation: Piston Pilot Operated
6. Body Material: Brass, Stainless Steel
7. Seal Material: PTFE
8. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
9. Thread Type: G, NPT
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

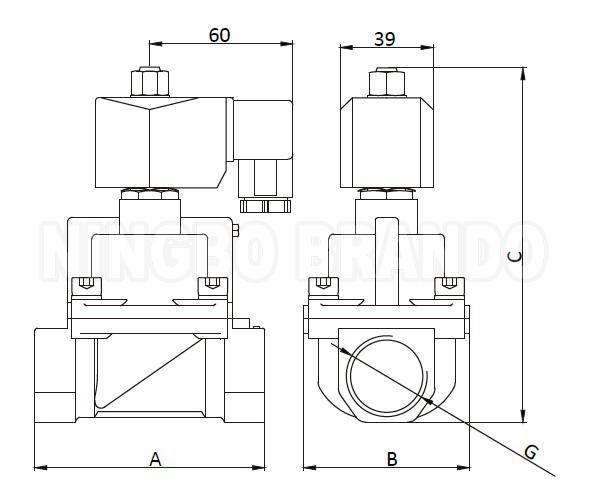

Main Dimension of Steam Solenoid Valve:

Technical Data of Steam Solenoid Valve:

Brando Factory Production of Solenoid Valves:

More Steam Solenoid Valves for you to choose:

Brass Solenoid Valves

Stainless Steel Solenoid Valves

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
