Air Compressor Auto Drain Valve Electronic Digital Timer IP65 DIN 43650 Form A
Air Compressor Auto Drain Valve Electronic Digital Timer IP65 DIN 43650 Form A
Solenoid mounted sandwhich timers which fit insitu between the solenoid valve coil and DIN plug. Available in analgoue and digital variants. Easy to use, install and maintain. Solenoid valve timer can be used to control your solenoid valves according to a desired schedule. They can be used for example for air dryers, shower timers, condensate drains, lubrication systems etc. We offer analog and digital timers, both suitable for AC and DC.
Technical data of Solenoid Valve Timer:
|
Supply voltage
|
24V to 240V AC/DC 50Hz/60Hz
|
|
Absorption current
|
4mA Max
|
|
Operating temperature
|
-10℃ to +50℃
|
|
Class protection
|
IP65-EN 60529
|
|
Switch holding voltage
|
400V Max
|
|
Switch capacity
|
1A
|
|
Inrush current
|
10A for 10ms
|
|
Duty cycle
|
100%ED
|
|
Switch life
|
3x10^8
|
|
Time ON
|
from 0.5 to 10s
|
|
Time OFF
|
from 0.5 to 45min
|
|
Indicators
|
Yellow LED
|
|
Manual override
|
Test
|
|
Termination
|
DIN43650A
|

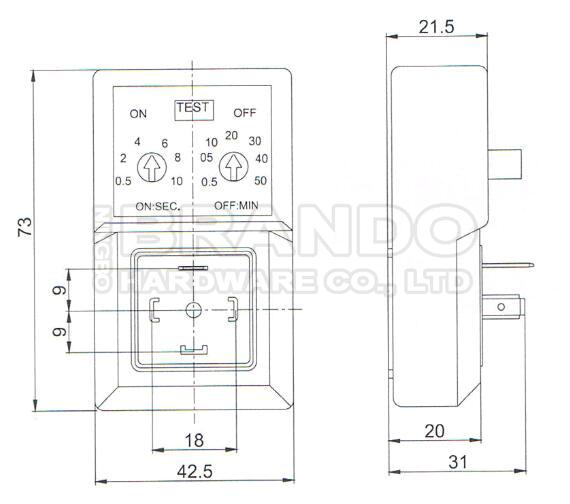

Dimension of Solenoid Valve Timer:
Product video of Solenoid Valve Timer:
More Solenoid Valve Timers for you to choose:
 |
 |
 |
 |
More Products for Air Compressor Auto Drain Valve:
 |
 |
 |
| Auto Drain Valves | Solenoid Valve Coil | Solenoid Valve Armature |
