Solenoid Coil for 6013 6014 6213 5404 Electromagnetic Valve 12V 24V 110V 220V

Solenoid Coil for 6013 6014 6213 5404 Electromagnetic Valve 12V 24V 110V 220V

This solenoid coil is popularly used in various Burkert solenoid valves, for example, 6013A, 6014 C, etc. The coil is connected together with a 2508 DIN43650A connector. The standard coil voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. The standard coil power is 8W, 11W, 15W. Other voltages and powers can be customized according to your requirements.

Technical Data:

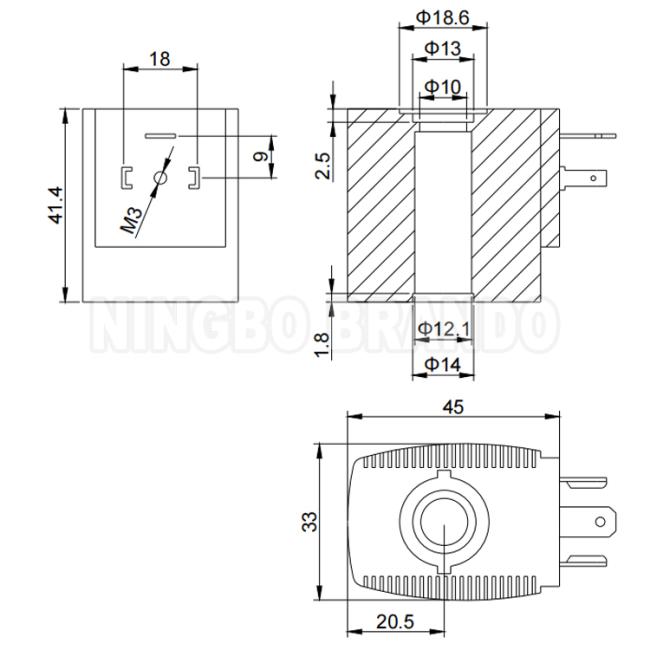

Main Dimension:

Our Production:

FAQ: How to choose a matching solenoid coil?

1. Voltage:
The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC. If it is AC voltage, the frequency needs to be provided, because the same coil 50Hz and 60Hz power difference is about 1.2 times.
2. Power or Resistance:
3. Dimension: Outer diameter and height of the solenoid armature or solenoid valve coil’s aperture and height.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leading type, standard interface, etc.
6. Application: Some special application areas require the use of specially designed Solenoid coils. Different general. applications, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
