AMISCO Type EVI 3P/16 Solenoid Valve Coil 230VAC 220VAC 110VAC 24VDC 12VDC 26W
AMISCO Type EVI 3P/16 Solenoid Valve Coil 230VAC 220VAC 110VAC 24VDC 12VDC 26W
The AMISCO EVI 3P/16 is a compact, high-performance solenoid valve coil designed for hydraulic and pneumatic fluid control systems. It is widely used across industrial equipment to precisely regulate the flow of liquids or gases.
Key Specifications
Tube Diameter: Fits 16mm solenoid tubes
Power Rating: 26W (Direct Current) or 28VA (Alternating Current)
Voltage Options: Available in 12VDC, 24VDC, 110VAC, and 220V/230VAC
Connector Type: DIN 43650 Form A plug
Ingress Protection: Typically IP65 (dust-tight and protected against water jets)
Insulation Class: Class H (rated for high-temperature environments)
Common Applications
Hydraulic check valves and directional control valves
Heating, ventilation, and air conditioning (HVAC) systems
Industrial pneumatic and hydraulic machinery

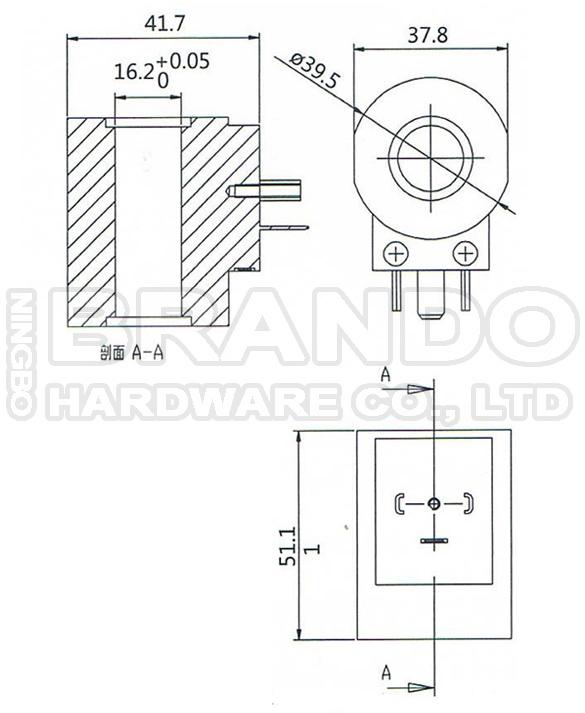

Dimension of Hydraulic Solenoid Valve Coil:
|
BRANDO Model
|
BB16050020
|
|
Voltages
|
12VDC, 24VDC, 110VAC, 220VAC
|
|
Power
|
26W
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
Insulation Class
|
F, H
|
|
Protection Class
|
IP65
|
Our Production:
More Hydraulic Solenoid Coils fo you to choose:
 |
 |
 |
 |
 |
 |
 |
 |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
