6VDC LPG CNG Automobile Part Injector Rail Solenoid Coil DC6V 58W
6VDC LPG CNG Automobile Part Injector Rail Solenoid Coil DC6V 58W
solenoid valve coil, magnetic valve coil, solenoid valve importance parts, pilot of solenoid valve
1, Solenoid Coil, Electromagnetic Valve Coil
2, Hole Diameter (aperture) 9.5 mm
3, Height Diameter 15.0mm
3, Normally Used on Solenoid Valve of CNG Application
4, Connection DEUTCH
Detailed Specifications:
Item No.: BB09515006
Normal Voltage: DC6V
Normal Power: DC58W
Insulation Class: H
Connection Type: DEUTCH
Installation Dimension: Ø9.5XH15.0
Application Example: CNG valve

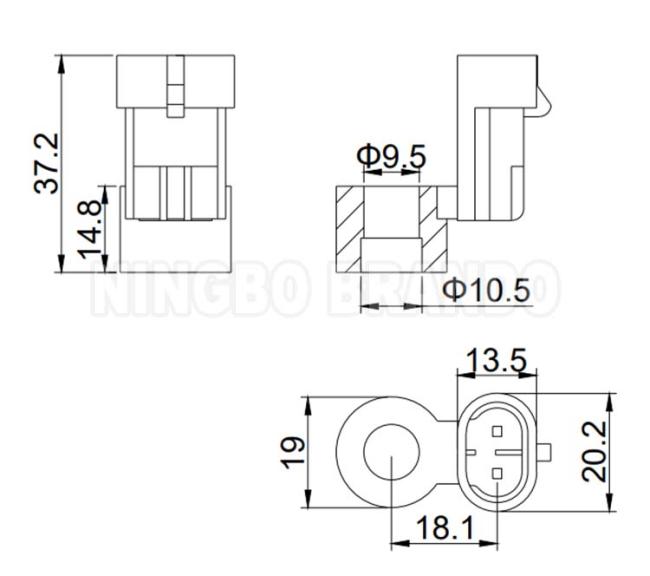

Dimension of BB09515006 Solenoid Valve Coil :
Technical Data:
|
Model
|
BB09515006
|
|
Hole Size
|
9.5mm
|
|
Height
|
14.8mm
|
|
Width
|
19.0mm
|
|
Connector
|
DEUTCH
|
|
Insulation Class
|
H
|
|
Protection Class
|
IP65, IP67, IP68
|
|
Normal Voltage
|
DC6V
|
|
Power
|
58Watt
|
|
Application
|
Injector Rail
|
