2 Way Normally Closed SS304 Solenoid Valve Armature Plunger Tube

2 Way Normally Closed SS304 Solenoid Valve Armature Plunger Tube

This is a set of 2 way normally closed solenoid valve armature assembly, including 1 x stainless steel 304 guide tube, 1 x magentic plunger with NBR seal and 1 x stainless steel spring. The plunger tube outer diameter is 10mm, so it is suitable to 10mm inner hole diamter solenoid coil. The standard plunger's seal material is NBR, but HNBR, VITON, EPDM, Silicone are all available to customize.

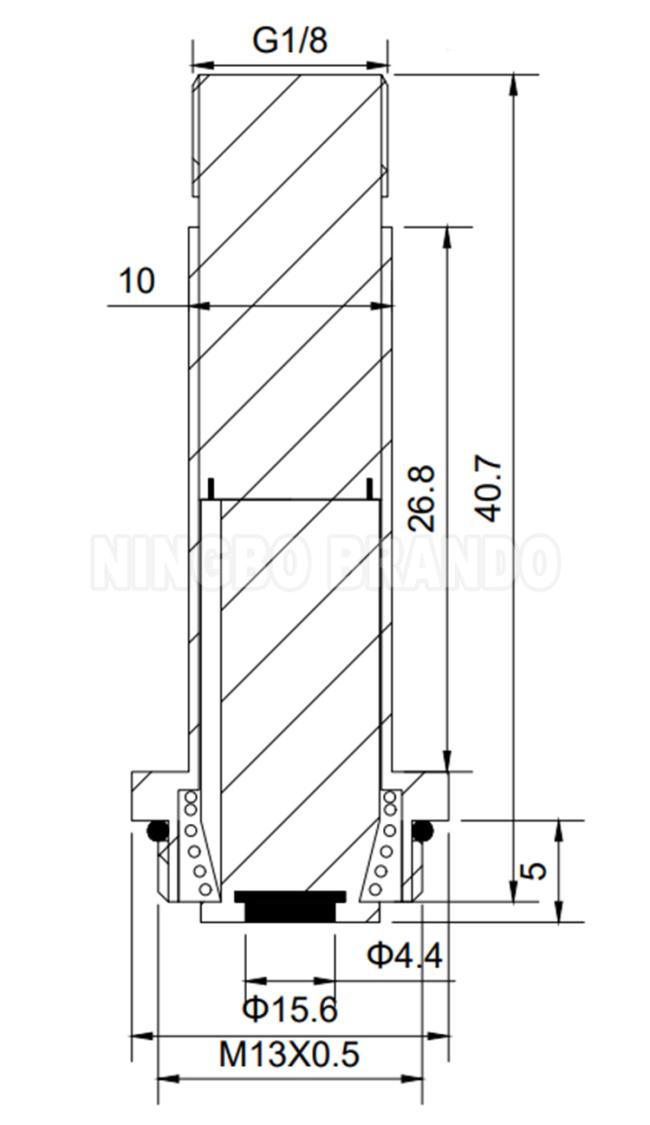

Dimension of Armature Assembly:

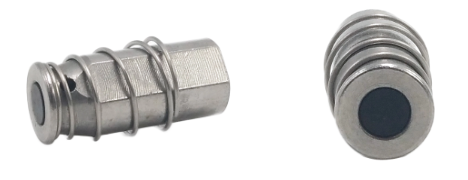

Details of Solenoid Valve Armature Assembly:

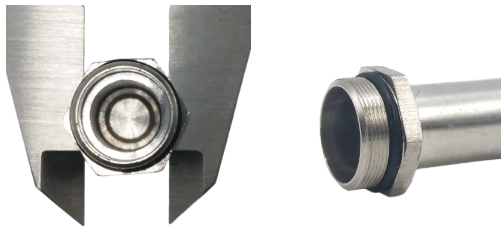

       Copper Shading Ring                          Thead Seat

               Plunger Slot                                   NBR Seal

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
