3 Way Solenoid Armature for OLAB Coffee Maker Steam Solenoid Valve Parts

3 Way Solenoid Armature for OLAB Coffee Maker Steam Solenoid Valve Parts

A solenoid valve is an electrically controlled valve that shuts off or allows fluid flow from one point to the other. The valve consists of 3 main components: a solenoid coil, a solenoid armature and a valve body.

Solenoid coil consists of several turns of enameled wire, taking a cylindrical shape and hollow from the inside. When current flows through the coil, a corresponding magnetic field is produced.

Solenoid armature is the pressure-tight internal part of a solenoid valve. We produces its components from round material in brass, as well as from stainless steel using diverse alloys. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.

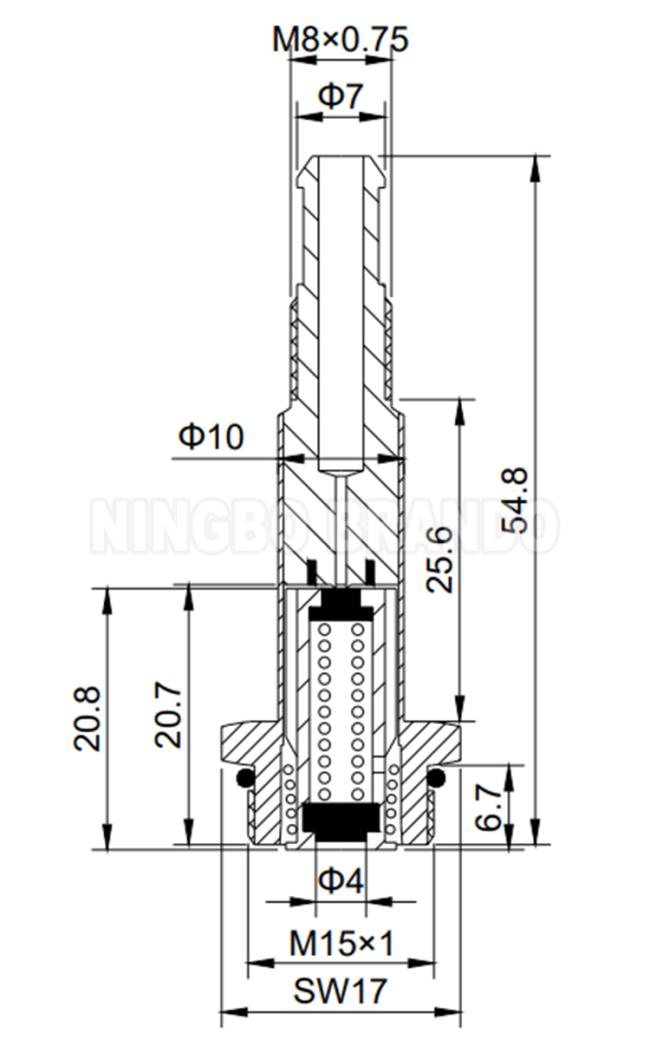

Dimension of Armature Assembly:

Fitted Coil:

	BRANDO Model	BB10029502
	Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
	Power	4-20VA, 3-6W
	Other voltage and power can be customized
	Connector	DIN43650B

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
