Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material
Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material
Specification:
1, Port size: 1/4 " ~2 "
2, Working Medium: gas, water, oil, weak acid & alkali
3, Valve Body: Brass
4, Valve Control Style: NC (normal close) or NO(normal open)
5, Orifice Size: 10,13,20,25,40,50mm
6, Working Pressure: 0.03~1.0MPa / 0.07~1.6MPa
7, Seal Material: NBR,EPDM,VITION
8, Ambient Temperature: -10~55°C
9, Medium Temperature: -10~90°C
10, Voltage: DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, 50/60HZ
Parameter:
| Part No. | 6213-02 | 6213-03 | 6213-04 | 6213-04 | 6213-06 | 6213-06 | 6213-08 |
| DN | 10 | 14 | 25 | ||||
| Port Thread | G1/4" | G3/8" | G1/2" | G1/2" | G3/4" | G3/4" | G1" |
| Working pressure | 0.03--0.1 MPa | ||||||
| Ambient temperature ℃ | -10~55°C | ||||||
| Medium temperature ℃ | -10~90°C | ||||||
| KV value m³/h | 2 | 3.6 | 8.3 | 8.3 | 11 | 11 | |
| Power AC (VA) | 14 | ||||||
| Power DC (W) | 8 | ||||||
| Frequancy | ≥1 | ≥0.5 | |||||
| Voltage | AC:50HZ 24V 36V 110V 220V DC:24V 12V | ||||||

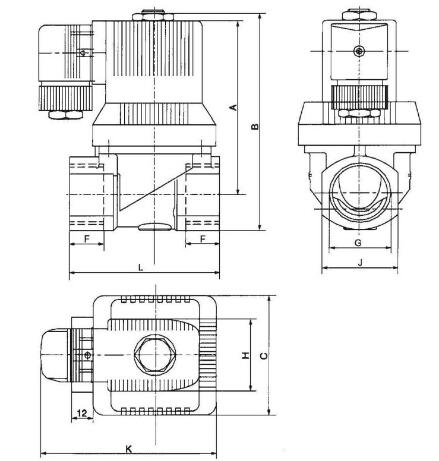

Overall Dimensions:
| Part Number | G | C | F | L | J | A | B | H | K |
| 6213-02 | G1/4" | 38 | 14 | 50 | 26 | 71 | 85 | 35 | 71 |
| 6213-03 | G3/8" | 38 | 14 | 50 | 26 | 71 | 85 | 35 | 71 |
| 6213-04 | G1/2" | 38 | 14 | 50 | 26 | 71 | 85 | 35 | 71 |
| 6213-04 | G1/2" | 45 | 16 | 58 | 31 | 82 | 96 | 35 | 80 |
| 6213-06 | G3/4" | 45 | 16 | 58 | 31 | 82 | 96 | 35 | 80 |
| 6213-06 | G3/4" | 65 | 18 | 82 | 41 | 96 | 117 | 35 | 90 |
| 6213-08 | G1" | 65 | 18 | 82 | 41 | 96 | 117 | 35 | 90 |
Welcome your any question, we will response at once.
We also have many types solenoid valve, welcome your ask!
