Pneumatic Air Solenoid Valve Armature Assembly Core Tube And Plunger
Pneumatic Air Solenoid Valve Armature Assembly Core Tube And Plunger
This solenoid armature is popularly used in 4V series pneumatic solenoid valves. A pneumatic solenoid valve is used to direct or stop the flow of compressed air in a pneumatic system. Sometimes called a pneumatic directional control solenoid valve, they are used in automation and control applications to actuate tools, cylinders and larger industrial valves.

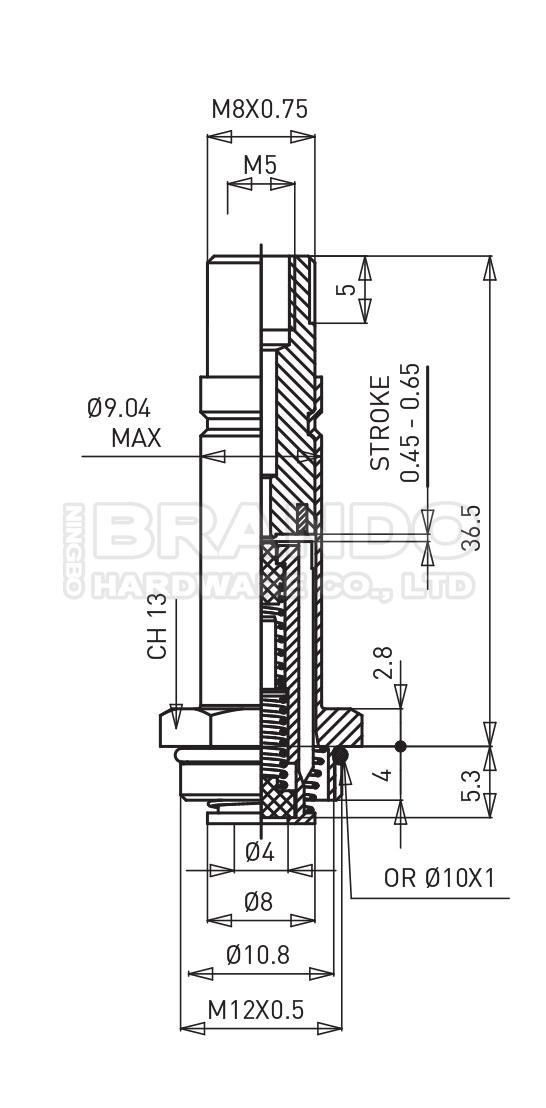

Dimension & Data of Pneumatic Solenoid Valve Armature, Coil:
|
BRANDO Model
|
BAPC309029008
|
|
2 Way or 3 Way
|
3 Way
|
|
NC or NO
|
NC
|
|
Plunger Tube Material
|
Brass
|
|
Moving Core Material
|
430FR
|
|
Shading Ring Material
|
Copper
|
|
Seal Material
|
NBR
|
|
Mounting Type
|
Flange
|
|
BRANDO Model
|
BB09029516
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|
Power
|
AC:4-8VA DC:3-8W
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Connector
|
DIN43650B
|
