2 Way NC Water Solenoid Valve Armature Assembly Plunger Tube And Core
2 Way NC Water Solenoid Valve Armature Assembly Plunger Tube And Core
This solenoid armature is popularly used in water solenoid valves, like 2W025-06, 2W025-08, 2S025-06, 2S025-08. Solenoid valves consist of a coil, plunger and sleeve assembly. Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

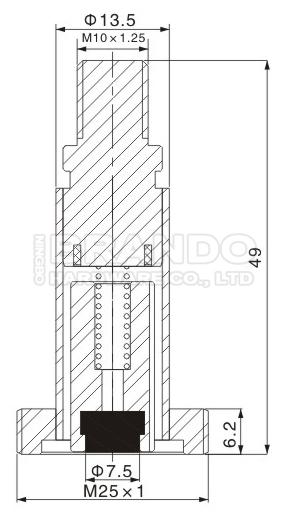

Dimension & Data of Water Solenoid Valve Armature, Coil:
|
BRANDO Model
|
BAPC213532039
|
|
Function
|
2 Way Normally Closed
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, EPDM, FKM
|
|
Connection Type
|
M25X1 Thread
|
|

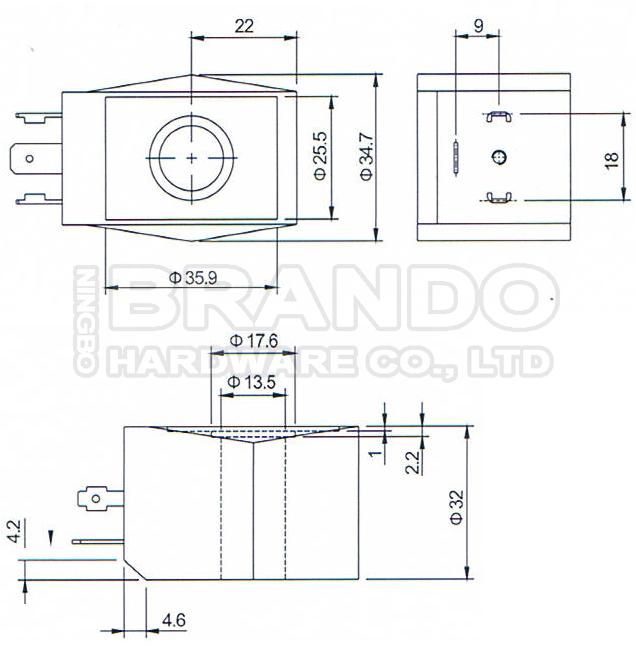

BRANDO Model
|
BB13531508
|
|
Ordering Code
|
AB310
|
|
Voltage
|
12VDC, 24VDC, 24VAC,
110VAC, 220VAC
|
|
Power
|
15VA, 12W
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Connector
|
DIN43650A
|
Video of Armature For Water Solenoid Valve:
BRANDO Solenoid Valve Armature Production Video:
