142 Center Distance Pneumatic Valve Diaphragm For Automobiles 0.2MPa~0.6MPa

142 Center Distance Pneumatic Pulse Jet Solenoid Valve Diaphragm

142 Center Distance Pneumatic Pulse Jet Solenoid Valve Diaphragm is easy for customer to use.The color can be white and black or other you like. If any problem occur during production or you meet quality problem when you are using our goods, inform us at once, we will offer you best solution.

Description of diaphragms:

1, Diaphragm has been widely used in automobiles, controllers, household gas facilities and appliances with form of pressure sensors, actuators, On-Off switchs

2, Fabric-reinforcements in rubber diaphragms utilize a layer of an engineered fabric material as parts of the diaphragm construction. This layer of fabric give tremendous design felxibity

3, A very thin-walled diaphragm can withstand high pressures while remaining very flexible and responsive to minior pressure variations

4, Fabrics made of polyester, nylon and silk ard commonly used for most applications, fabric used for those applications exposed to high temperature. For those applications that require extremely high strength

5, Diaphragm (rubber or fabric reinforcement in rubber diaphragms) is a precision functional part used for checking pressure or changing fluid pressure into driving power

6, Fabric-reinforced diaphragms offer advantanges of no leakage, no lubrication, no breakaway force, no friction, high strength, functionality over wide pressure ranges, low cost, simple design, versatility

7, All types of elastomers, such as nitrile, EPDM, fluorocarbon, neoprene, silicone, fluorosilicone, can be used in the fabric-reinforced diaphragms.

Fabric-Reinforced Diaphragms Offer:

1. High Strength: The strength of the diaphragms is high

2. No Leakage: The quality is good and the things will not out of the machine

3. Low Cost: The cost of the diaphragms is low

4. Functionality Over Wide Pressure Ranges

5. Simple Design: The design is simple and you can understand it well

6. No Breakaway Force

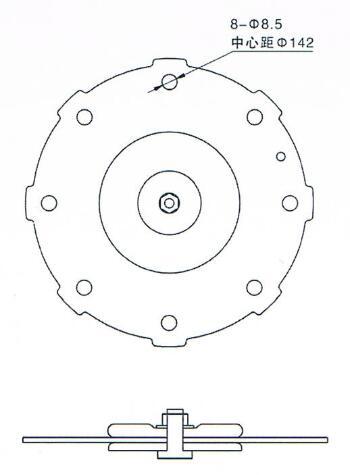

The Drawing of Diaphragm:

Diaphragm installed on pulse valve:

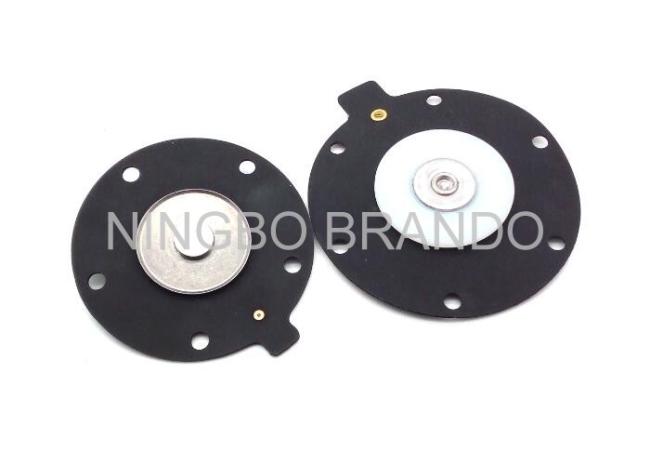

We also produce other diaphragms.

About Service:

1. Contact us via email, phone calling, skype, or other chatting methods, we will response at onc

2. If any problem occur during production or you meet quality problem when you are using our goods, inform us at once, we will offer you best solution

3. We offer professional order operation service: Same sales person follows the order from discussing step to the end of you get the goods of order

Welcome your any question, we will response at once. We also can produce as customized.

Welcome your drawing or sample.
