Pulse Valve Repair Kit Solenoid Valve Diaphragm With Center Distance 98mm
Solenoid Valve Diaphragm Center Distance 98mm Mostly Used for Repair Kit of DMF-Z-40S DMF-Y-40S Pulse Valve
D40 diaphragm is popullar used as repair diaphragm kits for BFEC pulse valve DMF-Z-40S, DMF-Y-40S, DMF-ZM-40S, DMF-ZF-40S, and other type 1.5 inch pulse valve, with good function and long term working life.
Quick details:
1, material: NBR or Viton or customized
2, Center to center distance for mounting is 98mm
3, Mounting hole number: 6pcs
4, Mounting hile ID: 8.5mm
5, Working medium: clean air
6, Working life: over 1 million times or at least 2 years
Application of diaphragm example:
Diaphragm has been widely used in automobiles, controllers, household gas facilities and appliances the form of pressure sensors, actuators ON-OFF switches.
If you need other kinds of diaphragm, we highly welcome your drawing or sample, we can develop for you to satisfy all your requirements.

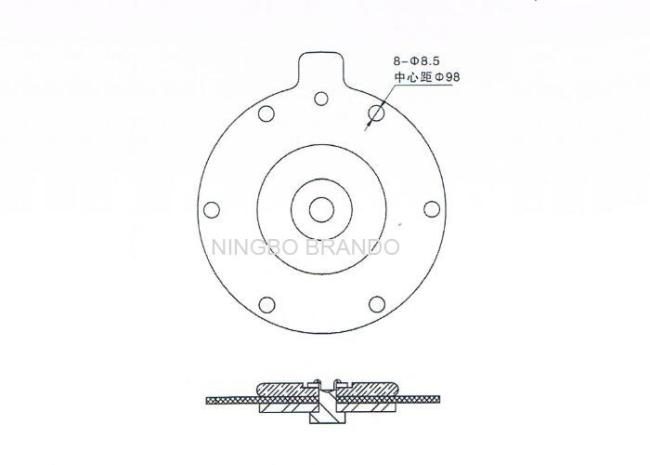

Overall diemsnions of D40 diaphragm for DMF-Z-40S DMF-Y-40S DMF-ZM-40S DMF-ZF-40S pulse valve:
More pulse valve diaphragm we have, pls contact us:
 |
Model Number | D40 | Diaphragm application pulse valve |
| Can be used for | DMF-Z-40S DMF-Y-40S DMF-ZM-40S DMF-ZF-40S |  |
|
| Center distance | 98mm | ||
| Outside diameter | / | ||
| Mounting hole number | 6 | ||
| Working temperature | -20~80℃ | ||
| Working pressure | 0.2Mpa~0.6Mpa | ||
| Working medium | clean air | ||
| Working life | More than 1 million times or at least 2 years |
 |
Model Number | D25 | Diaphragm application pulse valve |
| Can be used for | DMF-Z-25 DMF-Y-25 DMF-ZM-25 DMF-ZF-25 |  |
|
| Center distance | 83mm | ||
| Outside diameter | / | ||
| Mounting hole number | 5 | ||
| Working temperature | -20~80℃ | ||
| Working pressure | 0.2Mpa~0.6Mpa | ||
| Working medium | clean air | ||
| Working life | More than 1 million times or at least 2 years |
 |
Model Number | D20B | Diaphragm application pulse valve |
| Can be used for | DMF-ZL-B |  |
|
| Center distance | 74mm | ||
| Outside diameter | / | ||
| Mounting hole number | 6 | ||
| Working temperature | -20~80℃ | ||
| Working pressure | 0.2Mpa~0.6Mpa | ||
| Working medium | clean air | ||
| Working life | More than 1 million times or at least 2 years |

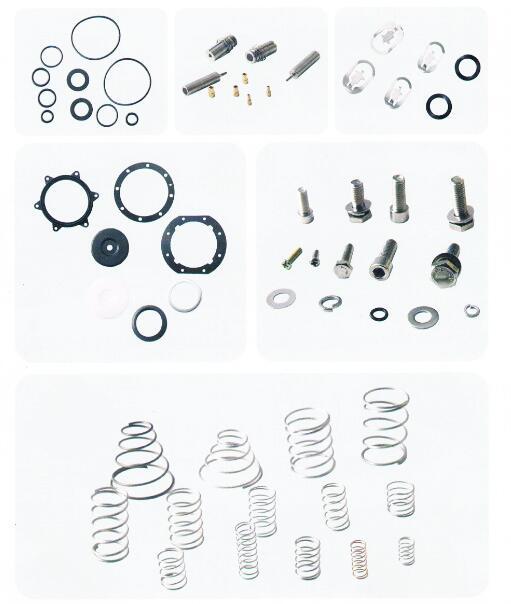

Welcome your any question, we also produce and supply other kits for all brands pulse valve:
