MP-C-165 ASCO Type Solenoid Coil 12VDC 24VDC 24VAC 110VAC 220VAC
MP-C-165 ASCO Type Solenoid Coil 12VDC 24VDC 24VAC 110VAC 220VAC
This solenoid coil is same with ASCO solenoid coil MP-C-165, it is popularly used in many ASCO solenoid valves. Solenoid coil standard voltage is 12VDC, 24VDC, 48VDC, 110VDC, 24VAC, 48VAC, 110VAC, 220VAC. Solenoid coil standard power is 2.5W, 4W, 6.3W, 6.9W. Reference Number: 400127-181, 400127-185, 400127-198, 400127-197, 400127-141, 400127-142, 400127-144, 400127-148, 400127-081, 400127-085, 400127-098 , 400127-097, 400127-091, 400904-541, 400904-542, 400904-544, 400904-548.

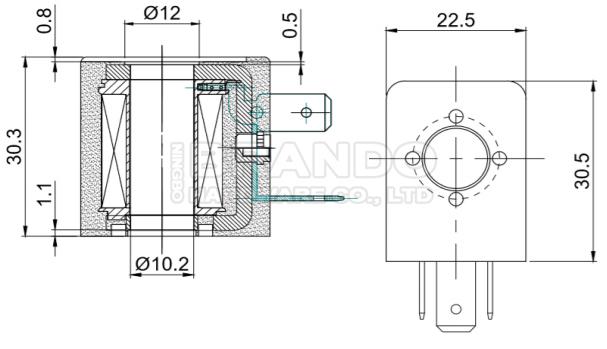

Dimension & Data of MP-C-165 Solenoid Coil, Armature:
|
BRANDO Model
|
BB10030018
|
|
Ordering Code
|
MP-C-165
|
|
Voltage
|
12VDC, 24VDC, 48VDC, 110VDC,
24VAC, 48VAC, 110VAC, 220VAC
|
|
Power
|
2.5W, 4W, 6.3W, 6.9W
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650B
|
|

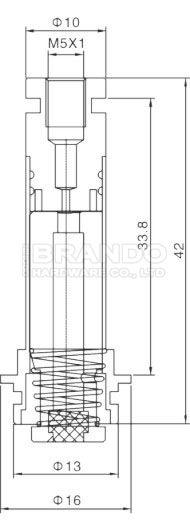

BRANDO Model
|
BAPC310033814
|
|
Function
|
3 Way Normally Closed
|
|
Plunger Tube Material
|
Brass
|
|
Moving Core Material
|
430FR
|
|
Shading Ring Material
|
Copper
|
|
Seal Material
|
NBR
|
|
Connection Type
|
Flange
|
Video of Solenoid Valve Coil MP-C-165:
BRANDO Solenoid Valve Coils Production Video:

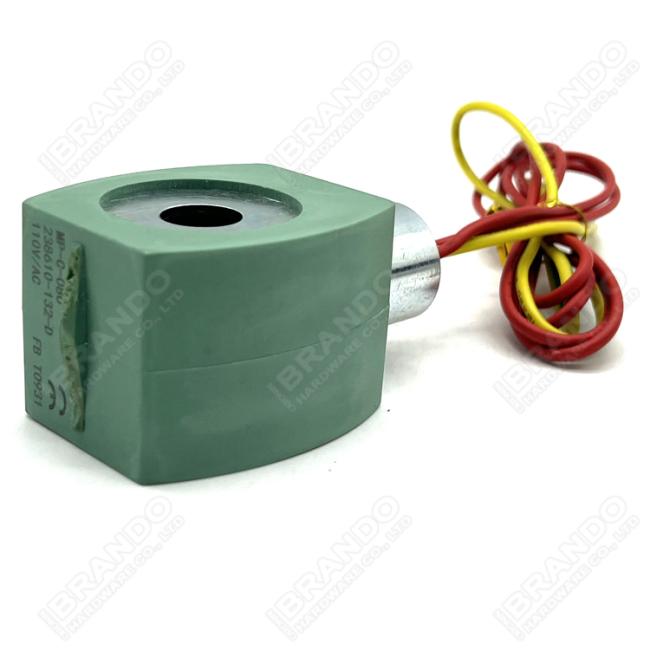

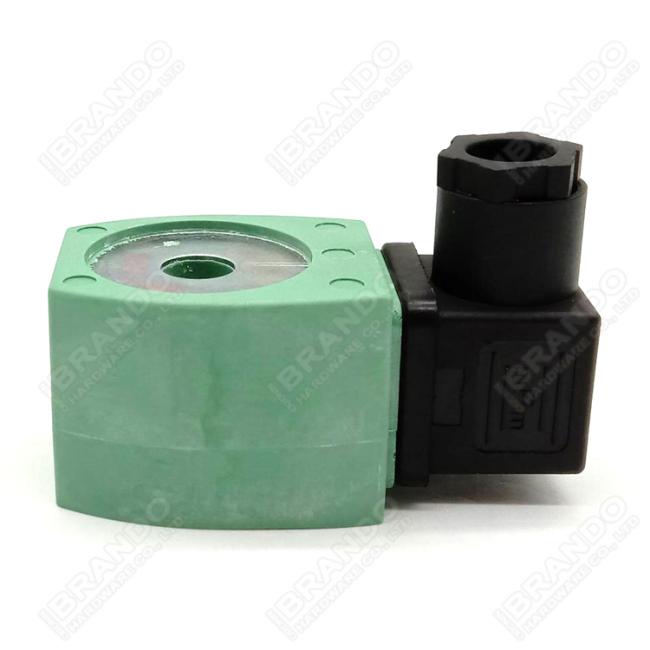

More ASCO Type Solenoid Coils for you to choose:
 |
 |
 |
 |

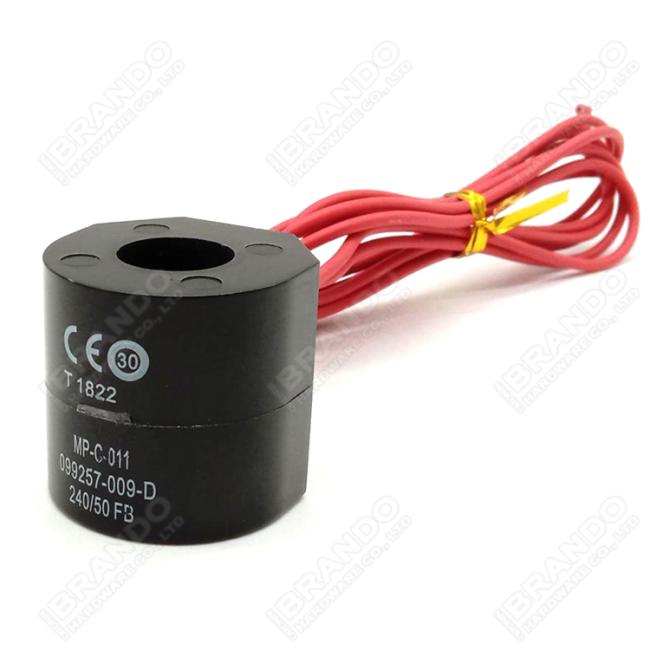

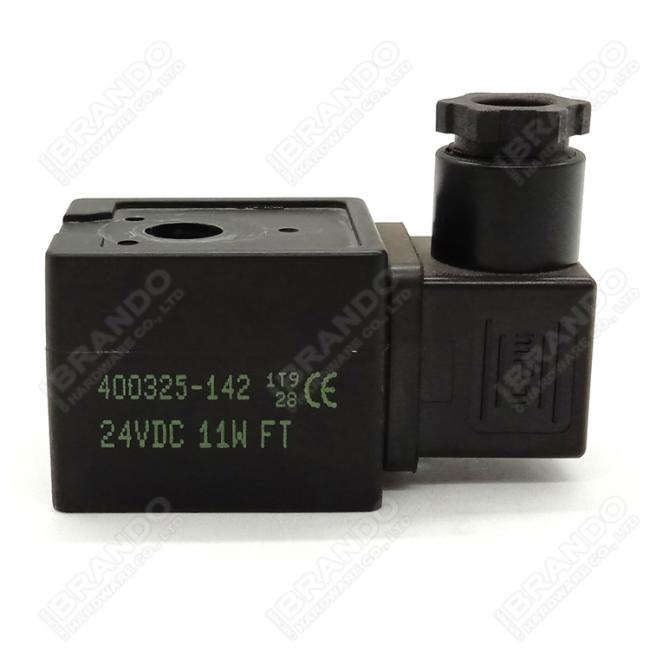

| MP-C-146 | MP-C-080 | MP-C-011 | 400325, 400425 |
