24VDC 11.2W 400425-142 Solenoid Coil For ASCO Dust Collector Pulse Valve

This is a solenoid coil for asco pulse valve SCG353A047, SCG353A050, SCG353A051; ordering code: 400425-142, 400425-117; voltage: 24VDC, 220VAC; power: 9.5W, 10.5W, 11.2W; insulation class: H, F; temperature class: T, B, F; connector type: DIN 43650 Form A.

Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Ordering Code of Solenoid Valve Coil:

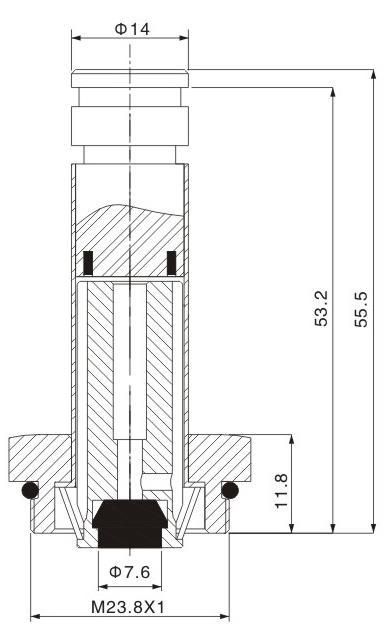

Dimension & Data of Solenoid Coil, Armature for ASCO Pulse Valve:

Video of 400425-142, 400425-117 Solenoid Coil:

BRANDO Solenoid Valve Coils Production Video:

More ASCO Type Pulse Valves for you to choose:

Threaded Type	Remote Pilot Type	Straight Through Type	Submerged Type
Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
