Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting Low Power Consumption 1 1/4 Inch Port Size Nominal Diameter DN35 Orifice 35mm Steam Solenoid Valve 2W35-35
low price 220V 2W series electric solenoid water valve 2W350-35
Feature of electric solenoid water valve
1. Direct Acting
2. Have both Normally cosed and open
3. Fit for Air, water.
4. Port size: BSPT 1-1/4"
5. Voltages: DC12V, 24V, AC110v, 220V, 380V
6. Thread connection: BSPT, BSPP or NPT.
7. Large flow.
Electric solenoid water valve 2W350-35 Characteriscs
1. Valve body material: brass
2. Port size: 1-1/4"
3. MOQ=1
4. The direct-acting type diaphragm structure without pressure to open to extend the using field.
5. Have DIN43650A, water proof, explosion proof solenoid valves coils to meet the different working environment.
Specifications of Solenoid Valve 2W350-35:
|
Product Description
|
electric solenoid water valve
|
|
Fluid
|
air, water
|
|
Port size
|
1/8"~2"
|
|
Fluid pressure
|
0~10 bar
|
|
Diaphragm material
|
NBR, EPDM, Silicon or Viton
|
|
Power
|
DC 18W, AC18VA
|

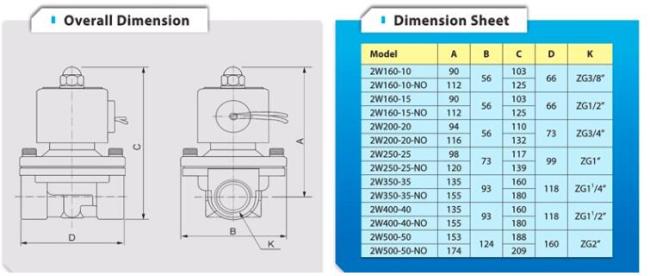

Overall Dimensions of Electromagnetic Valve 2W350-35:
Quality Principle:
1. We have the strict material purchasing management system to make sure all materials are good.
2. High quality and advanced machines to make sure all the dimensions are accurate.
3. 100% quality test to make sure every product in good performance.
4. Standard export packing to protect the goods in shipment.
5. Fast response to your inquiry.
Packaging:
Pls contact us if you have any requirement.
