Normal Closed Pneumatic Solenoid Valve 3/4" Inches For Water Industry 2S-200-20
Normal Closed 3/4" Inches Pneumatic Solenoid Valve For Water Industry 2S-200-20
2S-200-20 AC220V voltage is an electromagnetic valve, stainless steel, aluminum alloy, appropriate is used in the field of circulation time longer control, adopting direct acting diaphragm structure, to ensure that often open the electromagnetic valve in the pressure condition is safe to start, many kinds of coil and the material selection can provide the ideal product for the customer, the body is made of stainless steel, corrosion resistant function. Large flow, simple structure, easy maintenance.
Technical data:
| Model | 2S030-06 | 2S050-10 | 2S160-15 | 2S200-20 | 2S-250-25 | 2S-350-35 | 2S-500-50 |
| Working medium | Gas,Air,Water,Oil,Steam | ||||||
| Operating pattern | Direct Drive | ||||||
| Type | Normally closed type | ||||||
| pipe size | 1/8” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4” | 2” |
| Operation fluid viscosity | below 20cst | ||||||
| Voltage range | +- 10 percent | ||||||
| Temperature | -5-80℃ | ||||||

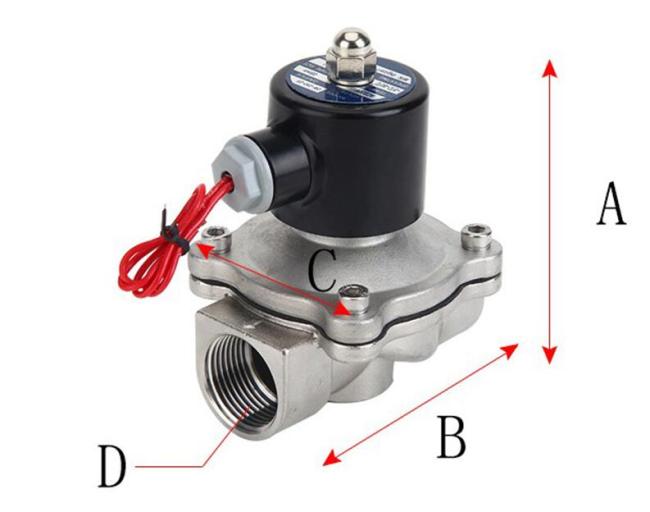

Dimensions Pohoto:
| Model | A | B | C | D |
| 2S-160-10 | 84 | 43 | 22 | 15.5 |
| 2S-160-15 | 111 | 69 | 57 | 19.5 |
| 2S-200-20 | 116 | 73 | 57 | 24 |
| 2S-250-25 | 123 | 99 | 71 | 30.5 |
| 2S-350-35 | 132 | 116 | 88 | 39.5 |
| 2S-400-40 | 170 | 122 | 94 | 46.5 |
| 2S-500-50 | 185 | 166 | 123 | 56.5 |

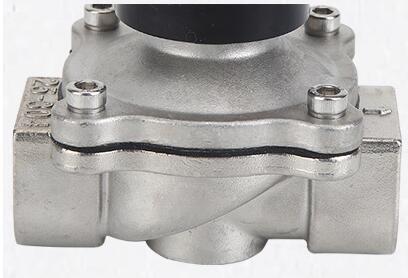

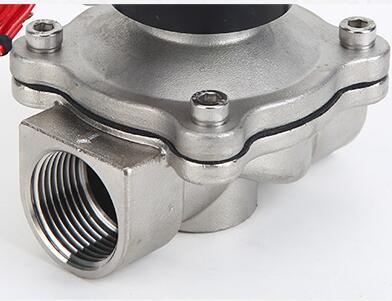

Detail:

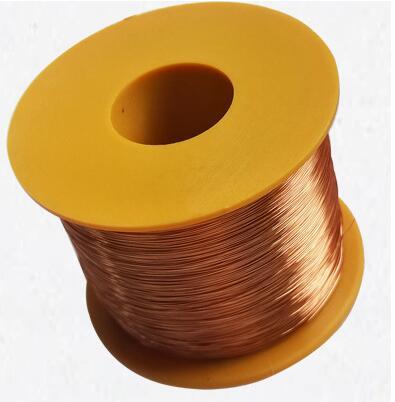

Brass coil is made to produce more stable magnetism and improve the accuracy of the switch
1. Please refer to the user manual of the product before installation to see whether it meets your requirements.
2, the pipeline should be cleaned before use, medium is not clean should be installed filter, to prevent impurities interfere with the normal work of the solenoid valve.
3, the solenoid valve is generally one-way work, can not be installed, the arrow on the valve is the direction of the movement of the pipeline fluid, must be consistent.
4, solenoid valve installation of the general body horizontal, vertical upward coil, some products can be installed arbitrarily, but when the conditions allow the best vertical, in order to increase the service life.
5. When the solenoid valve reworks in the frozen place, it shall be heated or heat preservation measures shall be set.
6. After the lead wire of the electromagnetic coil (connector) is connected, it shall confirm whether it is firm or not. The contact point of the
connecting electrical element shall not shake.
7, continuous production to work of the solenoid valve, the best use of bypass, facilitate maintenance, do not affect production.
8. The solenoid valve after a long period of service shall be used only after the condensate is removed; When unassembling and washing, all parts should be put in order and then restored to their original state.
9, there are unknown, please contact us, dedicated to your service.
